Lovato GAZ063UL Switch Disconnector 63A

Product Description

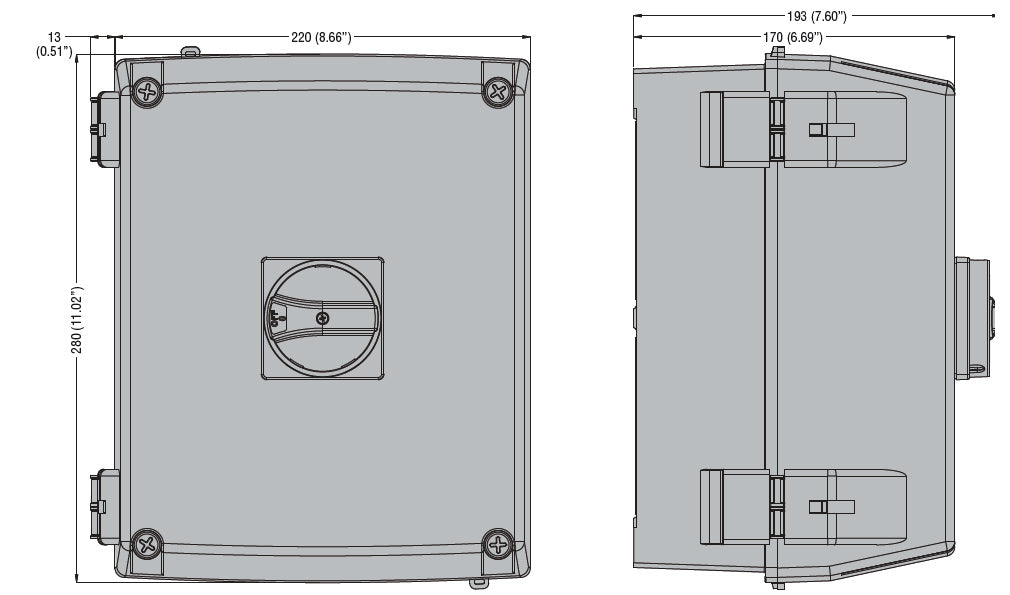

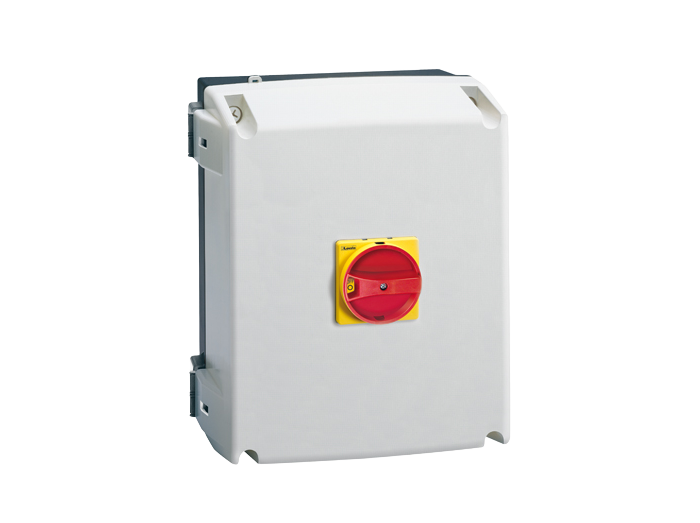

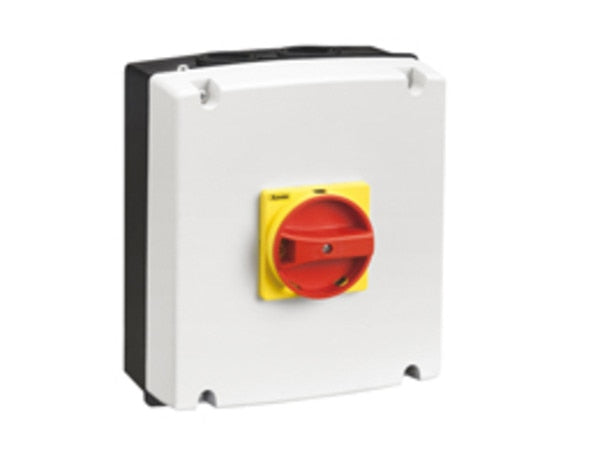

The Lovato GAZ063UL is a UL/CSA type 4/4X non-metallic enclosed switch disconnector. This three-pole switch features a rotating red/yellow handle and a 63A current rating. It is designed for safety and reliability in various industrial applications.

• UL/CSA type 4/4X non-metallic enclosed switch disconnector
• Three-pole design
• Features a rotating red/yellow handle

Product Highlights

The Lovato GAZ063UL switch disconnector ensures reliable performance with its robust construction and safety features.

Product Information

Standard Information

• Brand: LOVATO
• Manufacturer Part Number: GAZ063UL
• Country of Origin: Canada

Technical Specifications

• Product designation: Enclosed switch disconnector
• Product type designation: GAZ
• Number of poles: 3
• Operating voltage type: AC
• IEC Conventional free air thermal current Ith ≤ 40°C: 63 A
• Rated insulation voltage Ui IEC/EN: 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400V: 63 A
• Operating current Ie AC21A 500V: 63 A
• Operating current Ie AC21A 690V: 63 A
• Operating current Ie AC22A 400V: 63 A
• Operating current Ie AC22A 500V: 63 A
• Operating current Ie AC22A 690V: 63 A
• Operating current Ie AC23A 400V: 63 A
• Operating current Ie AC23A 500V: 63 A
• Operating current Ie AC23A 690V: 47 A
• Power dissipation per pole max: 1.6 W
• Rated operational power AC23A 400V: 30 kW
• Rated operational power AC23A 690V: 45 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection with fuse: gG63 Class/A
• Making capacity AC23A 400V: 630 A
• Breaking capacity AC23A 400V: 504 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 30000 cycles
• Operating position: normal
• Vertical plan allowable: Any
• Terminals type: Pillar
• Terminals width: 12.4 mm
• Terminals height: 10.4 mm
• Terminals screw: M8
• Terminals tool: Metric Allen key 4
• Tightening torque for terminals min: 5 Nm
• Tightening torque for terminals max: 6 Nm
• Conductor section IEC min: 4 mm²
• Conductor section IEC max: 70 mm²
• AWG/kcmil min: 12
• AWG/kcmil max: kcmil 1
• General purpose current rating: 60 A
• Operating voltage max: 600 V
• Horsepower/FLA current single phase motor 120V: 3/34 HP/A
• Horsepower/FLA current single phase motor 240V: 7,5/40 HP/A
• Horsepower/FLA current three phase motor 240V: 20/54 HP/A
• Horsepower/FLA current three phase motor 480V: 40/52 HP/A
• Horsepower/FLA current three phase motor 600V: 40/41 HP/A
• Short circuit rating: 50 kA rms
• Short circuit rating with fuse: J/60 Class/A
• Operating temperature min: -25 °C
• Operating temperature max: +55 °C
• Storage temperature min: -40 °C
• Storage temperature max: +70 °C
• Max altitude: 3000 m
• Frontal IP degree: IP65
• UL degree of protection: UL/CSA Type 4/4X
• IP degree of protection: IP65
• Pollution degree: 3
• ETIM 8.0: EC000216 - Switch disconnector
• Type of product: Switch disconnectors
• Type of enclosure: Plastic enclosure - Red/Yellow handle
• Type of operating voltage: AC
• IEC Conventional free air thermal current Ith [A]: 63
• Type of installation: Enclosed
• Brand: LOVATO Electric
• Component Type: Switch Disconnect
• Amperage: 63A
• Current Rating: 63 A
• Manufacturer Part Number: GAZ063UL
• Numeric ID: 4079255
• Series: GA Series
• Manufacturer: Lovato
• Family Series: Lovato Disconnect Switches
• Description: Disconnect Switch, 3-P, 63A, N4X, Non-Fusible, UL98 Listed, Red/Ylw Handle, Non-Metallic Enclosure
• Poles: 3
• AC Voltage: 600 VAC
• Operator Type: Selector - Red, Yellow
• Mounting: Wall
• Enclosure Composition: Non-Metallic
• Protection Rating: IP65
• Approvals: cULus, EAC
• Net Weight: 5.34 lbs
• Gross Weight: 5.875 lbs
• MFR #: GAZ063UL
• Zoro #: G922708814
• UPC #: -
• Country of Origin: Italy
