Lovato GAZ016UL Switch Disconnector 16A

Brand: LOVATO
SKU: GAZ016UL
Availability: In Stock

Ships same day if ordered by 12 pm
$158.04
$158.04
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

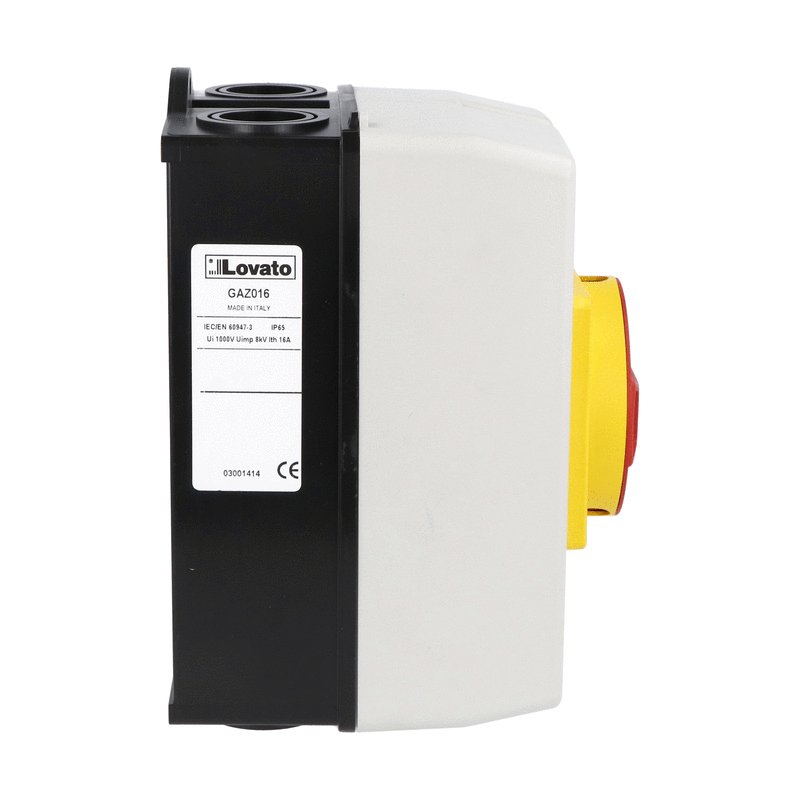

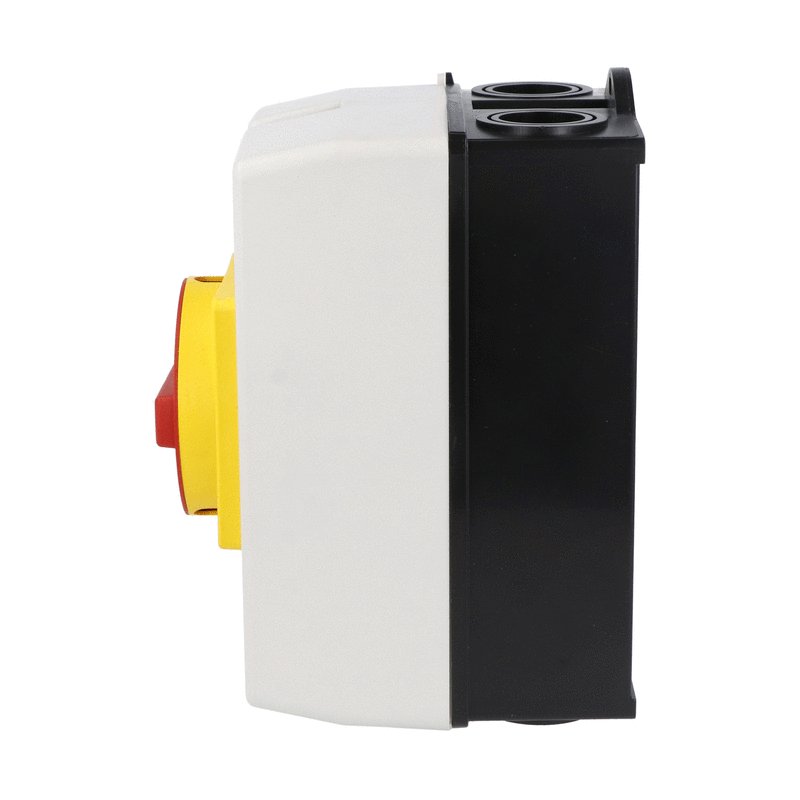

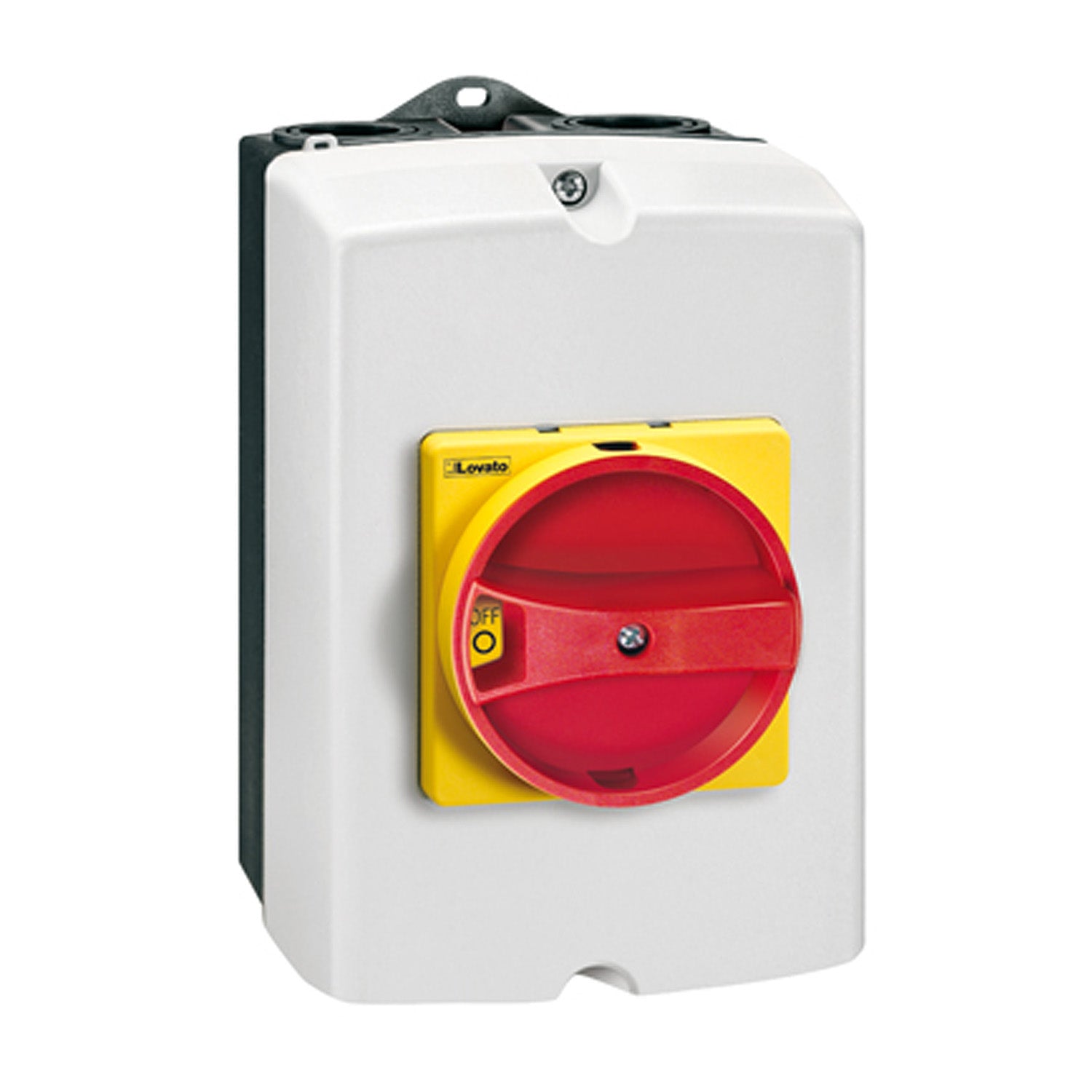

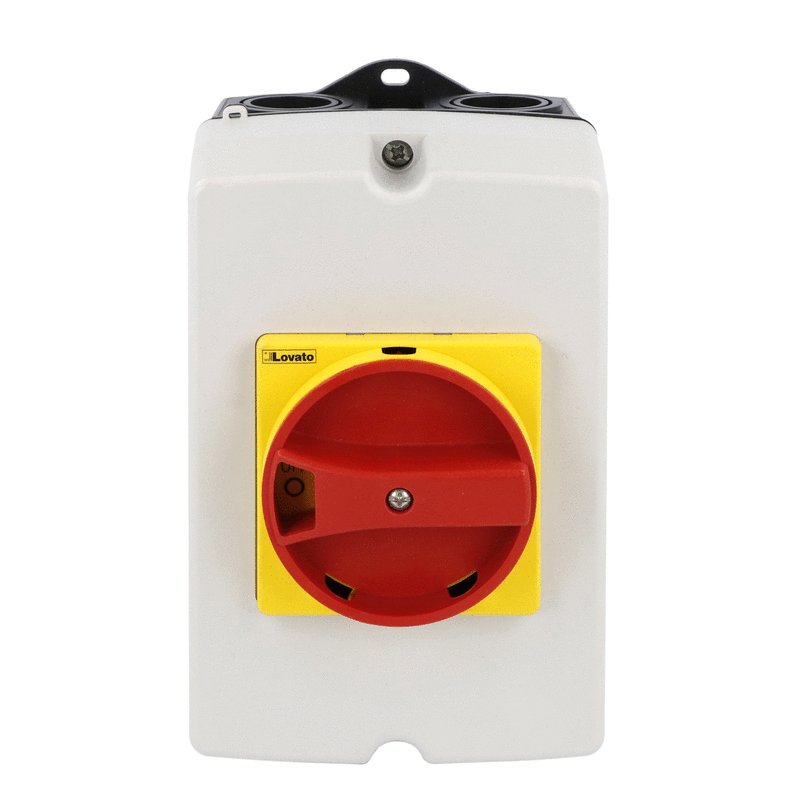

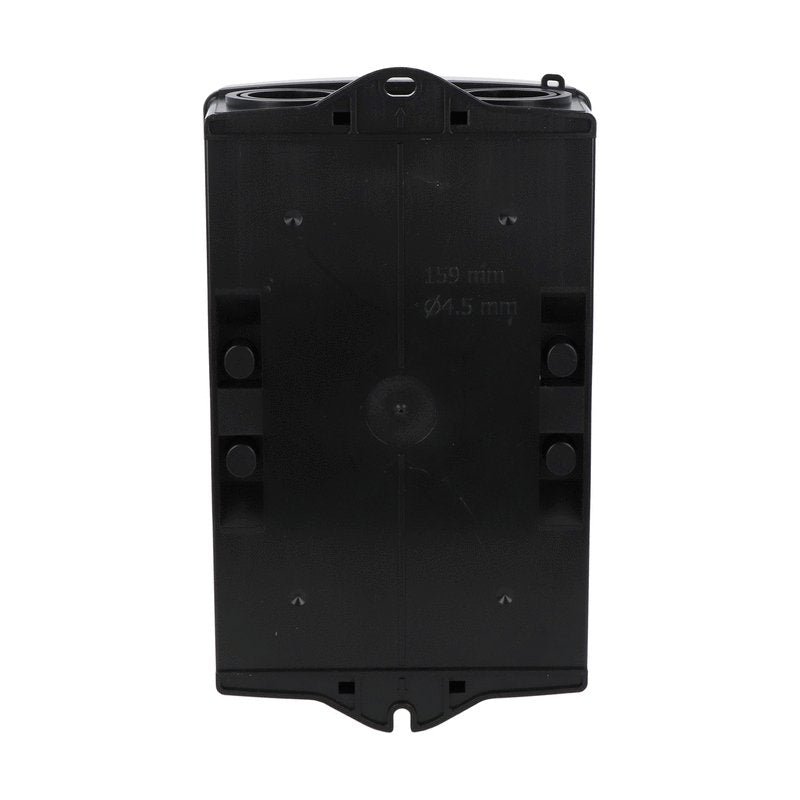

The LOVATO GAZ016UL is a UL/CSA type 4/4X plastic enclosured switch disconnector with three-pole and a rotating red/yellow handle, rated at 16A. Enclosure dimensions: 100x168x97mm/3.9x6.6x3.8''. It is UL and CSA certified and has multiple certifications. It is suitable for various applications requiring a reliable and safe disconnection solution.

  • UL/CSA type 4/4X plastic enclosured switch disconnector
  • Three-pole
  • Rotating red/yellow handle
  • 16A

Product Highlights

The LOVATO GAZ016UL is a reliable and safe switch disconnector with multiple certifications.

Product Information

Standard Information

  • Brand: LOVATO
  • Manufacturer Part Number: GAZ016UL
  • Country of Origin: Canada
Technical Specifications
Product designation
Enclosed switch disconnector
Product type designation
GAZ
Number of poles
3
Operating voltage type
AC
IEC Conventional free air thermal current Ith ≤ 40°C
16 A
Rated insulation voltage Ui IEC/EN
1000 V
Rated impulse withstand voltage Uimp
8 kV
Operating current Ie AC21A 400V
16 A
Operating current Ie AC21A 500V
16 A
Operating current Ie AC21A 690V
16 A
Operating current Ie AC22A 400V
16 A
Operating current Ie AC22A 500V
16 A
Operating current Ie AC22A 690V
16 A
Operating current Ie AC23A 400V
16 A
Operating current Ie AC23A 500V
16 A
Operating current Ie AC23A 690V
16 A
Power dissipation per pole max
0.2 W
Rated operational power AC23A 400V
7.5 kW
Rated operational power AC23A 690V
11 kW
Conditional short-circuit current (rms)
10 kA
Short-circuit protection with fuse
gG16 Class/A
Making capacity AC23A 400V
160 A
Breaking capacity AC23A 400V
128 A
Mechanical life
100000 cycles
Electrical life AC21A
100000 cycles
Operating position
normal Vertical plan
Terminals type
Pillar
Terminals width
5.6 mm
Terminals height
6.5 mm
Terminals screw
M4
Terminals tool
Phillips 2
Tightening torque for terminals min
1.8 Nm
Tightening torque for terminals max
2 Nm
Tightening torque for terminals min Ibin
16 Ibin
Tightening torque for terminals max Ibin
18 Ibin
Conductor section IEC min
0.75 mm²
Conductor section IEC max
16 mm²
AWG/kcmil min
18 AWG/kcmil
AWG/kcmil max
6 kcmil
General purpose current rating
16 A
Operating voltage max
600 V
Horsepower/FLA current single phase motor 120V
1/16 HP/A
Horsepower/FLA current single phase motor 240V
2/12 HP/A
Horsepower/FLA current three phase motor 200-208V
5/17.5 HP/A
Horsepower/FLA current three phase motor 240V
5/15,2 HP/A
Horsepower/FLA current three phase motor 480V
10/14 HP/A
Horsepower/FLA current three phase motor 600V
10/11 HP/A
Short circuit rating
5 kA rms
Short circuit rating with fuse
RK5/30 Class/A
Operating temperature min
-25 °C
Operating temperature max
+55 °C
Storage temperature min
-40 °C
Storage temperature max
+70 °C
Max altitude
3000 m
Frontal IP degree
IP65
UL degree of protection
UL/CSA Type 4/4X
IP degree of protection
IP65
Pollution degree
3
ETIM 8.0
EC000216 - Switch disconnector
Brand
LOVATO ELECTRIC
Amperage
16A
Number Of Poles
3
Component Type
Switch Disconnect
Current Rating
16 A
Manufacturer Part Number
GAZ016UL
Series
GA Series
Manufacturer
Lovato
Product Series
GA
Family Series
Lovato Disconnect Switches, GA Series
Description
Disconnect Switch, 3-P, 16A, N4X, Non-Fusible, UL508 Listed, Red/Ylw Handle
Poles
3
NEMA Rating
NEMA 4, NEMA 4X
AC Voltage
600 VAC
Operator Type
Selector - Red, Yellow
Enclosure Composition
Non-Metallic
Approvals
CSA, UL
Net Weight
1.175 lbs
Gross Weight
1.175 lbs
Model
GAZ016UL
Country of Origin
Italy
