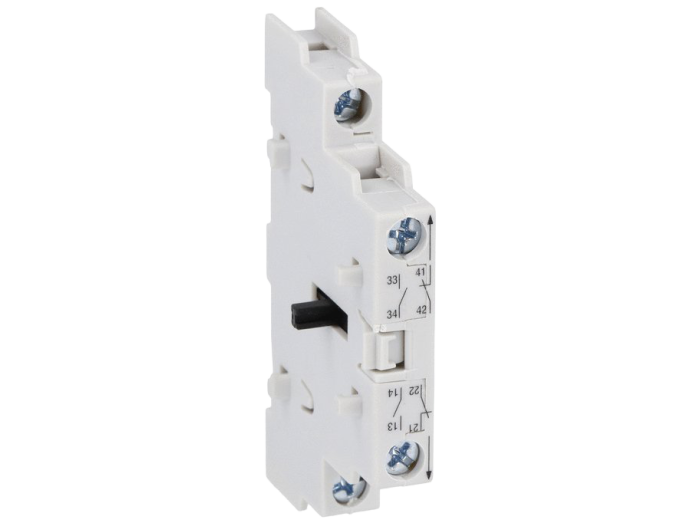

Lovato GAX1011A Auxiliary Contact 1NO+1NC

Product Description

The LOVATO GAX1011A is an auxiliary contact with simultaneous operation as switch poles, featuring 1NO+1NC contact configuration. Designed for use with GA series devices, this auxiliary contact is suitable for GA...A, GA063SA and GA...D. It is also suitable for photovoltaic applications.

• Simultaneous operation as switch poles
• 1NO+1NC contact configuration
• For use with Lovato GA Series Switch Disconnectors

Product Highlights

Auxiliary contact for use with Lovato GA Series Switch Disconnectors, featuring 1NO-1NC contact configuration and screw terminals.

Product Information

Standard Information

• Brand: LOVATO
• Manufacturer Part Number: GAX1011A
• Country of Origin: ITALY

Technical Specifications

• Product designation: Auxiliary contact 1NO+1NC, simultaneous closing as poles of switch disconnector
• Product type designation: GAX1011A
• Number of poles: 1
• Contact characteristics: IEC Conventional free air thermal current Ith ≤ 40°C
• IEC Conventional free air thermal current Ith ≤ 40°C: 10 A
• Mechanical life: 100000 cycles
• Fixing: Side mounting
• Tightening torque for terminals max: 0.8 Nm
• Tightening torque for terminals min: 7.1 Ibin
• Weight: 30 g
• ETIM classification: ETIM 8.0
• ETIM 8.0: EC000041 - Auxiliary contact block
• UNSPSC Code: 39120000
• Accessory Type: Auxiliary Contact
• Brand: LOVATO Electric
• Manufacturer Part Number: GAX1011A
• Unit of Measure: EA
• For Use With: Lovato GA Series Switch Disconnectors
• Auxiliary Contact Configuration: 1NO-1NC
• Auxiliary Contact Terminals: Screw
• Product Range: GA Series
• Component Type: Auxiliary Contact
• Manufacturer: Lovato
• Family Series: Lovato Miscellaneous
• Description: Aux.Contact 1-N/O/1-N/C-Direct/Door Coupling
• Net Weight: 0.0882 lbs
• Gross Weight: 0.0882 lbs
