Product Description

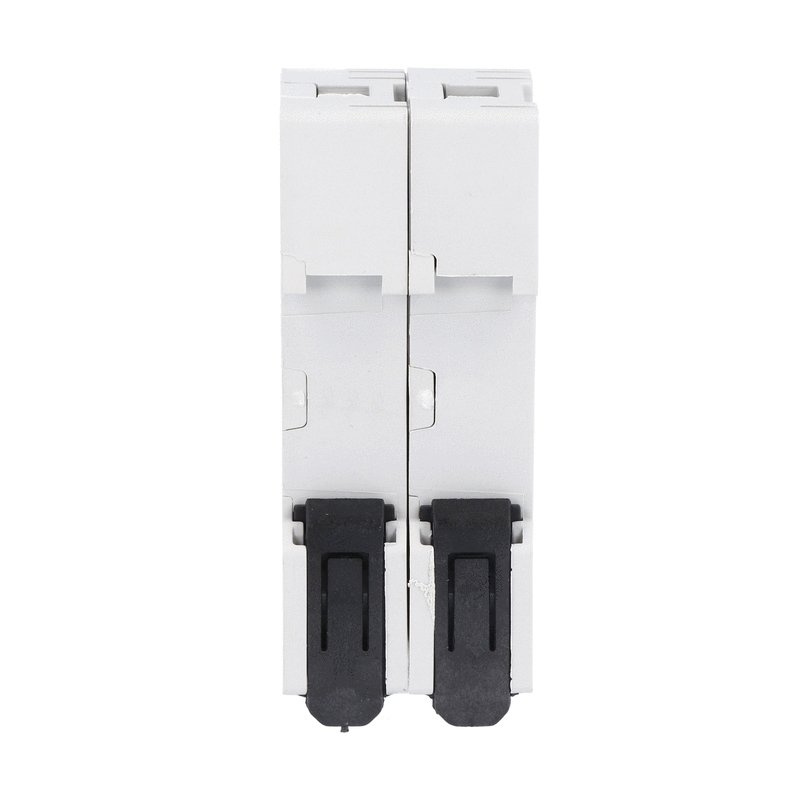

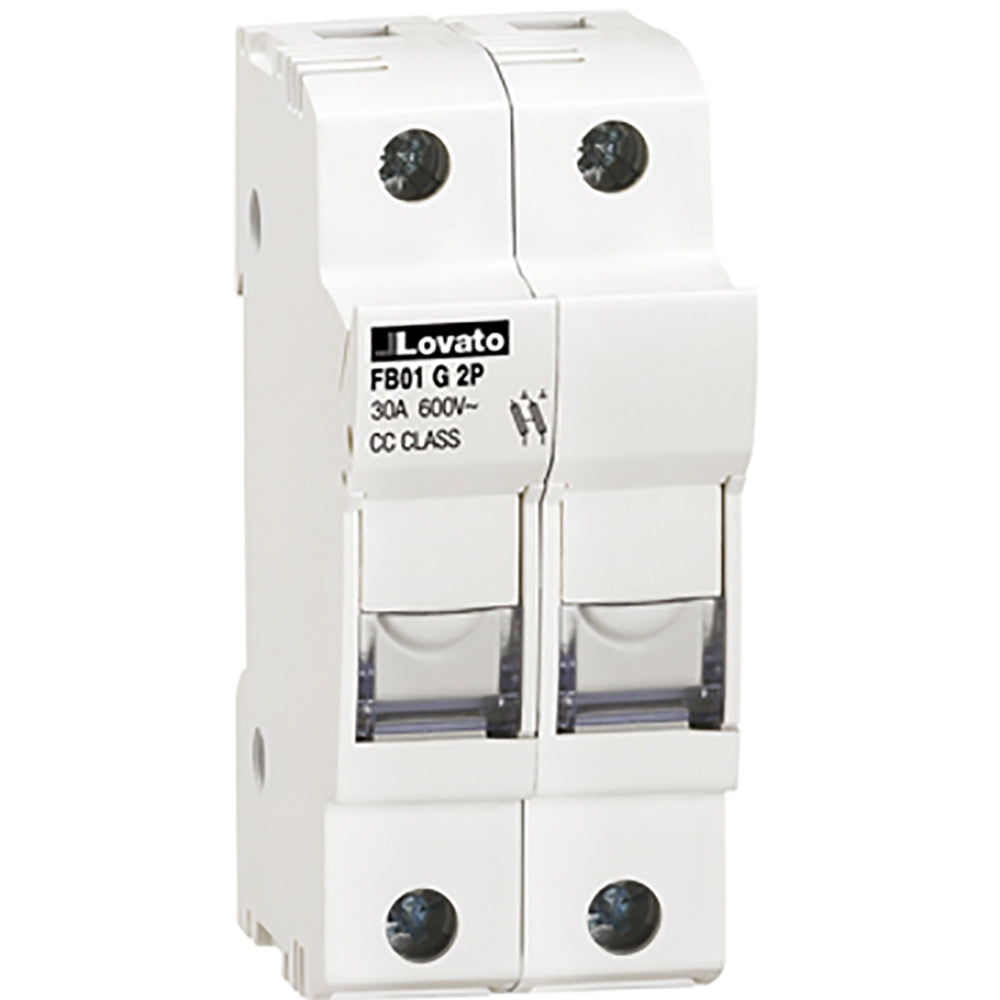

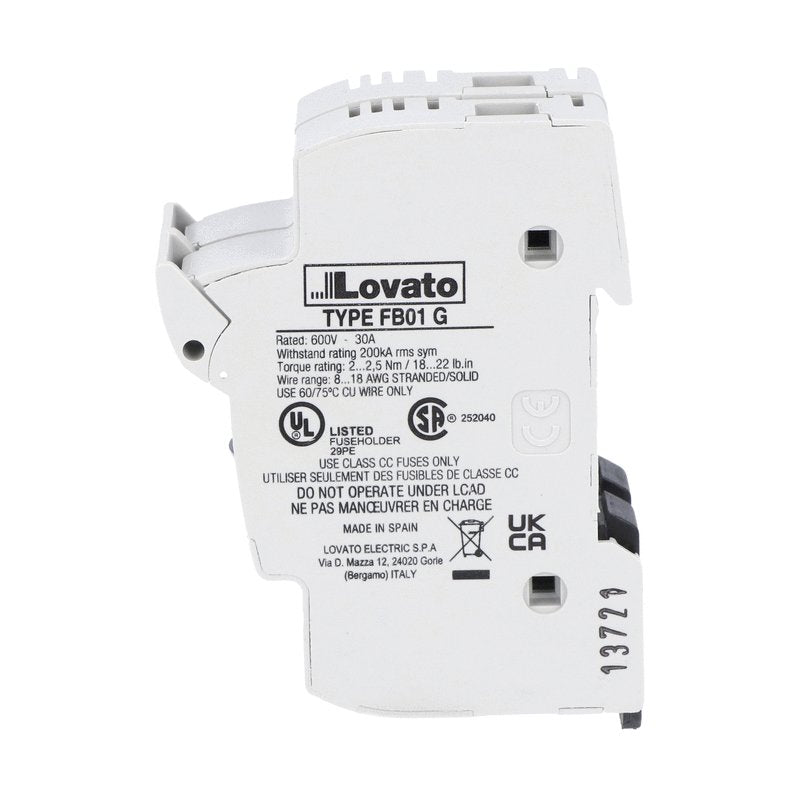

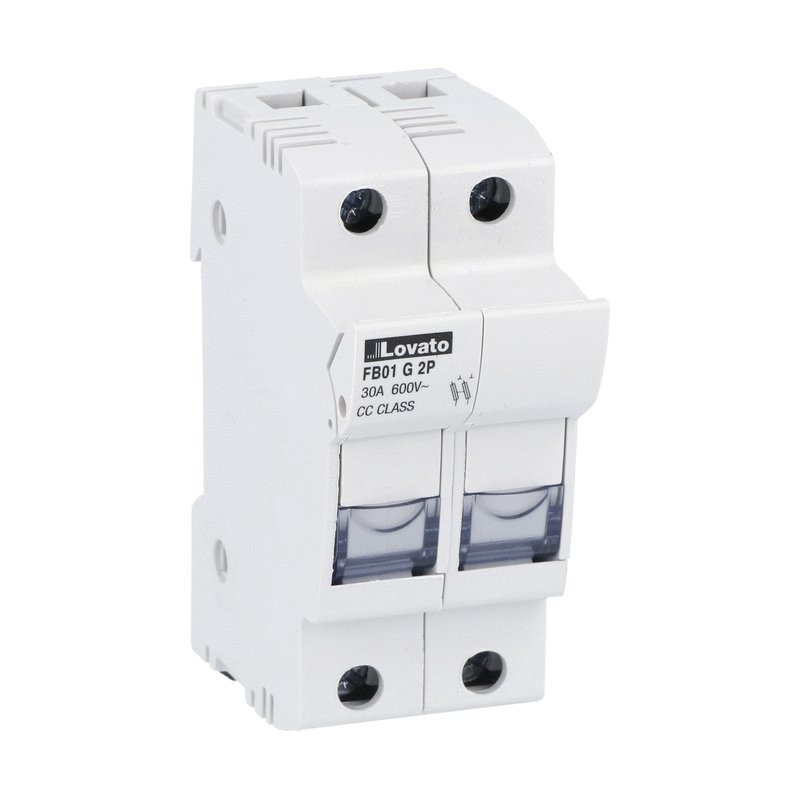

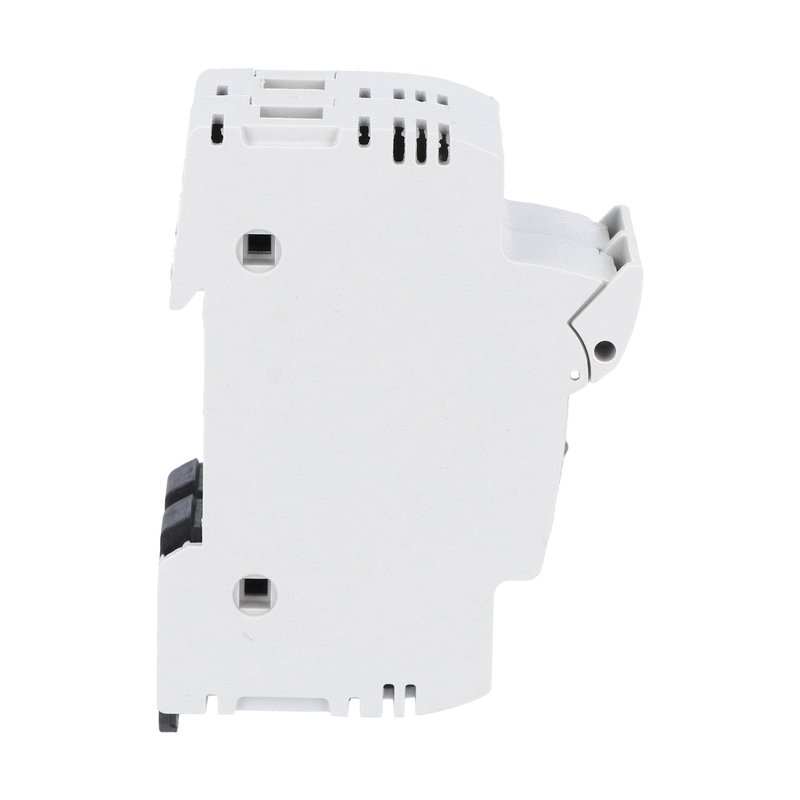

The Lovato FB01G2P is a two-pole fuse holder designed for 10 x 38 mm class CC cylindrical fuses. It mounts on a 35 mm DIN rail, occupies 2 DIN modules, and is rated for 30 A with IEC rated voltage 600 V and utilization up to 690 VAC. The unit provides IP20 frontal protection, screw terminal connections, and carries UL and EAC conformity for control and motor protection applications.
- Two-pole (2P) DIN-rail fuse holder for 10 x 38 mm class CC fuses; occupies 2 DIN modules
- Rated current 30 A; IEC rated voltage 600 V with utilization up to 690 VAC (IEC utilization category AC21B/AC22B)
- IP20 frontal protection, screw terminal connections, no status indicator; UL and EAC certified
Product Highlights
2-pole DIN-rail fuse holder for 10x38 mm fuses, 30 A, up to 690 VAC utilization, IP20, UL/EAC certified
Product Information
Standard Information
-
Brand: LOVATO
-
Manufacturer Part Number: FB01G2P
Technical Specifications
-
Brand: Lovato
-
Manufacturer Part Number: FB01G2P
-
Product Type: Fuse holder
-
Series: FB
-
Number of Poles: 2
-
Fuse Size: 10 x 38 mm
-
Fuse Type: Class CC (10 x 38 mm)
-
Rated Current: 30 A
-
Rated Voltage: 600 V (IEC); utilization up to 690 VAC (AC21B)
-
IEC Utilization Category: AC22B 500V - AC21B 690V
-
Power Dissipation Max: 3 W
-
Mounting Type: 35 mm DIN rail
-
Number of DIN Modules: 2
-
Connection Type: Screw terminal
-
Protection Degree: IP20 (frontal)
-
Status Indicator: No
-
Material: ABS / Plastic
-
Touch Safe: Yes
-
Operating Temperature Range: -20 to +70 °C
-
Storage Temperature Range: -40 to +80 °C
-
Operating Position: Normal vertical plane (allowable: any)
-
Max Altitude: 3000 m
-
Tightening Torque for Terminals: 2 - 2.5 Nm
-
Conductor Section Flexible Max (IEC): 16 mm²
-
Conductor Section Rigid Max (IEC): 16 mm²
-
Conductor Section Max (AWG/kcmil): 8
-
Weight: 124 g
-
ETIM Classification: EC002705 - Holder for cylindrical fuse
-
Certifications: UL, EAC, CSA
-
Conformity Standards: IEC/EN 60269-1; IEC/EN 60269-2; IEC/EN 60947-1; IEC/EN 60947-3; UL 4248-1; UL 4248-4; CSA C22.2 n°4248.1; CSA C22.2 n°4248.4
