Product Description

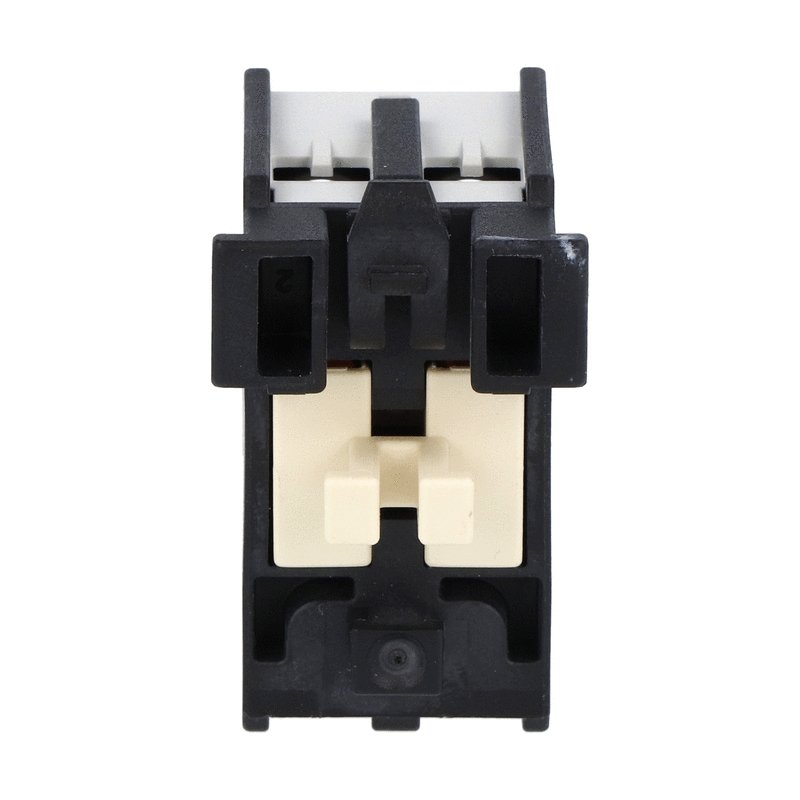

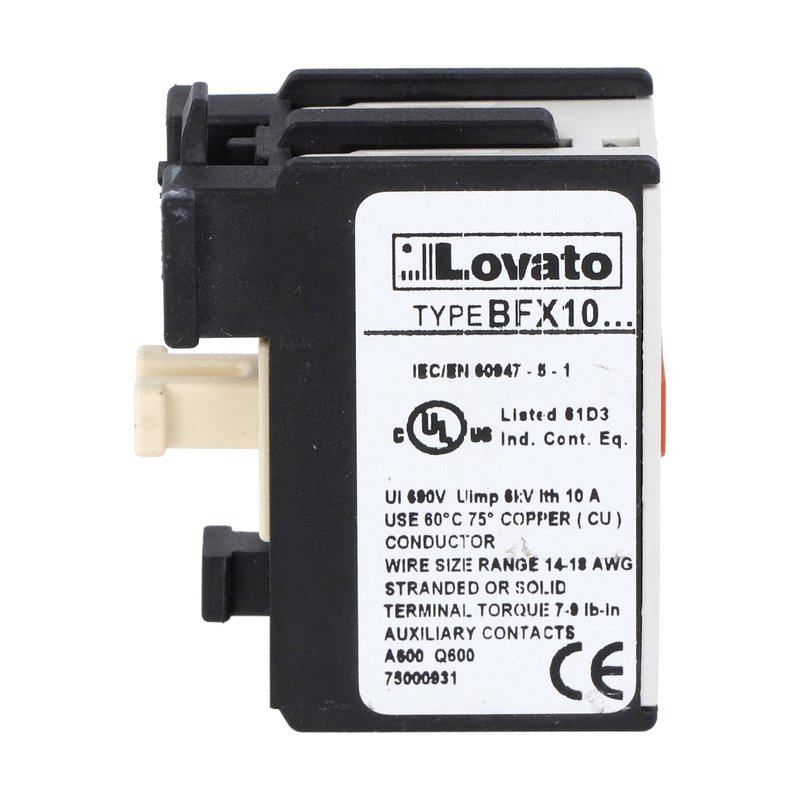

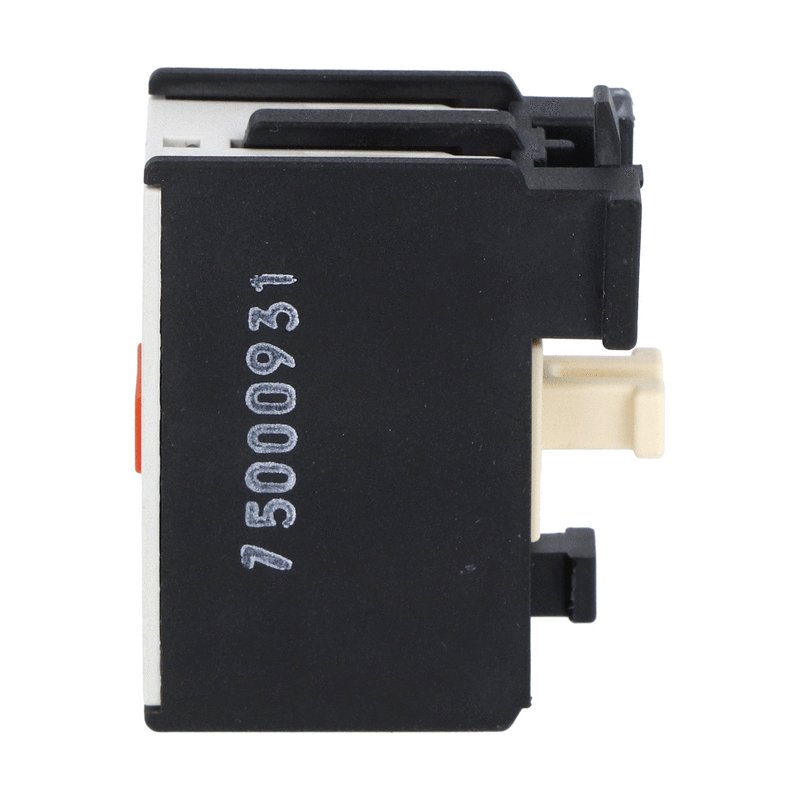

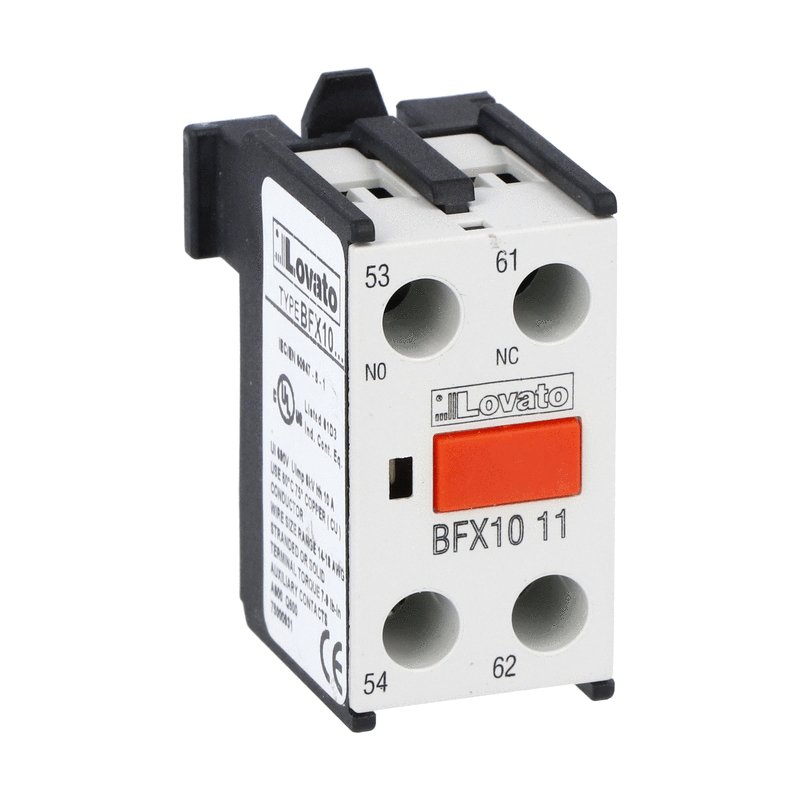

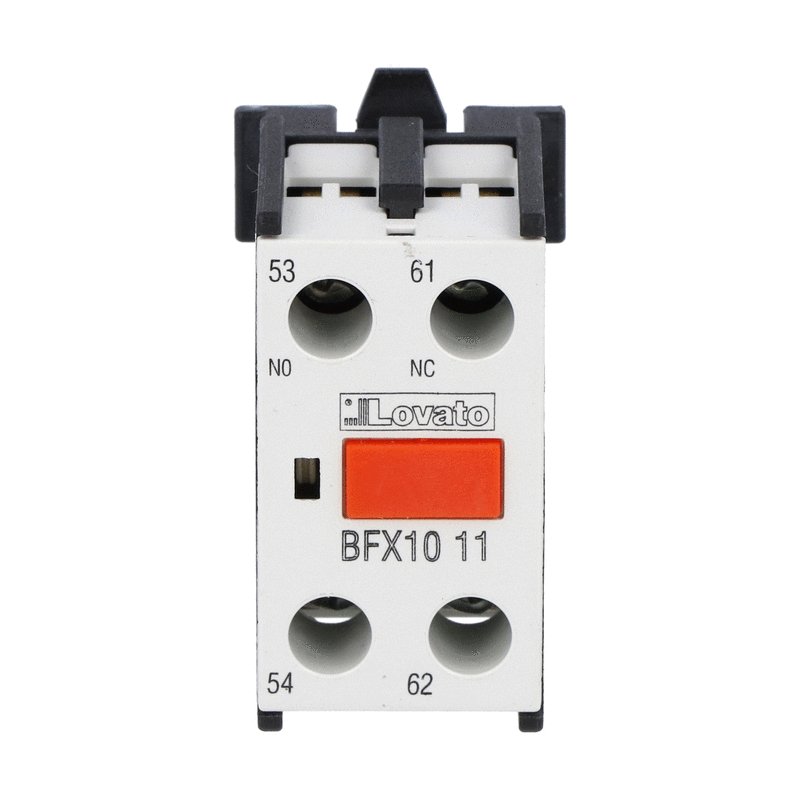

The LOVATO BFX1011 is an auxiliary contact with front centre mounting and screw terminals, designed for BF00, BF09...BF150 series contactors. It features a 1NO+1NC contact configuration, along with mirror and mechanically linked contact functions, providing reliable signaling and control in electrical circuits.
- Auxiliary contact with front centre mounting
- Screw terminals
- For BF00, BF09...BF150 series contactors
- 1NO+1NC contact configuration
Product Highlights
The Lovato BFX1011 auxiliary contact ensures reliable performance and easy integration for enhanced control in various applications.
Product Information
Standard Information
-
Brand: LOVATO
-
Manufacturer Part Number: BFX1011
-
Country of Origin: ITALY
Technical Specifications
-
Product designation: Auxiliary contact
-
Product type designation: BFX10
-
Number of poles: 2
-
Rated insulation voltage Ui IEC/EN: 690 V
-
Rated impulse withstand voltage Uimp: 6 kV
-
IEC Conventional free air thermal current Ith ≤ 40°C: 10 A
-
Tightening torque for terminals min: 0.8 Nm
-
Tightening torque for terminals max: 1 Nm
-
Max number of wires simultaneously connectable: 2
-
Conductor section max: 14 AWG/Kcmil
-
Flexible w/o lug conductor section min: 0.75 mm²
-
Flexible w/o lug conductor section max: 2.5 mm²
-
Flexible c/w lug conductor section min: 0.75 mm²
-
Flexible c/w lug conductor section max: 2.5 mm²
-
Flexible with insulated spade lug conductor section min: 0.75 mm²
-
Flexible with insulated spade lug conductor section max: 2.5 mm²
-
Operating position: normal On vertical plane
-
Operating position allowable: Any
-
Fixing: Front centre mounting
-
Type of contact: 1NO+1NC
-
Thermal current Ith: 10 A
-
IEC/EN 60947-5-1 designation: A600 - Q600
-
Operating current AC15 230V: 3 A
-
Operating current AC15 400V: 1.9 A
-
Operating current AC15 500V: 1.4 A
-
Operating current DC13 24V: 2.5 A
-
Operating current DC13 48V: 1.5 A
-
Operating current DC13 60V: 1.1 A
-
Operating current DC13 110V: 0.55 A
-
Operating current DC13 125V: 0.55 A
-
Operating current DC13 220V: 0.27 A
-
Operating current DC13 600V: 0.1 A
-
Mirror contats according to IEC/EN 609474-4-1 annex F: Yes
-
Mechanically linked contats according to IEC/EN 609474-5-1 annex L: Yes
-
Conductivity: 5V 10 mA
-
UL/CSA and IEC/EN 60947-5-1 designation: A600 Q600
-
Operating current AC15 12V: 10 A
-
Operating current AC15 24V: 10 A
-
Operating current AC15 48V: 10 A
-
Operating current AC15 120V: 6 A
-
Operating current AC15 240V: 3 A
-
Operating current AC15 480V: 1.5 A
-
Operating current AC15 600V: 1.2 A
-
Operating current DC13 12V: 5 A
-
Operating current DC13 250V: 0.27 A
-
Operating current DC13 440V: 0.15 A
-
Operating current DC13 500V: 0.13 A
-
Rated operational voltage AC (UL): 600 V
-
Operating temperature min: -50 °C
-
Operating temperature max: +70 °C
-
Storage temperature min: -60 °C
-
Storage temperature max: +80 °C
-
Max altitude: 3000 m
-
Pollution degree: 3
-
ETIM 8.0: EC000041 - Auxiliary contact block
-
Type of product: Accessories
-
Type of built-in auxiliary contacts: 1NO+1NC
-
For photovoltaic application: Yes
-
Type of accessories: Auxiliary contacts
-
Type of mounting: Front centre mounting
-
Type of terminals: Screw
-
Accessories for: BF00…; BF09…; BF150…
-
Brand: Lovato
-
Component Type: Auxiliary Contact
-
Contact Type: 1 N.O./1 N.C.
-
Lovato Product Series: Lovato BF Series IEC Contactor
-
UNSPSC Code: 39120000
-
LOVATO Electric: LOVATO Electric
-
Contact Form: SPST-NC + SPST-NO
-
Manufacturer Part Number: BFX1011
-
Unit of Measure: EA
-
Mounting style: Front
-
Contact Arrangement: 1 normally open (N.O.)
1 normally closed (N.C.)
-
Manufacturer Code: BFX1011
-
GTIN: 8013975147443
-
Net Weight: 0.028
-
Type of electric connection: Screw connection
-
Mounting method: Front fastening
-
Model: Clip-on
-
Number of contacts as normally closed contact: 1
-
Number of contacts as change-over contact: 0
-
Number of contacts as normally open contact: 1
-
Package Weight: 0.028
-
Package Length: 0.124
-
Package Width: 0.043
-
Rated operation current Ie at AC-15, 230 V: 3
-
Number of fault-signal switches: 0
