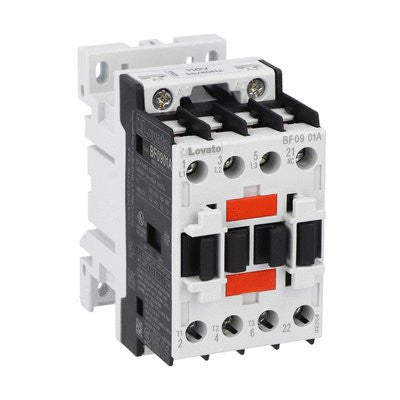

Lovato BF0901A46060 Contactor 3-Pole 9A 460 VAC 1NC Aux Contact

Product Description

The LOVATO BF0901A46060 is a three-pole contactor with a 9A current rating and a 460 VAC coil. It features one normally closed (1NC) auxiliary contact. This contactor is suitable for various applications requiring reliable switching. It has screw terminals for easy connection and can be mounted on a DIN rail.

• IEC Ith ratings in AC1 duty at 003c40 00b0C: 16 to 1600A
• IEC Ie ratings in AC3 440V duty: 6 to 630A
• IEC Power ratings in AC3 400V duty: 2.2 to 335kW

Product Highlights

The LOVATO BF0901A46060 contactor offers a robust solution for motor control and power switching applications, ensuring efficient and safe operation.

Product Information

Standard Information

• Brand: LOVATO
• Manufacturer Part Number: BF0901A46060

Technical Specifications

• Auxiliary Contact: 1NC
• Brand: LOVATO Electric
• Current Rating: 9 A
• Horsepower, Max, 3 Phase, at 480 V: 5
• Manufacturer Part Number: BF0901A46060
• Number of Poles: 3
• Series: BF Series
• Type: AC
• Voltage Rating: 460 VAC
• Type of contactor: 3-pole
• Control voltage: 460V AC
• Max. operating current: 9A
• Mounting: for DIN rail mounting
• Manufacturer series: BF
• Leads: screw terminals
• Insulation voltage: 690V
• Supply voltage frequency: 60Hz
• Operating temperature: -50...70 00b0C
