Lotus Led LL3G-30K-WH Gimbal 7.5W LED Round 3in X 1-3/4in IC ES 3K White CRI 90

Product Description

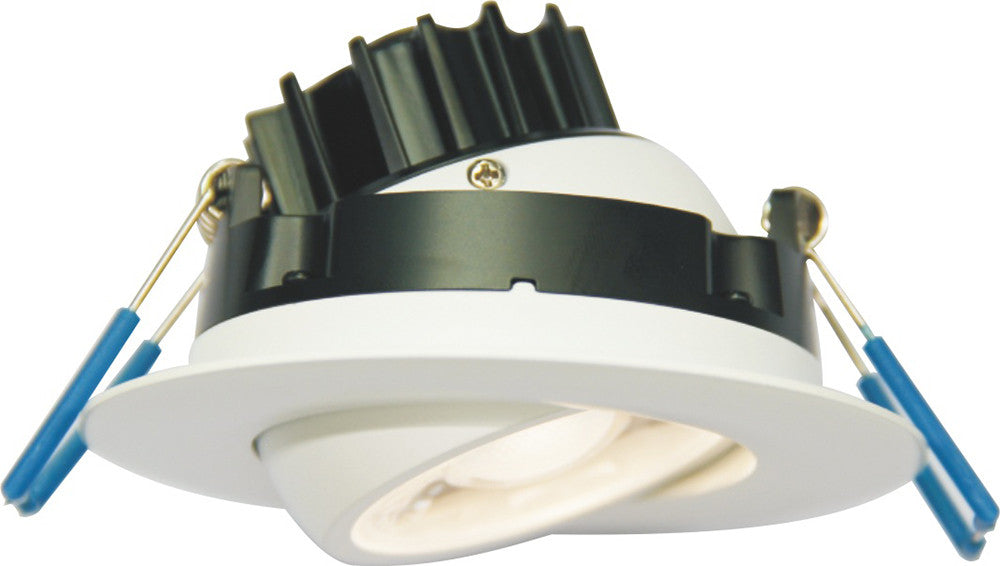

The Lotus LED LL3G-30K-WH is a 3" Round Eyeball Recessed Gimbal LED with an Integral Driver in Connection Box. At only 1 3/4" deep, this light can be installed where ceiling space is limited. It features a CRI 90+ for true color rendering and a 3000K color temperature. It is suitable for sloped ceilings up to 20° and general lighting applications.

• 1 3/4" Deep - Install Where Ceiling Space Is Limited
• Type IC Rated - No Housing Required
• Driver Inside Connection Box - No Junction Box Needed

Product Highlights

This gimbal is air-tight and does not require housing. It has a 38° Beam with 20° tilt and 360° rotation.

Product Information

Standard Information

• Brand: LOTUS LED
• Manufacturer Part Number: LL3G-30K-WH

Technical Specifications

• Amperage: 0.0625 Amp
• Applications: For Air-Tight, Insulated Ceiling and Wet Locations
• Beam Angle: 38 Degrees
• Color Rendering Index: 90
• Color Temperature: 3000 K
• Cord Type: Hard Wire
• Correlated Color Temp: 3,000 K
• Enclosure Rating: IP54
• Enclosure Type: IP54
• Fixture Wattage: 7.5 W
• Lamp Type: LED
• Lens Type: acrylic lens
• Lumens: 613 Lumen
• Mounting Configuration: Recessed
• Mounting Type: Ceiling
• Number of Lamps: 1
• Rated Voltage AC: 120 V
• Type: IC
• Voltage: 120 Volt
• Brand: Lotus LED Lights
• Sub Brand: Lotus LED Lights
• Housing Finish: White
• Housing Material: Die-Cast Aluminum Alloy
• Used With: Stand Alone
• Manufacturer Part Number: LL3G-30K-WH
• Lumens Per Watt: 80
• Wattage: 7.5 W
• Input Voltage: 120V
• Dimmable: Dimmable
• Input Watts: 7.5 Watts
• Downlight Diameter: 3"
• Downlight Type: Gimbal
• Rated Hours: 50,000 Hours
• Gimbal Tilt: 20 Degrees
• Min Operating Temp: -40 Degrees F
• CRI: 90+
• Special Features: Energy Star Rated, IC Rated, Title 20 / 24 Compliant, Wet Location Rated
• Diameter: 3.25"
• Height: 1.75"
• Location Rated (Dry, Damp, Wet): Wet
• Wattage Range: 7-8 W
• Color Of Light: Soft White
• Lumens Range: 600-799 lm
• Light Technology: LED
