Lotus Led FR-LED-6-S15W-5CCT-PL-WH 6 inches 15W Fire Rated Ultra Slim Round LED Downlight - CCT Selectable - 1,100 Lumens

Product Description

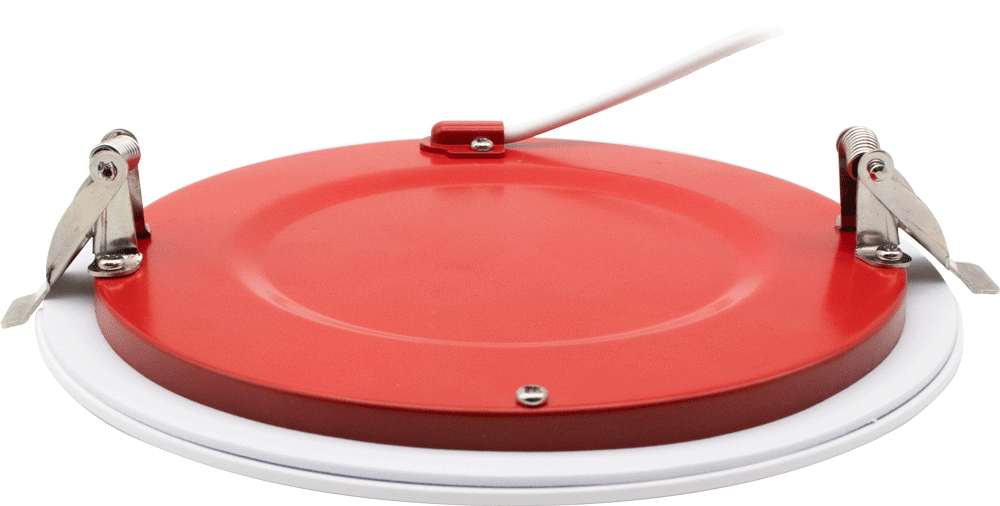

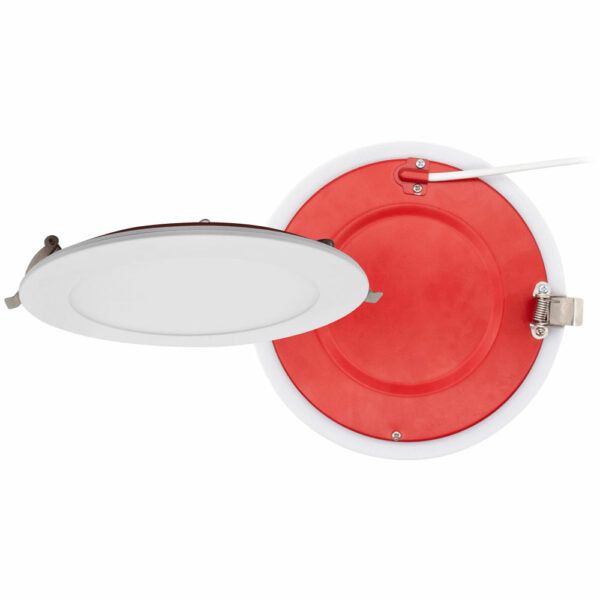

The Lotus LED FR-LED-6-S15W-5CCT-PL-WH is a white tunable ultra slim LED downlight with 5 kelvin temperature options. Select between warm 27K, warm 30K, warm-neutral 35K, neutral 40K, or daylight 50K white light color temperatures using the switch inside the integral driver. This 6" round, 15 watt downlight provides up to 1,100 lumens and is IC rated and suitable for contact with insulation.

• CCT-selectable
• Dimmable on TRIAC dimmers down to 10%
• 2 Hour Fire Rated (UL 263-2011(R2022), STM E119-20 and CAN/ULC-S101-14

Product Highlights

This fire-rated, CCT-selectable downlight is perfect for new construction or renovation light installations in basements, multi-family residential, and commercial applications.

Product Information

Standard Information

• Brand: LOTUS LED
• Manufacturer Part Number: FR-LED-6-S15W-5CCT-PL-WH

Technical Specifications

• Brand: Lotus LED Lights
• Manufacturer Part Number: FR-LED-6-S15W-5CCT-PL-WH
• UPC: 782588042770
• Lumens: 1,100 Lumens
• Wattage: 15 Watts
• Input Voltage: 120V
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
• Downlight Diameter: 6"
• Downlight Type: Thin / Wafer, Fire Rated
• Rated Hours: 50,000 Hours
• Beam Angle: 110 Degrees
• Min Operating Temp: -4 Degrees F
• CRI: 90+
• Special Features: CCT Selectable, Fire Rated, IC Rated
• Diameter: 6.88"
• Height: 1.25"
• Applications: For Multi-Family Residential, Basements and Commercial
• Cord Type: FT6/CMP Plenum-Rated
• Correlated Color Temp: 2700/3000/3500/4000/5000 K
• Fixture Wattage: 15 W
• Lamp Type: LED
• Mounting Type: Insulated Ceiling
• Type: CCT Selectable, Fire Rated, Indirect Slim, Triac Dimmable
• Voltage: 120 VAC
• Housing Finish: White
• Housing Material: Steel
• Lumens Per Watt: 66.67
• Operating temperature: -4º to 104º F
• Initial Lumens: 1000
