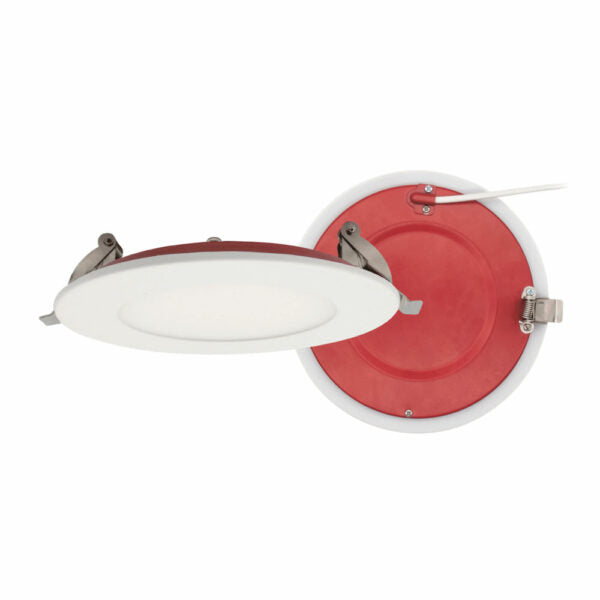

Lotus Led FR-LED-4-S12W-5CCT-PL-WH 4 inches Round Fire Rated Ultra Slim Recessed LED 5CCT 12W

Product Description

The Lotus LED FR-LED-4-S12W-5CCT-PL-WH is a 4" round fire-rated, ultra-slim recessed LED with 5CCT and 12W. Features a heat-resistant steel casing providing up to 2 hours of fire protection. It is suitable for multi-family residential, basement, and commercial applications. The LED offers 5 user-selectable CCT light colors and a CRI of 90+ for true color rendering.

• 2 Hour Fire Rated without additional housing or hardware
• Heavy Duty Steel Spring Clips for easy & secure installation
• Type IC, Wet Location & Air-Tight Rated

Product Highlights

This 12W LED downlight is ideal for limited ceiling spaces, offering versatile lighting options with its selectable light colors and high CRI.

Product Information

Standard Information

• Brand: LOTUS LED
• Manufacturer Part Number: FR-LED-4-S12W-5CCT-PL-WH

Technical Specifications

• Applications: Multi-Family Residential, Basements & Commercial
• Energy Used: 12 W
• Color Temperature (K): 2700 – 3000 – 3500 – 4000 – 5000
• Light Output (lm): 710 – 770 – 820 – 820 – 800
• Halogen Equivalent: 75 W
• Beam Angle: 110°
• CRI: 90+
• Drivers: 120V Triac Dimmable or 120-347V 0-10V Dimmable
• Junction Box Volume: 9.69 cubic inches / Max 5 No 12 AWG or 8 No 14 AWG
• Approved Location: Insulated Ceiling & Wet Locations
• Cable: FT6 / CMP Plenum Rated
• Air Tight & Type IC: Yes
• Ambient Temperature: -4°F (-20°C) to +104°F (+40°C)
• Projected Life: 70% Light Output at 50,000 Hours
• Certification: cETLus
• Fire Rating: UL 263-2011(R2022), STM E119-20 & CAN/ULC-S101-14
• Input Voltage: 120V
• Dimmable: Yes
• Rated Hours: 50,000 Hours
• Min Operating Temp: -4 Deg F
• Diameter: 4.88"
• Height: 1.25"
• Fixture Wattage: 12 W
• Lamp Type: LED
• Lumens: 820 Lumen
• Mounting Type: Ceiling/Recessed
• Type: Fire Rated
• Voltage: 120 VAC
• Brand: Lotus LED Lights
• Correlated Color Temp: 2700/3000/3500/4000/5000 K
• Lumen Output: 710 - 820
• Ballast Start Type: Instant Start
• Technology: LED - New Fixture
