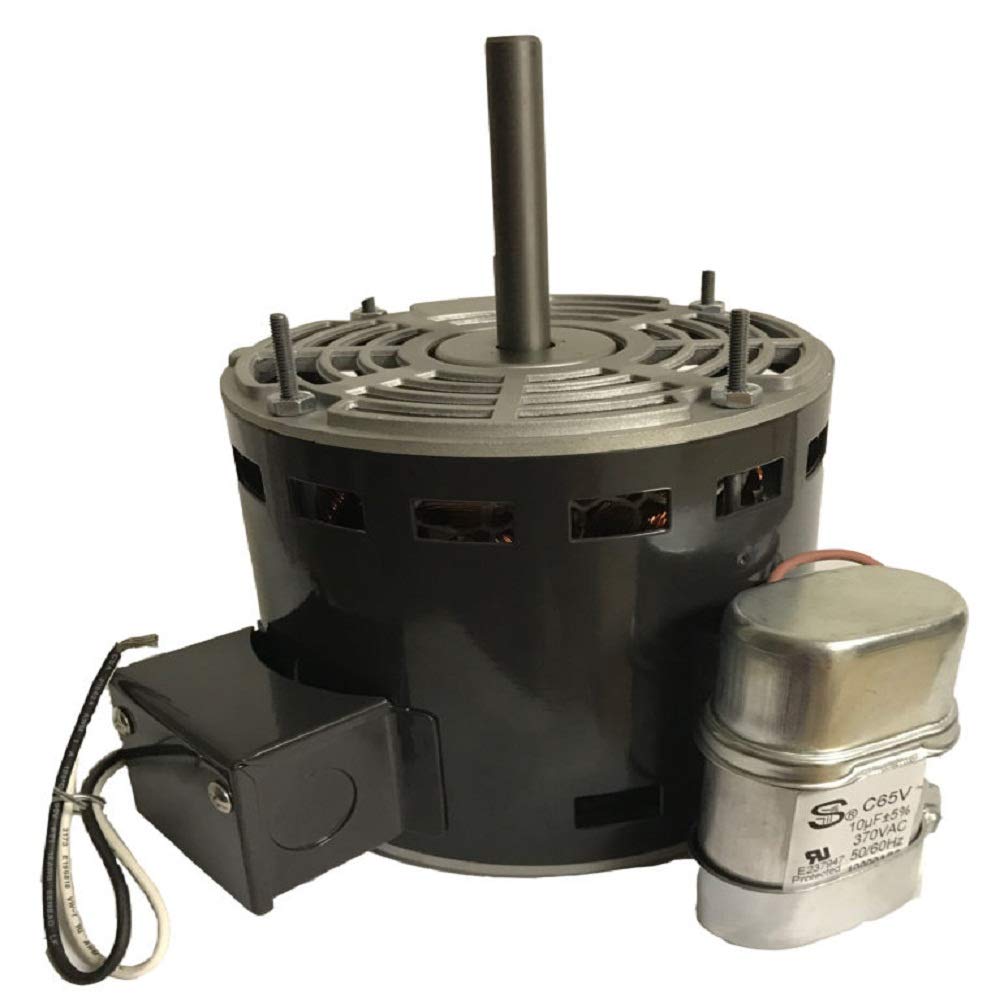

Loren Cook 100172 Drive Motor C09E4A 1/3 HP 120V 1PH

Product Description

The Loren Cook 100172 Drive Motor C09E4A is a reliable and efficient electric motor designed for industrial applications. This 1/3 HP motor operates at 120V and features a single-phase design, making it compatible with various electrical systems.

• 1/3 HP motor
• 120V single-phase power
• Open Drip Proof enclosure

Product Highlights

This motor is ideal for direct drive applications, eliminating the need for pulleys or belts. It features an Open Drip Proof (ODP) enclosure, protecting it from dust and falling water. Suitable for use in harsh industrial environments.

Product Information

Standard Information

• Brand: Loren Cook
• Item Number: 100172
• Horsepower: 1/3
• Voltage: 120V
• Phase: Single
• Enclosure: Open Drip Proof
• Shaft Dimensions: 1/2 inch x 3.00 inches
• Frequency: 60 Hz

Technical Specifications

• Amps: 4.80
• RPM: 1080
• Length: 5.00 inches
• Diameter: 5-5/8 inches
• Bearings: Sleeve
• Rotation: CWSE
• Protector: Thermally Protected
• Ambient Temp: 40 degrees C
