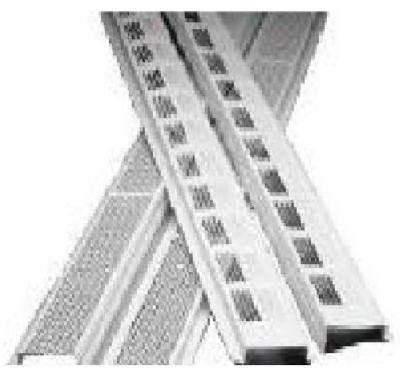

Lomanco 105W Continuous Soffit Vent 8 Foot White

Product Description

The LOMANCO 105W is a continuous strip soffit vent designed for undereave mounting as a companion intake vent for all types of roof exhaust ventilators. Built from heavy-duty aluminum in a white finish, this 8-foot section features an eyebrow design with a 2.75-inch-wide profile and a louvered opening measuring 1 inch by 0.125 inches. The recessed mounting flange sits 0.375 inches back from the face, allowing for a flush, clean install against the soffit. It is suited for residential and light commercial attic ventilation systems where balanced intake and exhaust airflow is required.

This continuous soffit vent is used in residential construction and retrofit projects where consistent undereave intake ventilation is needed across the full length of a soffit run. Its strip format allows installers to run uninterrupted ventilation along eave lines, pairing with ridge vents, power ventilators, turbines, or static roof vents to complete a balanced attic ventilation system. The aluminum construction resists corrosion and holds up in exterior exposure conditions typical of roof and soffit assemblies.

Key Features

• Continuous 8-foot strip format for uninterrupted undereave intake airflow
• Heavy-duty aluminum construction with white finish for exterior durability
• Eyebrow design provides low-profile appearance at the soffit line
• 2.75-inch-wide strip with louvered opening of 1 inch by 0.125 inches
• Recessed mounting flange at 0.375 inches for flush installation against soffit material
• Compatible companion intake product for all types of exhaust ventilators

Compatibility

Designed as a companion intake vent for all types of exhaust ventilators in residential and light commercial attic ventilation systems requiring continuous undereave soffit intake.

Installation Notes

Installation is typically performed by roofing contractors or general contractors during new construction or soffit replacement. Installers should follow local building codes and applicable IRC ventilation requirements for net free area calculations when sizing intake versus exhaust ventilation. Fasten through the mounting flange using appropriate fasteners for the soffit substrate and ensure the louvered opening is kept clear of insulation at the eave to maintain unobstructed airflow.

Technical Specifications

• Length: 8 feet
• Width: 2.75 inches
• Louvered Opening: 1 inch x 0.125 inches
• Mounting Flange Recess: 0.375 inches
• Material: Aluminum
• Finish: White
• Mount Type: Undereave, continuous strip
• Weight: 22 pounds
• Package Quantity: 36 per unit of measure

Standard Information

• Brand: LOMANCO
• Manufacturer Part Number: 105W
