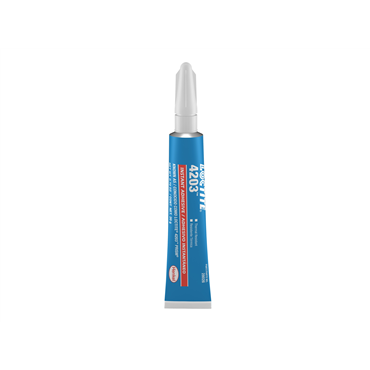

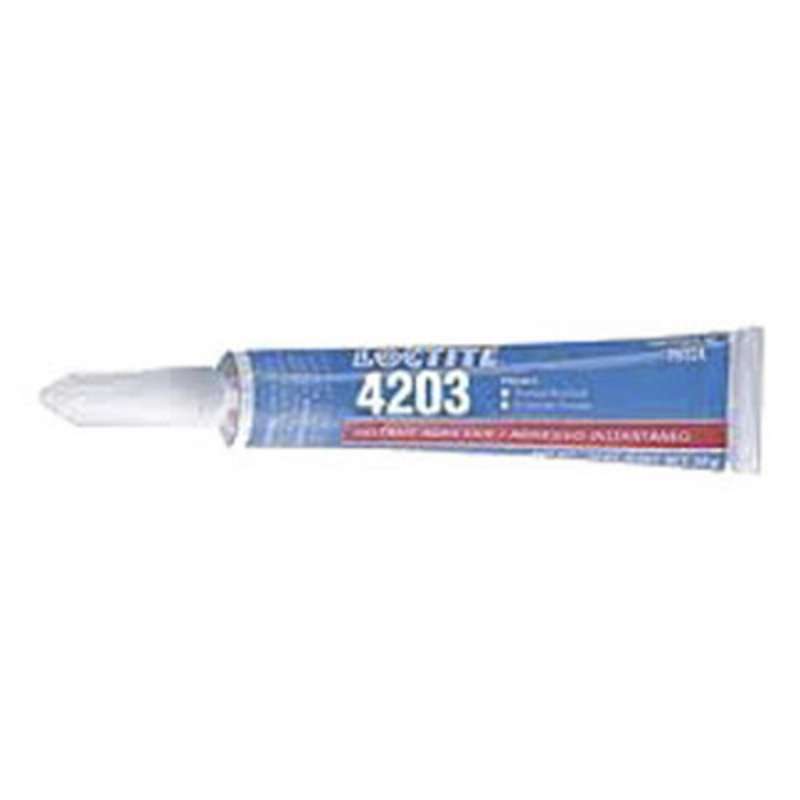

Loctite 232837 4203 Prism Instant Adhesive 20 g Tube

Product Description

The Loctite 232837 is a colorless instant adhesive that comes in a 20 g tube. The low viscosity, thermally resistant adhesive is designed for use in bonding fiber optic components. It is compatible with rubber, plastic, and metal materials and has a cure time of 24 hours.

• Designed for bonding fiber optic components
• Suitable for applications where heat resistance is required
• Toughened with elastomers for flexibility and impact resistance

Product Highlights

The Loctite 232837 instant adhesive is ideal for applications requiring heat resistance and flexibility, bonding to a variety of materials.

Product Information

Standard Information

• Brand: LOCTITE
• Manufacturer Part Number: 232837
• Country of Origin: US

Technical Specifications

• Odor: Irritating/Sharp
• Color: Clear
• Width: 1.0 in.
• Height: 0.5 in.
• Length: 6.0 in.
• Series: 4203
• Cure Time: 24 hr
• Applications: Bonding
• Product Type: Instant Adhesive
• VOCs Content: <20g/L
• Physical Form: Liquid
• Primary Color: Colorless
• Container Type: Tube
• Package Quantity: 20 g per inner, 10 per case
• Specific Gravity: 1.05
• Container Capacity: 20g
• Chemical Composition: Ethyl 2-Cyanoacrylate, Thickener, Thermal Additive, Phthalic Anhydride
• Viscosity Measurement: 150 to 600mPa/s
• Material Compatibility: Metal; Plastic; Rubber
• Maximum Storage Temperature: 46
• Minimum Storage Temperature: 36
• Brand: LOCTITE
• Gap Fill: 0.005 in
• Low Odor: No
• Full Cure: 24 hr
• Viscosity: 375 cPs
• Adheres To: General Purpose
• Application: Close Fitting Parts
• Consistency: Thin Liquid
• Cure Method: Humidity
• Temp. Range: -65 Degrees to 250 Degrees F
• Working Time: 30 sec
• Chemical Type: Cyanoacrylate
• Adhesive Color: Clear
• Brand & Series: LOCTITE 4203
• Container Size: 0.7 fl oz
• Full Cure Time: 24 hr
• Shear Strength: 2,200 psi
• Characteristics: Heat Resistant
• Begins to Harden: 30 sec
• Impact Resistant: Yes
• Tensile Strength: 2200 psi
• Water Resistance: Not Water-Resistant
• Interior/Exterior: Interior Only
• Maximum Viscosity: 600 cps
• Minimum Viscosity: 150 cps
• VOC Content Range: 50 g/L and Under
• VOC Content Weight: 20 g/L
• Working Time Grade: Extra Quick Working Time
• Primary Application: For Rubber and Leather
• Container Size Range: 0.5 fl oz to 1 fl oz
• Primary Applications: Rubber
• Viscosity - Adhesives: 375 cPs
• Compatible Accelerator: Loctite SF 712
• Built-in Dispenser Type: No Dispenser/Applicator
• Container Size and Type: 0.7 fl oz Tube
• Electrically Insulating: Yes
• Container Size - Adhesives: 20 g
• Container Type - Adhesives: Tube
• Begins to Harden - Adhesives: 30 sec
• VOC Content Weight Percentage: 2 %
• Secondary Compatible Materials: Metals, Plastics, Rubber
• Maximum Application Temperature: 250 Degrees F
• Maximum Performance Temperature: 250 Degrees F
• Minimum Application Temperature: -65 Degrees F
• Loctite Number: 4203
• Fixture Time: 20 sec
• Product Form: Liquid
• Package Type: Tube
• Peel Strength: 20 pli
• Maximum Operating Temperature: +250 °F
• Viscosity Class: Low Viscosity
• Storage Condition: Store Between +35.6°F to +46.4°F
• Former Name: 4203 Prism
• IDH Number: 232837
• Shear Strength (Steel/Steel): 2200 psi
• Temperature Range [Max]: 250 °F
