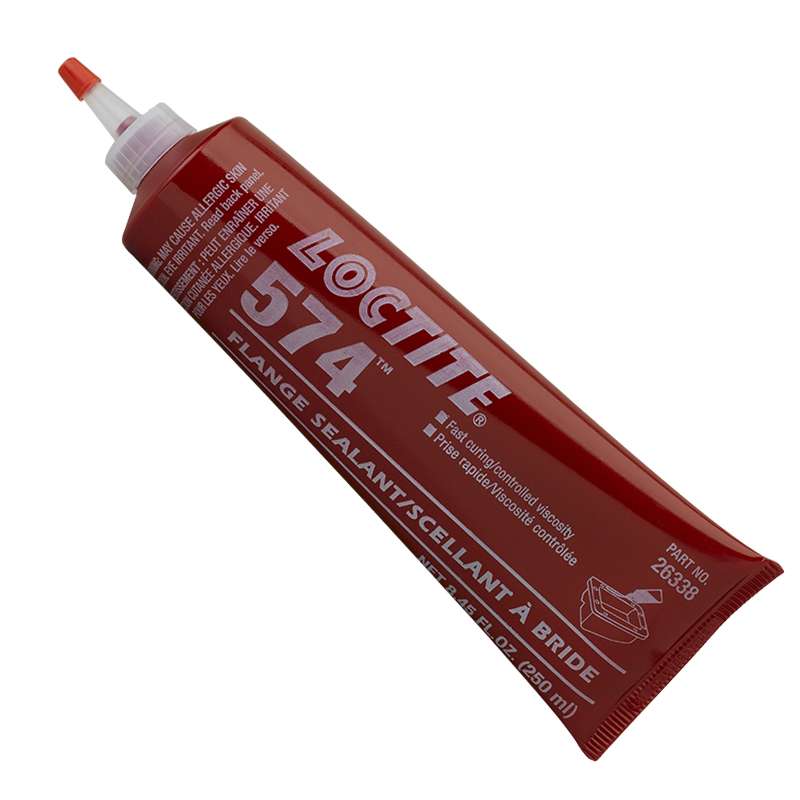

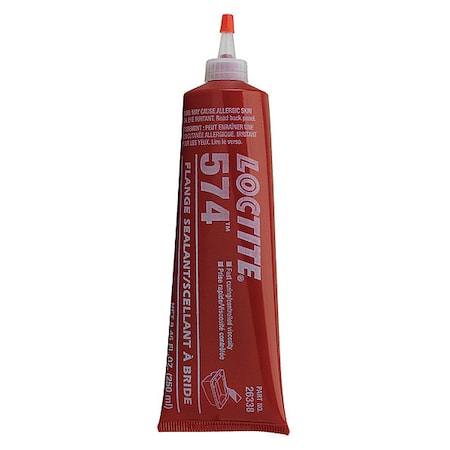

Loctite 223856 574 flange sealant, fast curing 250 mL

Product Description

The LOCTITE 223856 is a fast-curing, orange flange sealant designed for sealing close-fitting joints between rigid metal faces and flanges. This 250 mL anaerobic gasket maker cures in the absence of air, providing immediate resistance to low pressures after assembly. It functions as a form-in-place gasket on rigid flanged connections, offering high oil tolerance and excellent water and glycol resistance. The sealant has a working time of 15 minutes and a full cure time of 24 hours.

• Fast curing and provides immediate resistance to low pressures after assembly.
• Designed for sealing close-fitting joints between rigid metal faces and flanges, ideal for cast iron components and pump housings.
• Offers high oil tolerance and excellent water and glycol resistance, with a maximum operating temperature of 300 Degrees F.

Product Highlights

Fast-curing anaerobic flange sealant for rigid metal assemblies, offering high oil and water resistance up to 300°F.

Product Information

Standard Information

• Brand: LOCTITE
• Manufacturer Part Number: 223856
• Country of Origin: US

Technical Specifications

• Series: 574
• Product Type: Anaerobic Flange Sealant
• Color: Orange
• Chemical Type: Dimethacrylate Ester
• Full Cure Time: 24 hours
• Product Form: Paste; Liquid
• Container Size: 250 mL
• Container Type: Tube
• Odor: Mild
• Number of Components: 1-Part
• Specific Gravity: 1.15
• Tensile Strength: 725 psi
• Viscosity: 70000 to 120000 mPa/s
• VOCs Content: 0.6%
• Applications: Sealing
• Shelf Life: 730 Days From Date of Manufacture
• Storage Temperature: 8 to 21 Degrees C
• Certifications/Standards: RoHS Compliance, California Proposition 65, CEPA DSL/NDSL, CERCLA/SARA Section 302 EHS, CERCLA/SARA Section 311/312, CERCLA/SARA Section 313, OSHA 29 CFR 1910.1200, TSCA
• Flash Point: 199.94 Degrees F
• Sensor Safe: No
• Maximum Operating Temperature: 300 Degrees F
• Sealant Type: Gasket Sealant
• Working Time: 15 min
• Non-Hardening: Yes
• Shear Strength: 870 psi
• Maximum Gap Fill Size: 0.01 in
• Fixture Time: 60 min
• Compatible Materials: Metal (Aluminum, Steel)
• Thermal Conductivity: 0.1 W/mK
