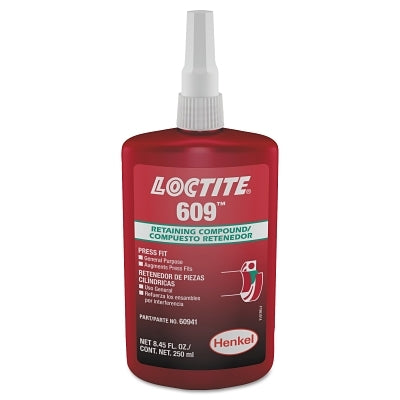

Loctite 135513 609 Retaining Compound General Purpose 250 mL Bottle Green 3000 psi

Product Description

The Loctite 135513 is a general-purpose retaining compound from Henkel Corporation. This low viscosity formula is ideal for bonding rigid metal assemblies. Packaged in a 250 mL green bottle, this product offers high shear strength of 3000 psi.

• A low viscosity retaining compound that bonds rigid metal assemblies
• Easily joins dissimilar metals
• Comes in a 250 mL green bottle

Product Highlights

This Loctite retaining compound is designed for general-purpose use, bonding metal components in various applications. Use it with rotors, shafts, horsepower motors, and to lock bushings.

Product Information

Standard Information

• Brand: Loctite
• MPN: 135513
• UPC: 79340609419
• Manufacturer: Henkel Corporation

Technical Specifications

• Applicable Materials: Most Metals
• Applications: Rotors; Shafts; Horsepower Motors; Lock Bushings
• Capacity Volume: 250 mL
• Chemical Compound: Acrylic Ester
• Color: Green
• Curing Method: Anaerobic
• Fix Cure Time at Temperature: 10 minutes at 77 degrees Fahrenheit
• Full Cure Time at Temperature: 24 hours at 77 degrees Fahrenheit
• Gap Fill Maximum: 0.005 inches
• Odor/Scent: Mild
• Packing Type: Bottle
• Physical Form: Liquid
• Resistance: Acetone; Brake Fluid; Ethanol; Motor Oil; Unleaded Gasoline
• Shear Strength: 3000 psi
• Temperature Range Maximum: 300 degrees Fahrenheit
• Temperature Range Minimum: -65 degrees Fahrenheit
• Viscosity Nominal: 125 cP
