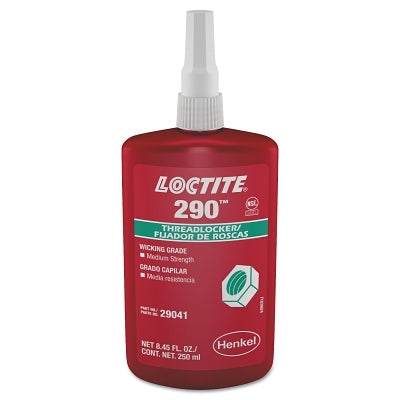

Loctite 135393 290 Medium-Strength Wicking Grade Threadlocker 250 mL Green

Product Description

Loctite 135393 290 Medium-Strength Wicking Grade Threadlocker is a liquid, medium/high-strength adhesive designed for the locking and sealing of threaded fasteners. Ideal for preassembled fasteners, this threadlocker wicks between engaged threads due to its low viscosity and capillary action, eliminating the need to disassemble parts before application. It cures in the absence of air between close-fitting metal surfaces, providing a reliable solution to prevent loosening and leakage caused by shock and vibration. Additionally, it can fill porosities in welds, castings, and powdered metal parts.

• Locks preassembled fasteners
• Works on metal surfaces only
• Tolerates minor contamination from industrial oils

Product Highlights

Loctite 135393 290 Medium-Strength Wicking Grade Threadlocker locks and seals threaded fasteners. It works effectively on metal surfaces and tolerates minor contamination. This threadlocker prevents loosening due to shock and vibration.

Product Information

Standard Information

• Manufacturer: Henkel Corporation
• Brand: Loctite
• Color: Green
• Size: 250 mL

Technical Specifications

• Applications: Locking Preassembled Fasteners No. 2 to 1/2 in
• Chemical Compound: Acrylic; Dimethacrylate Ester
• Color: Green
• Curing Method: Anaerobic
• Fix Cure Time @ Temp.: 20 min at 72°F
• Full Cure Time @ Temp.: 24 hr @ 72°F
• Gap Fill [Max]: 0.003 in
• Odor/Scent: Characteristic
• Packing Type: Bottle
• Physical Form: Liquid
• Resistance: Corrosion; Rust
• Temp. Range [Max]: 300°F
• Temp. Range [Min]: -65°F
• Thread Size [Max]: 1/2 in
• Thread Size [Min]: < 1/2 in
• Torque (Break): 90 in·lb on M10 Steel
• Torque (Prevail): 260 in·lb on M10 Steel
• Viscosity [Max]: 55 cP
• Viscosity [Min]: 25 cP
