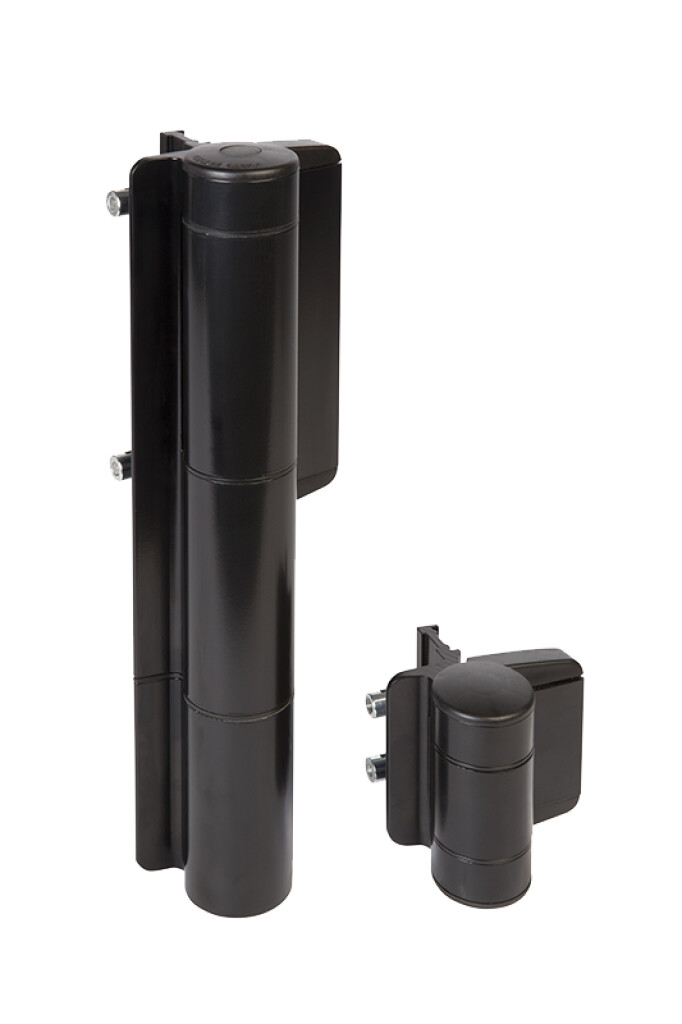

Locinox mammoth180-9005 Hydraulic Gate Closer Hinge 330 Lbs

Product Description

The LOCINOX mammoth180-9005 is a combination hydraulic gate closer and hinge designed for heavy-duty gate applications. It integrates the Mammoth hydraulic closer with the Dino hinge into a single unit, handling gates up to 330 pounds and up to 5 feet wide. Double bearings in both hinge points deliver smooth, consistent operation across the full range of motion. The Active Thermal System maintains a constant closing speed regardless of ambient temperature or weather conditions, eliminating the seasonal speed drift common in standard hydraulic closers. This unit is specified and installed by gate fabricators, fence contractors, and security system integrators working on commercial and residential access control projects.

The mammoth180-9005 is suited for swing gates in residential and commercial installations where gate weight and reliable automatic closing are primary concerns. It handles the load demands of heavy ornamental iron, steel, and timber gates. The Dino hinge is included with the unit, providing a complete closer-and-hinge solution without requiring a separately sourced compatible hinge. The black finish coordinates with standard powder-coated gate hardware. This product is appropriate for single-leaf swing gate configurations requiring hydraulic closing with full damping.

Key Features

• Integrated hydraulic closer and hinge in one assembly — no separate hinge required
• Supports gates up to 330 pounds and up to 5 feet wide
• Active Thermal System maintains consistent closing speed across varying temperatures
• Double bearings in both hinge points for smooth, low-friction operation
• Includes Dino hinge for complete out-of-box installation
• Black finish for compatibility with standard powder-coated gate hardware

Compatibility

Designed as a complete hydraulic gate closer and hinge assembly for single-leaf swing gates weighing up to 330 pounds and up to 5 feet wide. Compatible with heavy ornamental, steel, and timber gate constructions requiring integrated hydraulic closing.

Installation Notes

Installation is typically performed by qualified fence contractors or gate fabricators. Before installation, ensure the gate post and gate frame are structurally sound and capable of supporting the rated gate weight. Follow the manufacturer's mounting instructions for proper hinge positioning and hydraulic adjustment. Verify local building and access control codes for gate closer requirements in commercial applications.

Technical Specifications

• Maximum Gate Weight: 330 pounds
• Maximum Gate Width: 5 feet
• Closing Mechanism: Hydraulic with Active Thermal System
• Bearing Type: Double bearings
• Color: Black
• Included Components: Mammoth hydraulic closer, Dino hinge

Standard Information

• Brand: LOCINOX
• Manufacturer Part Number: mammoth180-9005
