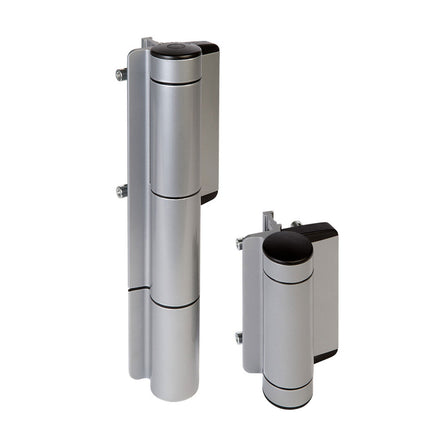

Locinox mammoth-hd-silv Hydraulic Gate Closer Hinge Set 440 Lbs

Product Description

The LOCINOX mammoth-hd-silv is a heavy-duty hydraulic gate closer and hinge-in-one unit designed to reliably close gates weighing up to 440 lbs (200 kg) and spanning up to 2000 mm in width. The set pairs the hydraulically damped Mammoth closer with the self-closing Raptor hinge, delivering a smooth, controlled close through a patented hydraulic damping system. The Active Thermal System maintains consistent closing speed regardless of temperature swings or humidity, making this unit suitable for year-round exterior installation. Both hinges use double bearings for exceptionally smooth operation. This unit is installed by gate fabricators, fence contractors, and commercial door hardware technicians.

The mammoth-hd-silv is suited for residential and commercial swing gate applications where heavy gate weight and wide gate spans require a robust, weather-resistant closing solution. The 180-degree closing angle eliminates the need for a separate gate stop. ADA-compliant opening resistance of less than 5 lbs applies to gate widths of 4.6 feet and up, making it appropriate for accessible entrances in commercial and institutional settings. The silver finish suits ornamental iron, aluminum, and steel gate frames commonly found in perimeter fencing installations.

Key Features

• Closes gates up to 440 lbs and 2000 mm wide using combined Mammoth closer and Raptor hinge
• Active Thermal System maintains constant closing speed unaffected by weather conditions
• 180-degree closing angle with no gate stop required
• ADA-compliant opening resistance under 5 lbs for gate widths 4.6 feet and wider (max 30 Nm)
• Adjustable closing speed with final-action adjustment
• Installation gap range: 9/16 inches minimum to 1-3/8 inches maximum for ornamental applications
• Vandal-resistant construction with double-bearing hinges for long service life

Compatibility

Designed for swing gates up to 440 lbs and 2000 mm wide. Includes the Raptor self-closing hinge. Compatible with ornamental iron, aluminum, and steel gate frames within the specified installation gap range of 9/16 inches to 1-3/8 inches.

Installation Notes

Installation is typically performed by licensed fence contractors or commercial door hardware technicians familiar with gate hardware and applicable local codes. Shut off any access control power connected to the gate before beginning work. Verify the gate frame and post are structurally sound and capable of bearing the load before mounting. Adjustability specifications of 34 inches gap and 34 inches height should be confirmed against the gate frame dimensions prior to installation.

Technical Specifications

• Maximum Gate Weight: 440 lbs (200 kg)
• Maximum Gate Width: 2000 mm
• Closing Angle: 180 degrees
• ADA Opening Resistance: Less than 5 lbs (max 30 Nm) for gate widths 4.6 feet and up
• Installation Gap (Ornamental): 9/16 inches minimum to 1-3/8 inches maximum
• Adjustability: 34 inches gap and 34 inches height
• Finish: Silver, Black
• Rating: Exterior, rain and frost proof

Standard Information

• Brand: LOCINOX
• Manufacturer Part Number: mammoth-hd-silv
