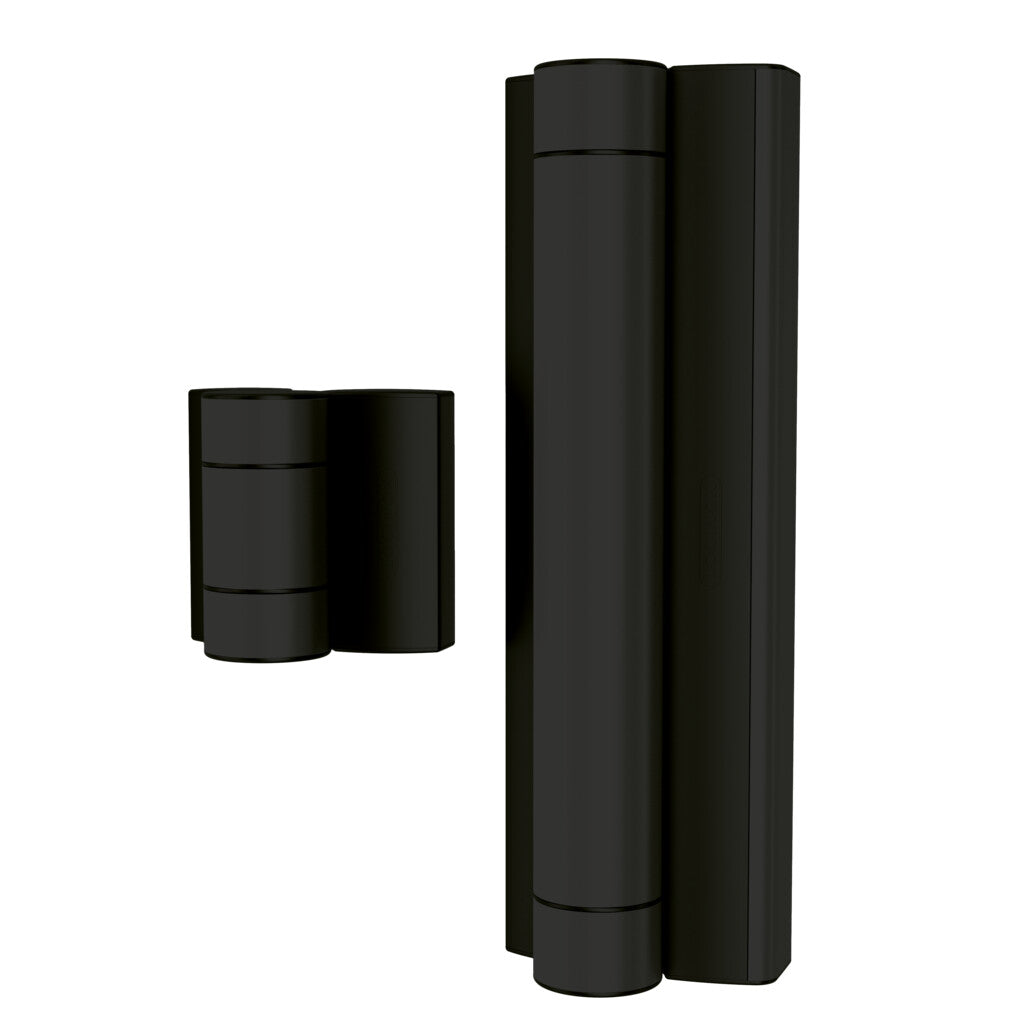

Locinox MAGNUS-9005 MAGNUS Motorized Hinge & Gate Closer

Product Description

The LOCINOX MAGNUS-9005 is a motorized hinge and gate closer designed for automating pedestrian gates. The brushless and reversible motor is designed to handle unpredictable pedestrian behavior and operates in low-energy mode. Settings and access control are configured via an intuitive smartphone app. Includes lower hinge and compact connection box.

• 100 Nm torque

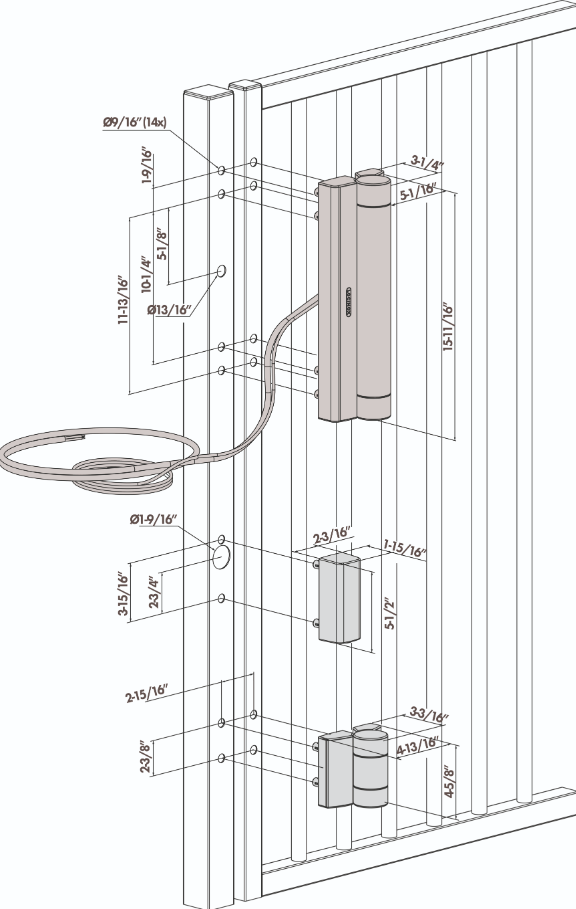

• Fits on post profiles from 2 3/8" and gate profiles from 1 9/16"
• Conforms to UL/cUL 325 standard for automatic operators, tested by ETL

Product Highlights

The MAGNUS features automated obstacle detection, a reversible motor, and a compact, vandal-proof design. It has been tested up to 500,000 cycles and is EN 16005 Compliant.

Product Information

Standard Information

• Brand: LOCINOX
• Manufacturer Part Number: MAGNUS-9005

Technical Specifications

• Motorized gate closer: with integrated electronics
• Torque: 75 Nm
• Fits on post profiles: from 2 3/8" and gate profiles from 1 9/16"
• Gear box: Steel
• Cover: Anodized aluminium
• Fixation: Fast and easy with Quick-Fix bolts
• Standard compliance: Conforms to UL/cUL 325 standard for automatic operators, tested by ETL
• Input main power supply: 110V AC to 240V AC
• Motor voltage: 24V DC
• External connection box: with 3 inputs and 3 outputs (Max. 48W, 24V DC)
• Automated obstacle detection: with reverse function
• Motor: Brushless motor: long lifespan and intensive usage
• Motor type: Reversible motor with backdrivability
• Cable length: 6 1/2' cable between motor and connection module
• Design: Compact and vandal-resistant
• Configuration: via app
• Cycles tested: Tested up to 500 000 cycles
• Compliance: EN 16005 Compliant
