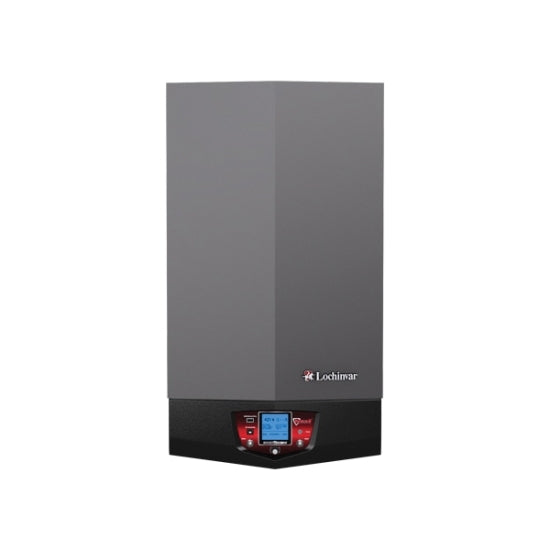

Lochinvar WHB285N Knight Wall Mount Fire Tube Boiler - NAT 285,000 BTU/HR INPUT

Product Description

The Lochinvar WHB285N is a Knight wall mount fire tube boiler designed for efficiency and performance. It offers a natural gas input of 285,000 BTU per hour, suitable for residential and commercial applications.

• High efficiency with a thermal efficiency rating of 95%
• Modulating burner with a turndown ratio of 10:1
• Stainless steel heat exchanger providing durability

Product Highlights

This boiler is designed to provide reliable heating solutions with reduced environmental impact.

Product Information

Standard Information

• Brand: Lochinvar
• MPN: WHB285N

Technical Specifications

• Item Name: Fire Tube Boiler
• Fuel Type: Natural Gas
• BTU Rating: 285000 Input, 264000 Output BTU/HR
• Voltage Rating: 120 VAC At 60 HZ
• Material: Stainless Steel Heat Exchanger
• Thermal Efficiency: 95%
• Ignition Type: Direct Spark
• Gas Connection: 1/2 IN
• Water Connection: 1-1/4 IN
• Air Inlet: 3 IN
• Vent Size: 3 IN
• Mounting: Wall
• Height: 41-3/4 IN
• Width: 18-3/4 IN
• Depth: 21-1/8 IN
• Industry Standards: AHRI Certified, CSA Design Certified, ASME Certified H Stamped, Energy Star Rated
• Additional Specifications: Net BTU/HR: 229000
