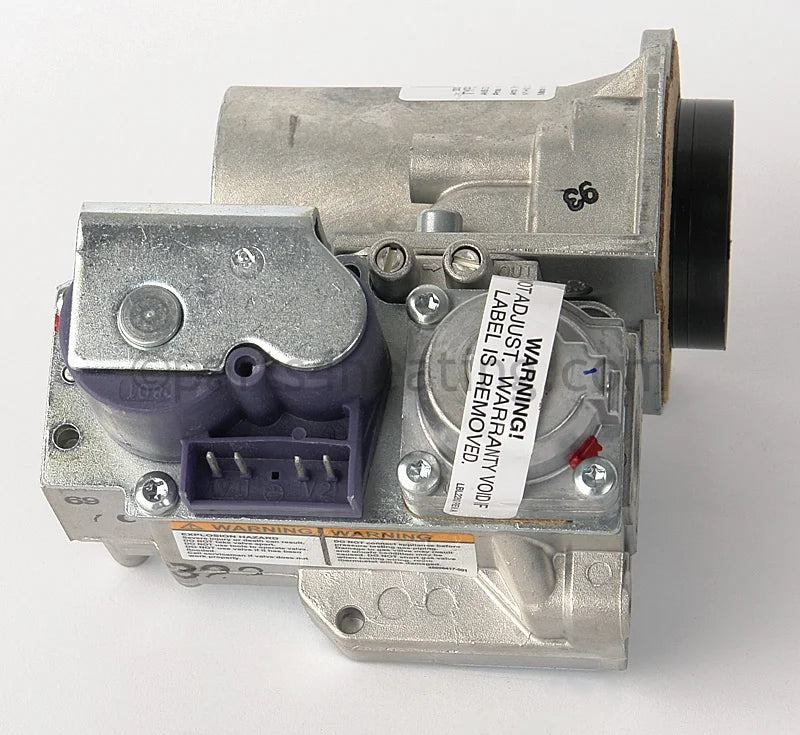

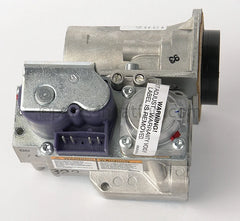

Lochinvar VAL3203 Gas Valve 24 V (1/2 inches) 100172005

Product Description

Lochinvar VAL3203 is a gas valve assembly for Lochinvar Knight boilers, referenced for models KBN285 and KBN286. The valve operates at 24 V and uses a 1/2-inch gas port; coil rating is specified as 24 V, 0.42 A. It is rated for a maximum pressure of 1/2 p.s.i. (Class B and C) and an ambient operating range of 5 to 158 F. Typical use is as a replacement gas valve in Knight boiler applications.

• Electrical: 24 V coil, 0.42 A coil current
• Mechanical: 1/2-inch gas port, maximum pressure 1/2 p.s.i. (Class B and C)
• Operating range and fit: ambient 5 to 158 F; compatible with Lochinvar Knight boiler models including KBN285 and KBN286

Product Highlights

Replacement gas valve assembly for Lochinvar Knight boilers; 24 V coil, 1/2-inch port, 1/2 p.s.i. maximum pressure.

Product Information

Standard Information

• Brand: LOCHINVAR
• Manufacturer Part Number: VAL3203
• Country of Origin: United States

Technical Specifications

• Brand: Lochinvar
• Manufacturer Part Number (MPN): VAL3203
• Product Type: Gas valve assembly
• Replacement MPN: 100172005
• Discontinued: March 14, 2018
• Input Voltage: 24 V
• Coil Current: 0.42 A
• Port Size: 1/2 inch
• Maximum Pressure: 1/2 p.s.i. (Class B and C)
• Ambient Operating Temperature: 5 to 158 F
• Weight: 3.13 Pounds (1420 g)
• Compatible Models: Lochinvar Knight boilers including KBN285, KBN286 (also referenced AW, KB, KBL, SNA series in compatibility lists)
• UPC: 703765162876
• ASIN: B00QW2MRPQ
