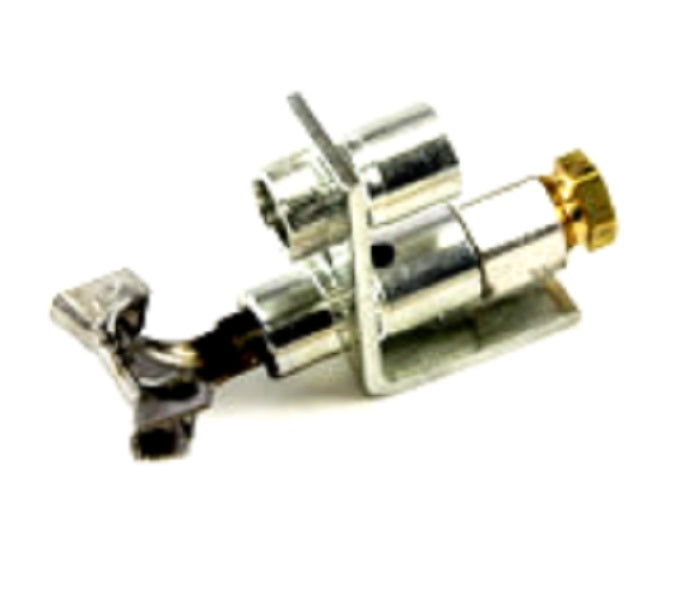

Lochinvar PLT2016 Burner Pilot Natural Gas (Replacement 100208366)

Product Description

The Lochinvar PLT2016 is a natural gas burner pilot assembly used as a replacement part in Lochinvar water heaters and boilers. The PLT2016 provides a pilot flame for main burner ignition and generates the millivolt signal required for gas valve operation. It is configured for natural gas (F1 orifice family) and is offered as an intermittent pilot assembly compatible with many Lochinvar CW, CB, CS, RB and RW series models.

• Intermittent pilot operation configured for natural gas (Orifice/Family: F1).
• Direct replacement assembly for Lochinvar boilers and water heaters; cross-referenced to part 100208366.
• Complete pilot assembly includes pilot burner, thermocouple, and necessary fittings for ignition and millivolt signaling.

Product Highlights

Natural gas intermittent pilot assembly PLT2016; includes pilot burner and thermocouple; direct replacement (100208366)

Product Information

Standard Information

• Brand: LOCHINVAR
• Manufacturer Part Number: PLT2016

Technical Specifications

• Brand: Lochinvar
• Manufacturer Part Number: PLT2016
• Alternative Part Numbers: 100208366, PLT2016K, 100165894
• Product Code: PLT2016
• Part Name: Pilot, intermittent
• Type: Standing/Intermittent pilot assembly
• Fuel: Natural gas
• Gas Type: Natural gas
• Operation: Intermittent
• Orifice / Family: F1
• Includes: Pilot burner; thermocouple; requisite fittings
• Function: Provides steady pilot flame and millivolt signal for gas valve operation and main burner ignition
• Weight: 1 lb
• Compatible Models: CBL1540, CBL1540PM, CBL1700, CBL1700PM, CBL2000, CBL2000PM, CBL2310, CBL2310PM, CBL2620, CBL2620PM, CBL3080, CBL3080PM, CBN1540, CBN1540-IID, CBN1540-STD, CBN1540PM, CBN1700, CBN1700-IID, CBN1700-STD, CBN1700PM, CBN2000, CBN2000-IID, CBN2000-STD, CBN2000PM, CBN2310, CBN2310-IID, CBN2310-STD, CBN2310PM, CBN2620, CBN2620-IID, CBN2620-STD, CBN2620PM, CBN3080, CBN3080-IID, CBN3080-STD, CBN3080PM, CSL1540, CSL1700, CSL2000, CSL2310, CSL2620, CSL3080, CSN1540, CSN1700, CSN2000, CSN2310, CSN2620, CSN3080, CWL1540, CWL1540PM, CWL1700, CWL1700PM, CWL2000, CWL2000PM, CWL2310, CWL2310PM, CWL2620, CWL2620PM, CWL3080, CWL3080PM, CWN090, CWN090PM, CWN135, CWN135PM, CWN1540, CWN1540PM, CWN1540PM-STD, CWN1540PM-Standing, CWN1700, CWN1700PM, CWN1700PM-STD, CWN1700PM-Standing, CWN180, CWN180PM, CWN199, CWN199PM, CWN225, CWN225PM, CWN2310, CWN2310PM, CWN2310PM-STD, CWN2310PM-Standing, CWN2620, CWN2620PM, CWN2620PM-STD, CWN2620PM-Standing, CWN270, CWN270PM, CWN3080, CWN3080PM, CWN3080PM-STD, CWN3080PM-Standing, RBN135, RBN180, RBN199, RBN225, RBN270, RWN135, RWN180, RWN199, RWN225, RWN270
• Compatible Brands: Lochinvar, A.O. Smith
• Product Description: PLT2016 Burner Pilot Natural Gas
• ASIN: B00QW2F0RS
