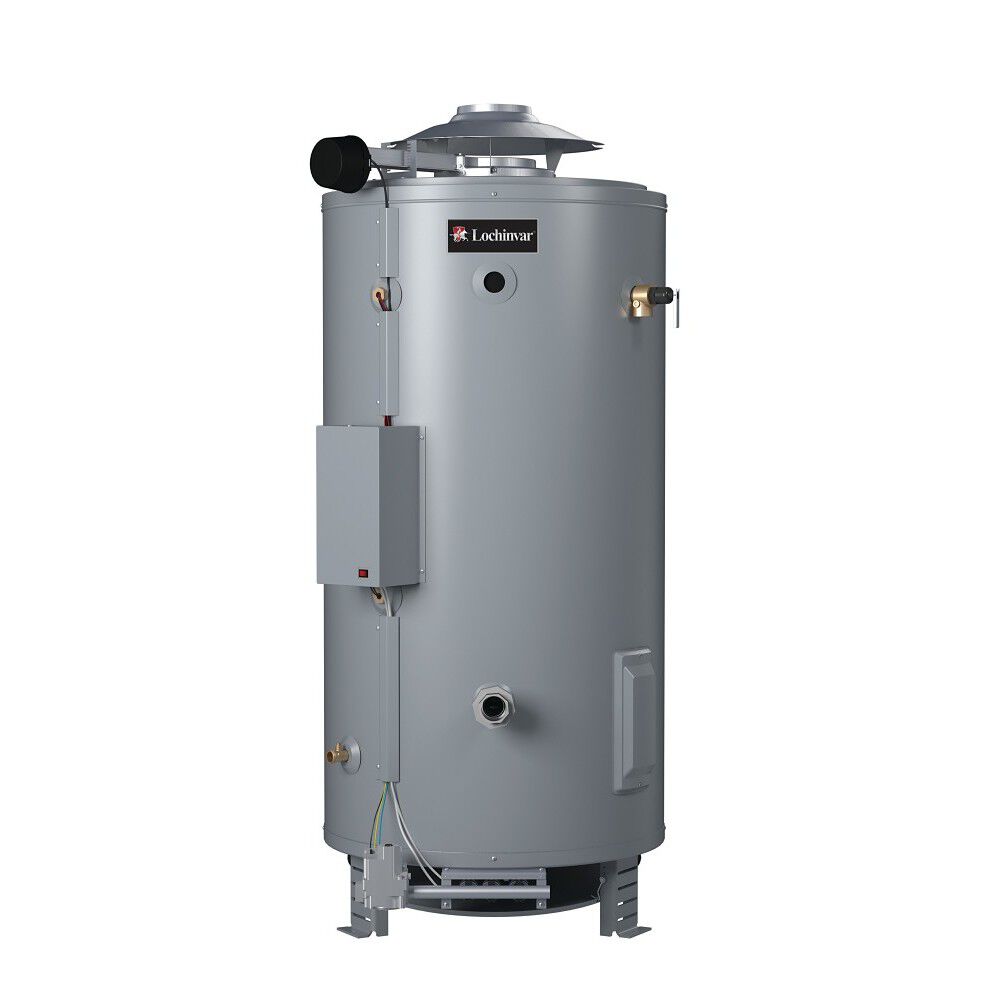

Lochinvar L-CGN275100A Commercial Gas Water Heater 275K Btu

Product Description

The LOCHINVAR L-CGN275100A is a self-cleaning commercial gas water heater rated at 275,000 BTU/h with a nominal capacity of 100 gallons (98 gallons rated storage volume). It runs on natural gas with intermittent electronic ignition, eliminating the standing pilot to reduce fuel consumption. The unit features a glass-lined tank with multiple anode rods, each with a stainless steel core, to resist corrosion and extend service life. A factory-installed, CSA-certified, ASME-rated T and P relief valve is included. The self-cleaning system activates when cold water enters through the front connection, reducing sediment accumulation and maintaining rated thermal efficiency at 80 percent. Licensed plumbers and commercial HVAC technicians are the primary installers.

This water heater is designed for indoor commercial applications including new construction and replacement projects. Its compact, low-profile design is up to one foot shorter than the models it replaces. Inlet and outlet connections are located at the top, front, and rear, providing flexibility for tight mechanical rooms. The unit can be installed standalone, manifolded with other units, or connected to external storage tanks, making it adaptable to a range of commercial hot water system configurations.

Key Features

• Self-cleaning system reduces sediment build-up and maintains 80 percent thermal efficiency
• Multiple inlet and outlet connection locations: top, front, and rear
• Intermittent electronic ignition eliminates standing pilot for energy savings
• Glass-lined tank with stainless steel core anode rods for enhanced corrosion protection
• Installs standalone, manifolded, or connected to storage tanks
• Factory-installed T and P relief valve: CSA certified and ASME rated (HLW stamp)

Compatibility

Designed as an OEM-style replacement for commercial indoor natural gas water heaters in the 100-gallon class, with support for standalone, manifolded, and storage-tank-connected configurations.

Installation Notes

Installation must be performed by a licensed plumber or qualified mechanical contractor in accordance with local plumbing codes and the International Fuel Gas Code (IFGC). Shut off the gas supply and cold water supply before disconnecting any existing unit. The 120-volt electrical connection must comply with NEC requirements, and the circuit should be de-energized before wiring. Verify adequate combustion air and venting for the flue prior to startup.

Technical Specifications

• Maximum Input: 275,000 BTU/h
• Nominal Capacity: 100 gallons
• Rated Storage Volume: 98 gallons
• Thermal Efficiency: 80 percent
• Fuel Source: Natural Gas
• Voltage: 120 volts
• Amperage: 5 amps
• Installation Type: Indoor
• Application: Commercial
• Height to T and P: 56 inches
• T and P Relief Valve: Factory-installed, CSA certified, ASME rated
• ASME Stamp: HLW
• Limited Tank Warranty: 3 years
• Limited Parts Warranty: 1 year
• Destination Country: US

Standard Information

• Brand: LOCHINVAR
• Manufacturer Part Number: L-CGN275100A
