Lochinvar KBX0650NM13 Knight XL Commercial Boiler Natural Gas 650,000 BTU/HR Input

Product Description

The Lochinvar KBX0650NM13 is a Knight XL Commercial Boiler designed to operate on natural gas, providing an input capacity of six hundred fifty thousand BTU per hour. This high-efficiency boiler offers reliable heating for commercial applications, ensuring effective operation across various load demands.

• 97% thermal efficiency
• 10:1 turndown ratio
• Remote connectivity through CON-X-US

Product Highlights

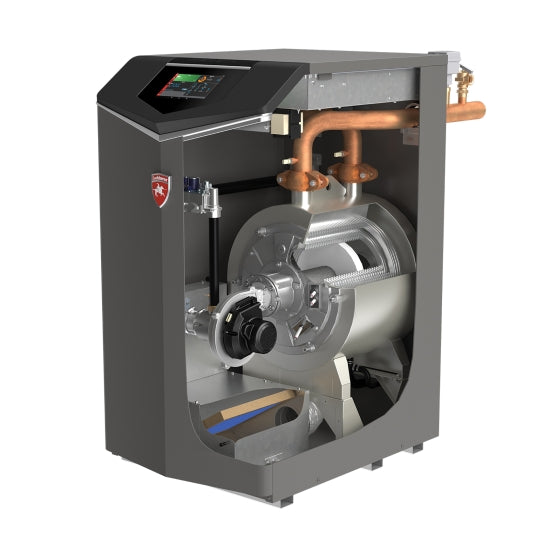

Features a built-in touchscreen control for user-friendly operation. The advanced stainless steel water tube heat exchanger boosts efficiency and reduces emissions.

Product Information

Standard Information

• Brand: Lochinvar
• MPN: KBX0650NM13

Technical Specifications

• Sub Brand: Knight
• Fuel Type: Natural Gas
• BTU Rating: 65,000 - 650,000 BTU/HR INPUT
• Voltage Rating: 124 VAC at 60 Hz
• Phase: 1
• Material: Stainless Steel Water Tube Heat Exchanger
• Ignition Type: Direct Spark
• Maximum Pressure: 160
• Gas Connection: 1-1/4 IN
• Water Connection: 2 IN
• Air Inlet: 4 IN
• Vent Size: 6 IN
• Height: 45 IN
• Width: 24 IN
• Depth: 53 IN
• Height to Gas Connection: 30-1/2 IN
• Industry Standards: AHRI Certified, CSA Design Certified, ASME Certified H Stamped, GE-Gap, FM, CSD-1 Design
