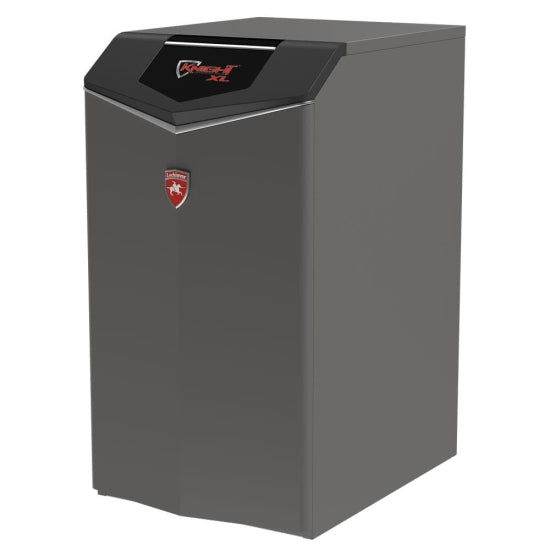

Lochinvar KBX0500NM13 Knight XL Commercial Boiler Natural Gas, 500,000 BTU/HR Input

Product Description

The Lochinvar KBX0500NM13 is a commercial boiler designed for natural gas applications with an output of five hundred thousand BTU per hour. This model features advanced technology that enhances efficiency and performance in heating applications.

• 97% thermal efficiency
• 10:1 turndown ratio
• Stainless steel water tube heat exchanger

Product Highlights

The KBX0500NM13 offers reliable performance for various commercial heating needs. Its stainless steel construction ensures durability. The touchscreen display simplifies use and adjustments for technicians.

Product Information

Standard Information

• Manufacturer: Lochinvar LLC
• Fuel Type: Natural Gas

Technical Specifications

• BTU Rating: 50,000 - 500,000 BTU/HR Input
• Voltage Rating: 122 VAC at 60 Hz
• Phase: 1
• Material: Stainless Steel Water Tube Heat Exchanger
• Ignition Type: Direct Spark
• Maximum Pressure: 160 psi
• Gas Connection: 1 inch
• Water Connection: 2 inches
• Air Inlet: 4 inches
• Vent Size: 4 inches
• Height: 45 inches
• Width: 24 inches
• Depth: 42.5 inches
• Height to Gas Connection: 29.75 inches
• Industry Standards: AHRI Certified, CSA Certified, ASME Certified
