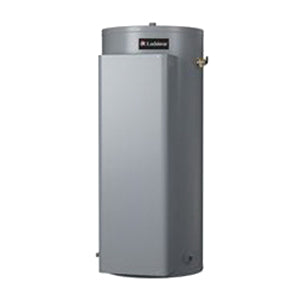

Lochinvar HST18080 Electric Water Heater Hi-Power 80 gal

Product Description

The Lochinvar HST18080 is a high-performance electric water heater designed for commercial applications. It has a capacity of eighty gallons and delivers sixty-one thousand four hundred thirty-four BTU per hour. The unit is powered by eighteen kilowatts and suitable for both one-phase and three-phase electrical systems.

• High water temperature operation: 120 - 180 degrees Fahrenheit
• Glass lined steel tank for protection against rust
• Standard voltages: 208, 240, and 480 V

Product Highlights

This water heater is equipped with a surface-mounted thermostat, ensuring accurate temperature settings for various applications. It is engineered for durability with non-CFC foam insulation to minimize heat loss.

Product Information

Standard Information

• Brand: Lochinvar
• Manufacturer: A. O. Smith Corporation

Technical Specifications

• Amperage Rating: 86.5 A at one phase, 50 A at three phases
• BTU Rating: 61434 Btu/hr
• Capacity: 80 gal
• Connection Size: 1-1/4 inches
• Dimensions: 25-1/2 inches W x 60-1/4 inches H x 31 inches D
• Flow Rate: 74 gph at 100 degrees Fahrenheit rise
• Material: Steel
• Model: Surface Mount Thermostat
• Number of Elements: 3
• Phase: One phase or three phase
• Pressure Rating: 150 psi
• Temperature Rating: 120 - 180 degrees Fahrenheit
• Voltage Rating: 208 V
• Wattage: 18 kW
