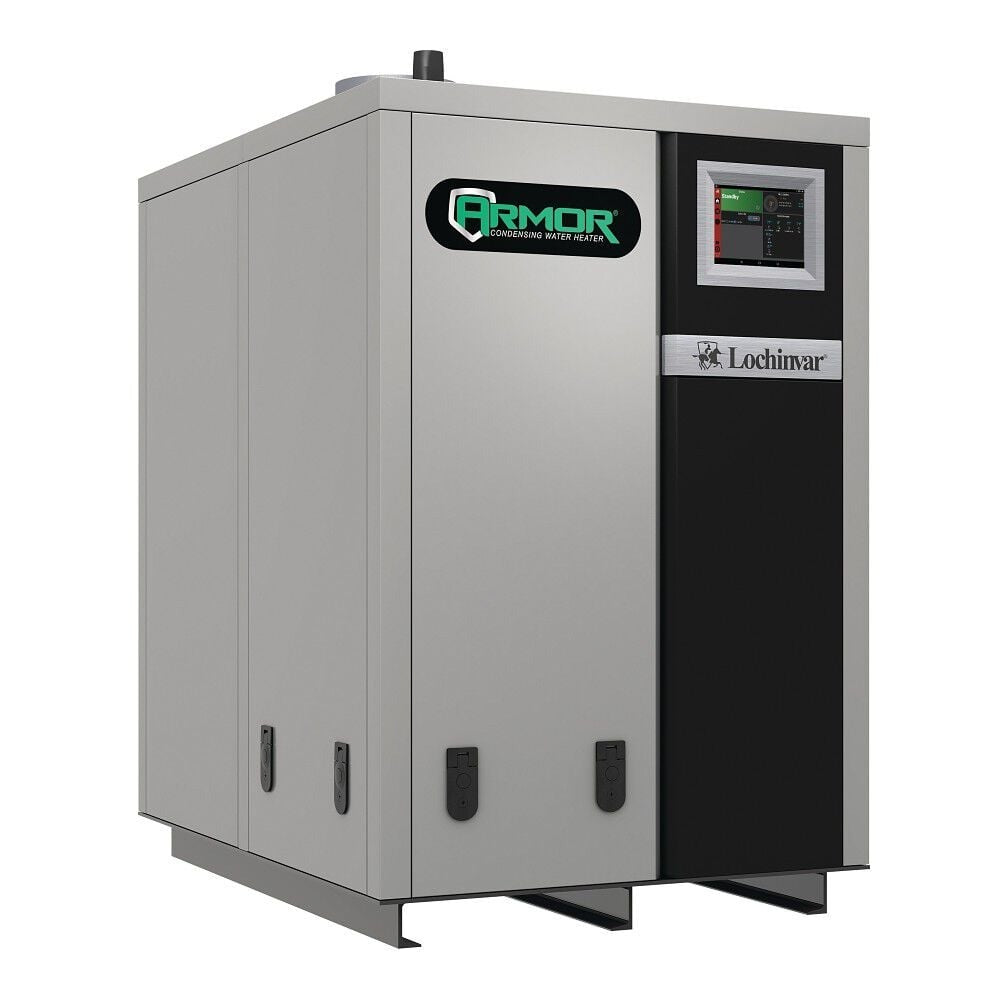

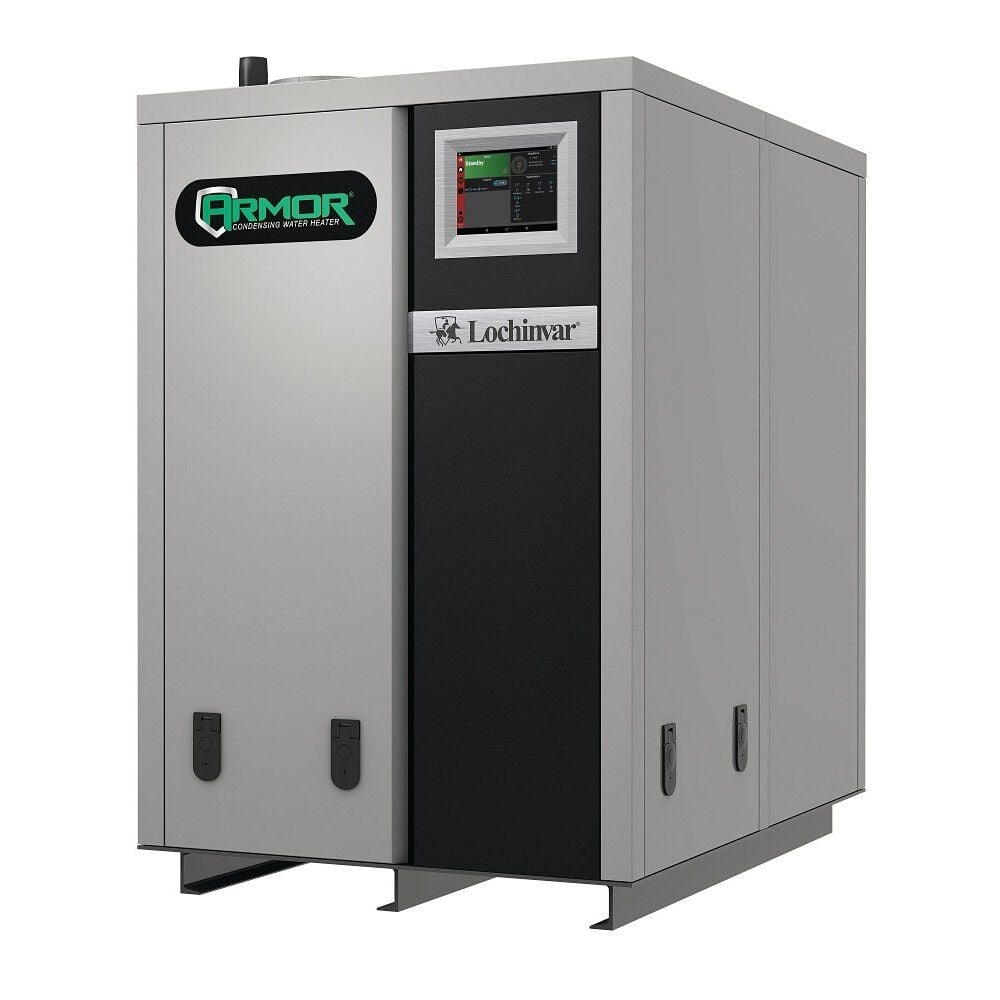

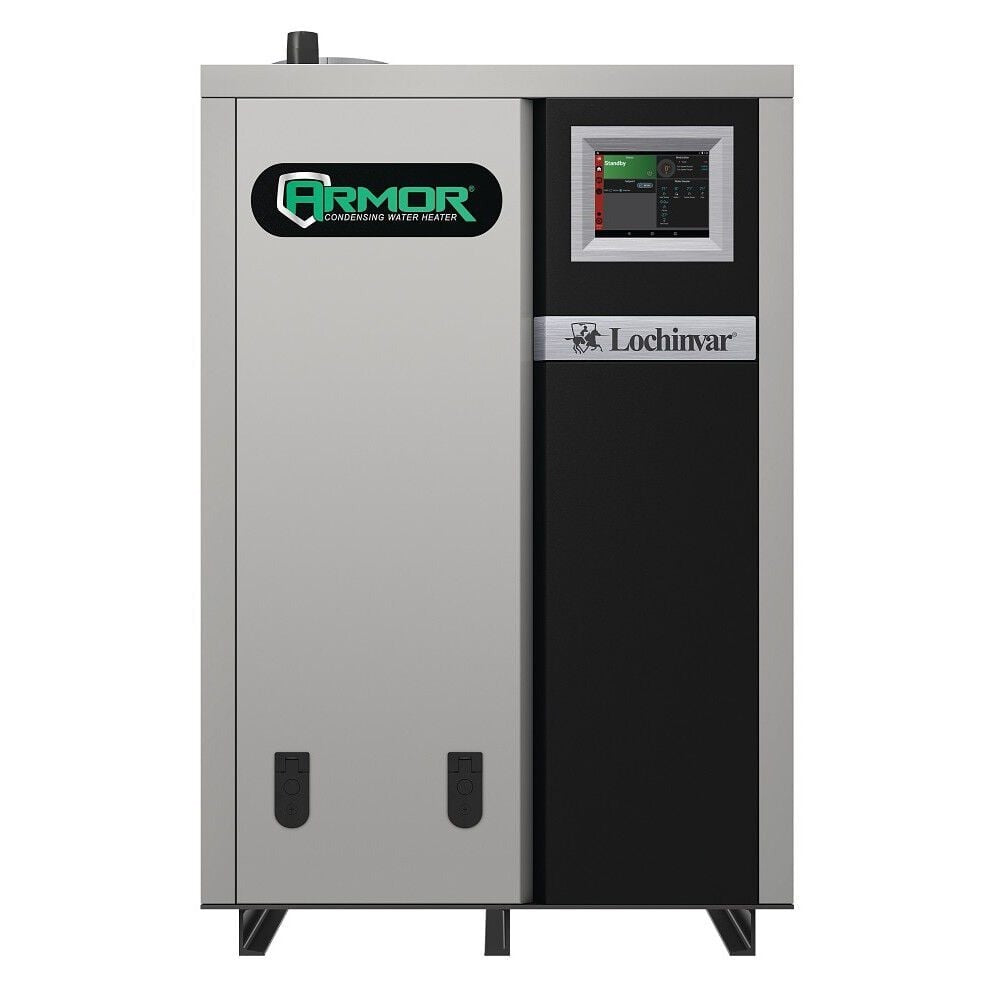

Lochinvar 100299656 Armor condensing water heater 1,500,000 BTU/hr (AWH1500NPM)

Product Description

Lochinvar 100299656 is an Armor AWH1500NPM commercial condensing water heater with 1,500,000 BTU/hr input and 98% thermal efficiency. It features a condensing stainless steel heat exchanger, integrated pump, Smart Touch operating control, CONXUS remote connect capability, and a 5:1 turndown ratio. Designed for indoor commercial installations, it supports up to 150 foot equivalent vent lengths, operates on natural gas, and requires 120V electrical.

• 1,500,000 BTU/hr input, 5:1 turndown (minimum 300,000 BTU/hr) and 98% thermal efficiency
• Condensing stainless steel heat exchanger with integrated pump and Smart Touch control
• CONXUS remote connect capable, low NOx emissions, ENERGY STAR and ASME HLW certified; suitable for long vent runs up to 150' equivalent

Product Highlights

Commercial indoor condensing water heater, 1,500,000 BTU/hr, 98% efficiency, integrated pump

Product Information

Standard Information

• Brand: LOCHINVAR
• Manufacturer Part Number: 100299656
• Country of Origin: US

Technical Specifications

• Brand: Lochinvar
• MPN: 100299656
• Model Number: AWH1500NPM
• Series: Armor
• Input Capacity (Maximum): 1,500,000 Btu/hr
• Input Capacity (Minimum): 300,000 Btu/hr
• Thermal Efficiency: 98%
• Turndown Ratio: 5:1
• Fuel Type: Natural gas
• Power Source: Gas
• Heat Exchanger: Condensing stainless steel
• Operating Control: Smart Touch
• Remote Connect: CONXUS capable
• Pump Included: Yes
• Application: Commercial
• Installation Type: Indoor
• Emissions: Low NOx
• ENERGY STAR Certified: Yes
• ASME Certification: HLW (ASME certified)
• Vent Length Capacity: Up to 150' equivalent vent lengths
• Water Connection Location: Back
• Water Connection Size: 2.5"
• Voltage: 120V
• Height (product): 51.5"
• Height to Gas Valve: 54.25"
