Lochinvar 100233546 fib2228 loc insulation, divider

Product Description

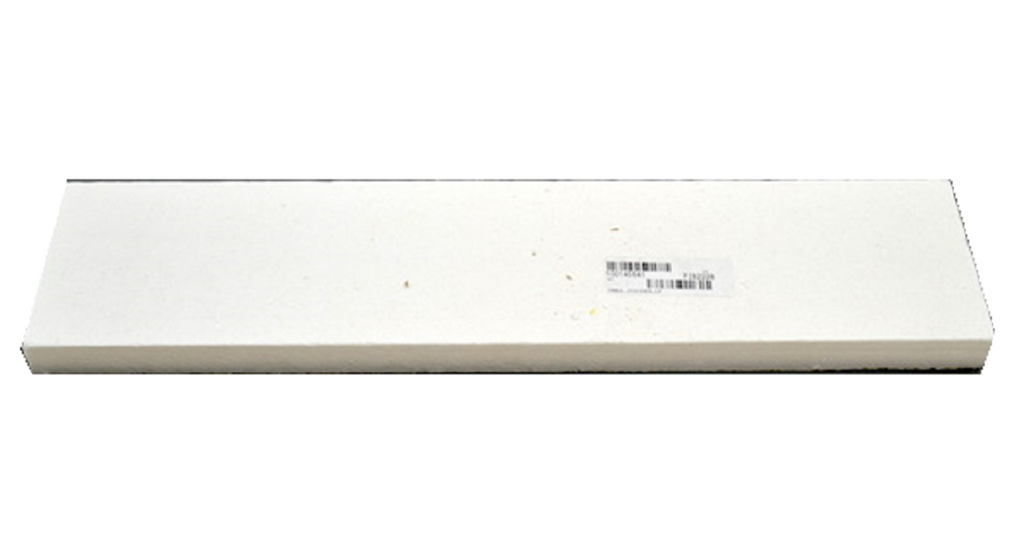

The Lochinvar 100233546 Heat Tile Divider is a fiberboard insulation component for combustion chambers in commercial boilers and water heaters. Engineered for high-performance thermal management, it maintains heat tile assembly integrity and ensures precise airflow. This divider isolates high-temperature zones, protecting sensitive internal controls from radiant heat. As an OEM heat tile, it prevents flue gas bypass and sooting, crucial for energy efficiency and thermal performance in Copper-Fin II series, A.O. Smith, Lochinvar Knight, or Power-Fin units.

• Optimized Thermal Isolation: High-grade fiberboard construction resists extreme combustion temperatures to prevent heat soak.
• Precision Fitment: Eliminates gaps in the tile assembly, ensuring direct spark ignition and proper flame stabilization.
• Combustion Integrity: Maintains the required pressure differentials across the heat exchanger for peak efficiency.

Product Highlights

High-grade fiberboard heat tile divider for thermal isolation and precise combustion integrity in commercial boilers and water heaters.

Product Information

Standard Information

• Brand: LOCHINVAR
• Manufacturer Part Number: 100233546

Technical Specifications

• Brand: Lochinvar
• MPN: 100233546
• Part Number: FIB2228 LOC
• Component Type: Heat Tile Divider
• Material: Fiberboard insulation
• Series Compatibility: Copper-Fin II series (Models 987�2067)
• Unit Compatibility: A.O. Smith commercial units, Lochinvar Knight or Power-Fin units
• Temperature Rating: 500�F+
