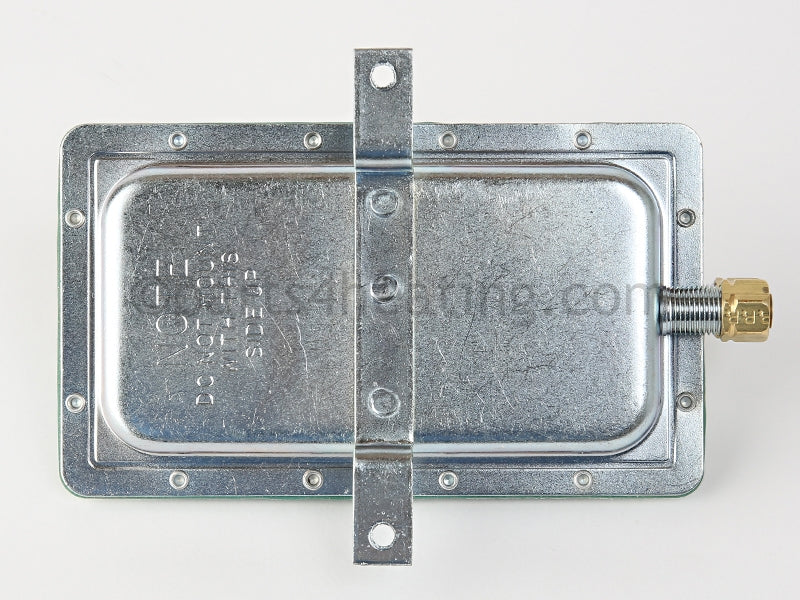

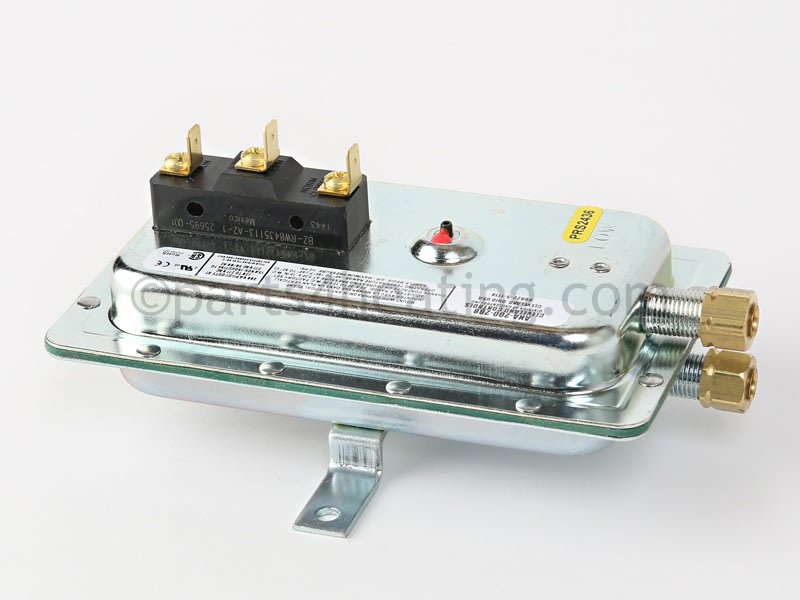

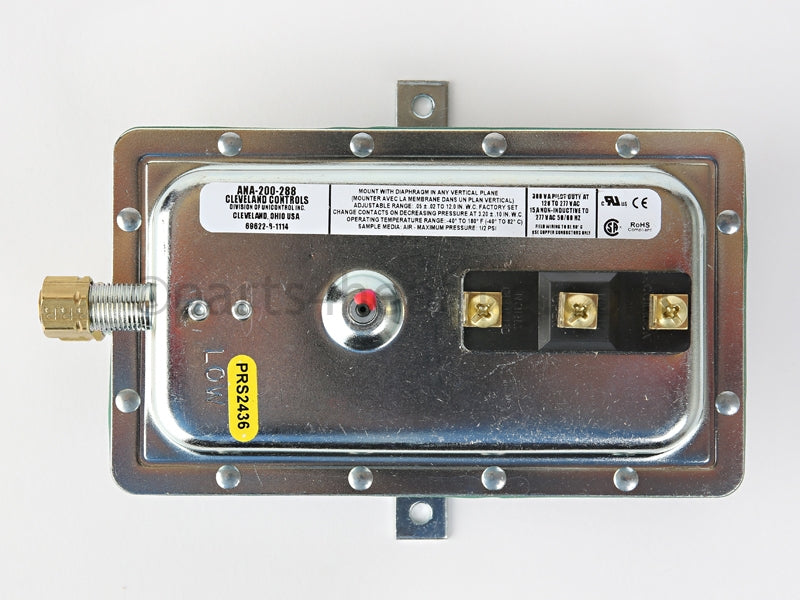

LOCHINVAR 100166181 Low Air Switch PRS2436

Product Description

The LOCHINVAR Low Air Switch, part number PRS2436, is suitable for various LOCHINVAR models including PB 1001, PF 1001, PB 1002, and PF 1002. This switch operates on pilot duty rated at 300 VA from 120 to 277 Volts AC and handles up to 15 Amperes non-inductive to a maximum of 277 Volts AC at 50/60 Hz. It features an adjustable range and is factory set. The device measures air samples and can withstand a maximum pressure of 1/2 P.S.I.

• Pilot duty rated at 300 VA from 120 to 277 Volts AC.
• Non-inductive amperage rating of 15 Amperes up to 277 Volts AC at 50/60 Hz.
• Operating temperature range of -40 to 180 degrees Fahrenheit.

Product Highlights

This switch offers reliability and efficiency in air sampling applications within heating systems.

Product Information

Standard Information

• Brand: LOCHINVAR
• MPN: 100166181

Technical Specifications

• Pilot Duty: 300 VA at 120 to 277 Volts AC
• Non-Inductive Amperage: 15 Amperes to 277 Volts AC 50/60 Hz
• Adjustable Range: .05 +/- .02 to 12.0 in. W.C.
• Operating Temperature: -40 to 180 F
• Sample Media: Air
• Maximum Pressure: 1/2 P.S.I.
