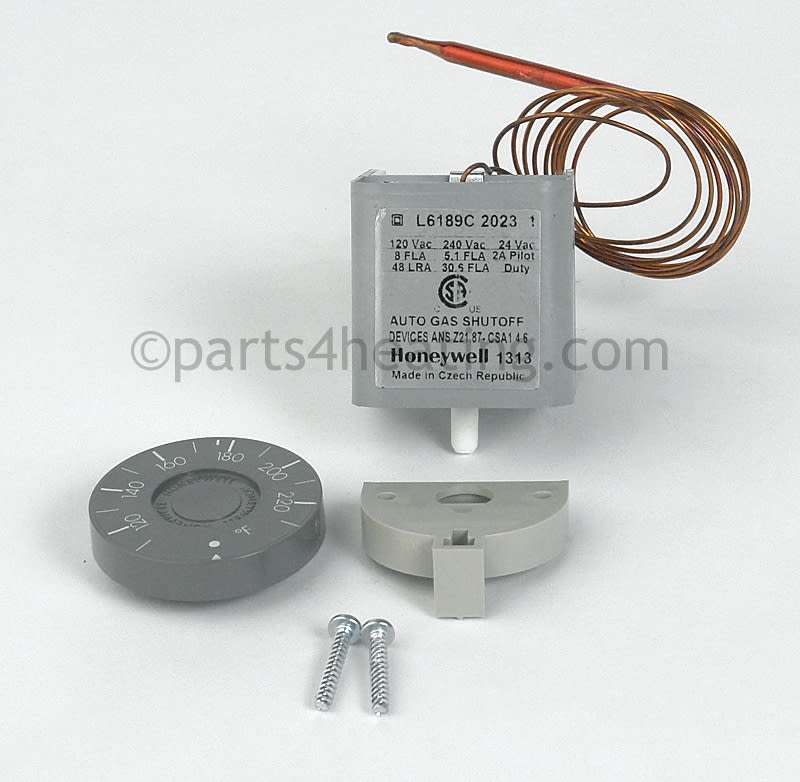

Lochinvar 100148394 Thermostat Hi Limit with Manual Reset

Product Description

The Lochinvar 100148394 is a high limit thermostat designed specifically for various Lochinvar boilers and water heaters. This thermostat acts as a safety device that interrupts the circuit when it detects a high temperature, requiring a manual reset to restore operations.

• High limit thermostat that serves as a safety mechanism.
• Manual reset capability for user control.
• Compatible with Copper-Fin CB/CW/CS boilers and water heaters.

Product Highlights

This thermostat ensures safe operation by monitoring temperature levels. Ideal for use in multiple Lochinvar models, it provides reliability and safety in heating applications.

Product Information

Standard Information

• Brand: Lochinvar
• Type: Manual Reset

Technical Specifications

• MPN: 100148394
• Voltage Rating: 120/240 V
• Full Load Amperage at 120V: 8 A
• Full Load Amperage at 240V: 5.1 A
• Locked Rotor Amperage at 120V: 48 A
• Locked Rotor Amperage at 240V: 30.6 A
• VA Rating: 2A at 24 VAC Pilot Duty
• Length: 5.65 inches
• Width: 5.15 inches
• Height: 2.05 inches
