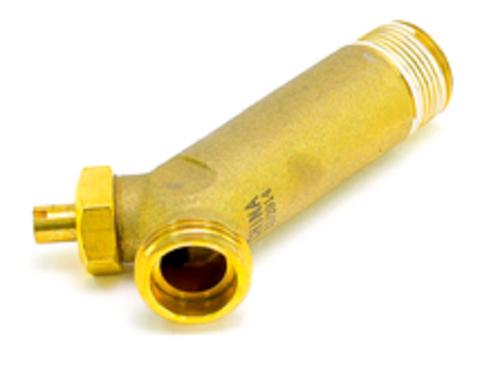

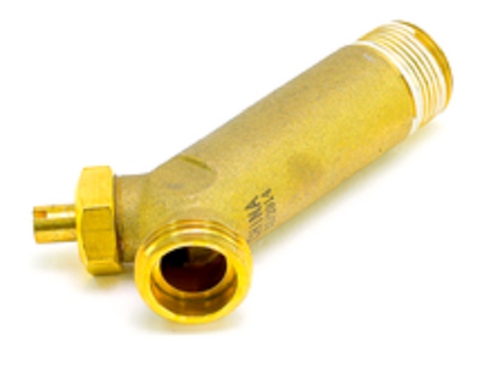

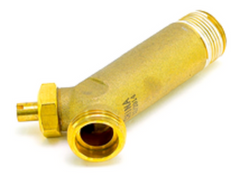

Lochinvar 100109606 Valve 3/4 inch Replacement 26273-6, 9003907015

Product Description

The LOCHINVAR 100109606 is a professional-grade 3/4 inch brass drain valve designed for high-efficiency water heaters and boiler systems. This OEM replacement part features a 3-inch shank, providing clearance for insulated tank jackets and ensuring an accessible discharge point. Its heavy-duty brass construction withstands thermal cycling and sediment buildup, maintaining a leak-free seal. The 3/4 inch NPT male inlet connects securely to the tank, while the standard hose thread outlet allows for efficient evacuation. It is a direct-fit solution for units previously using part numbers 26273-6 and 9003907015.

• Extended 3-Inch Shank: Designed to penetrate thick tank insulation for easy tool access and drainage.
• Durable Brass Body: Resists high-temperature degradation and prevents cross-threading issues.
• High-Flow Orifice: Provides superior flushing capability to clear calcium and lime scale buildup.

Product Highlights

Heavy-duty brass drain valve with 3-inch shank for water heaters and boilers, ensuring efficient sediment removal.

Product Information

Standard Information

• Brand: LOCHINVAR
• Manufacturer Part Number: 100109606

Technical Specifications

• MPN: 100109606
• Valve Type: Drain Valve
• Material: Heavy-Duty Brass
• Shank Length: 3 inches
• Inlet Connection: 3/4 inch NPT Male
• Outlet Connection: Standard Hose Thread
• Part Type: OEM Replacement
• Compatible Part Numbers: 26273-6, 9003907015
• Application: High-efficiency water heaters and boiler systems
• Category: Control Valve
