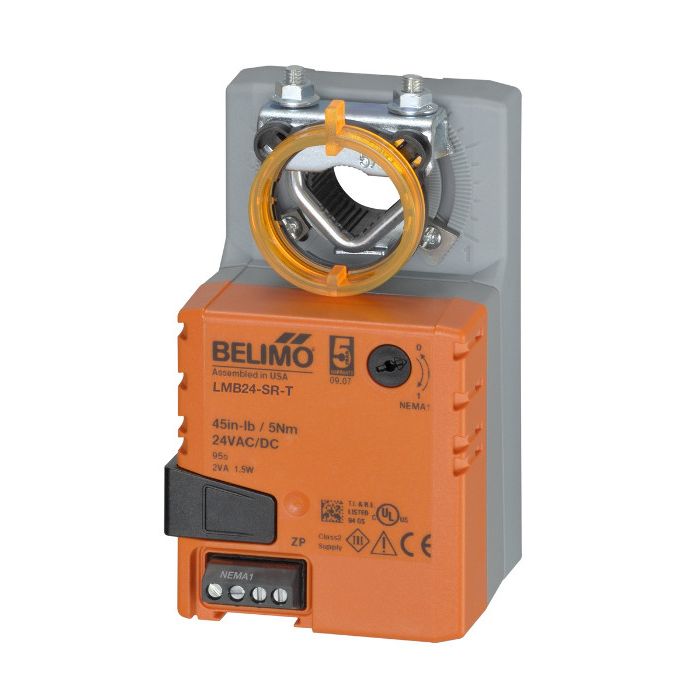

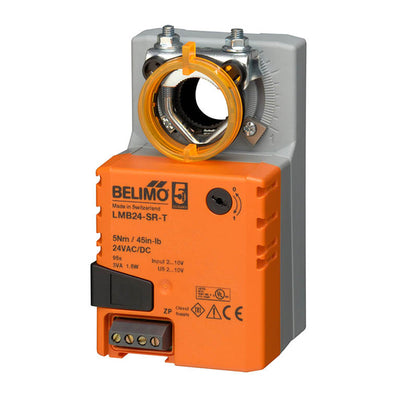

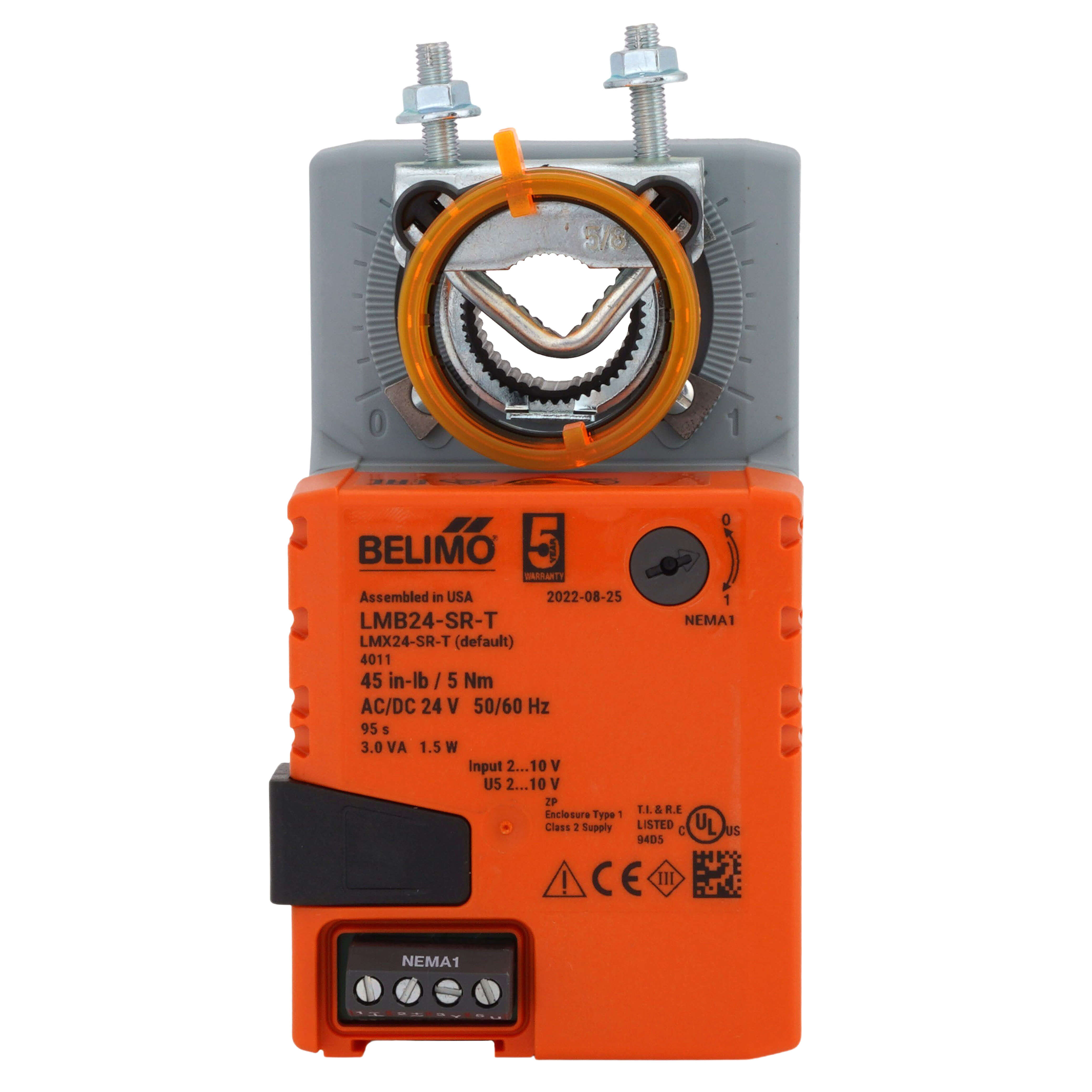

Belimo LMB24-SR-T Direct Coupled Actuator 45 in-lb

Product Description

The Belimo LMB24-SR-T is a direct coupled actuator designed for HVAC systems. This actuator provides a torque of forty-five inch-pounds and operates on 24 VAC power supply. It accepts control signals of two to ten VDC or four to twenty mA, making it suitable for various applications.

• Sensorless brushless DC motor for improved accuracy.

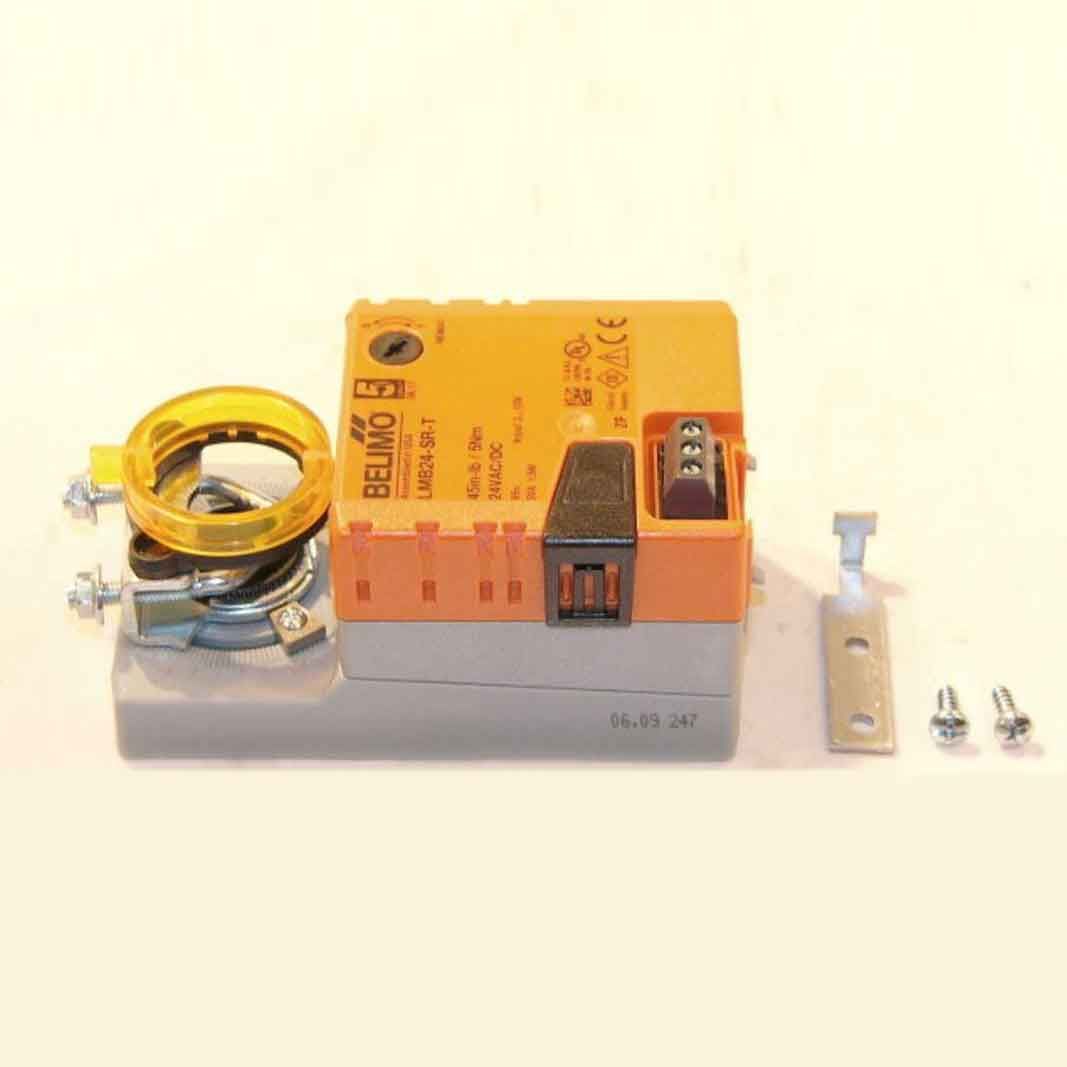

• Electronic overload protection and anti-rotation strap included.
• Simple installation directly to damper shafts from one-fourth inch to five-eighths inch in diameter.

Product Highlights

This actuator is effective for proportional modulation of dampers in heating, ventilation, and air conditioning systems. It features an easy manual override, and a visual indicator shows the actuator's position.

Product Information

Standard Information

• Brand: Belimo
• MPN: LMB24-SR-T

Technical Specifications

• Actuator Type: Non fail-safe
• Torque: 45 inch-pounds
• Power Supply: 24 VAC/DC
• Control Signal: 2 to 10 VDC, 4 to 20 mA
• Electrical Connection: Screw terminal
• Temperature Range: -22°F to 122°F
• Running Time: 95 seconds
• Housing: NEMA 2, IP54
