LLOYD INDUSTRIES CRD50-NI-BT-26GS-EA6X6X4

Product Description

The LLOYD INDUSTRIES CRD50-NI-BT-26GS-EA6X6X4 is a ceiling radiation damper and box assembly rated for one hour. This product is UL listed under UL-555C, ensuring compliance for safety and performance. It is suitable for installation in ceiling/floor and ceiling/roof assemblies, including models L558, L562, L563, L574, L585, P533, P544, P545, and P547.

• UL listed ceiling radiation damper under UL-555C
• Featuring a standard fusible link rated at 165°F
• Constructed from 22 gauge galvanized steel

Product Highlights

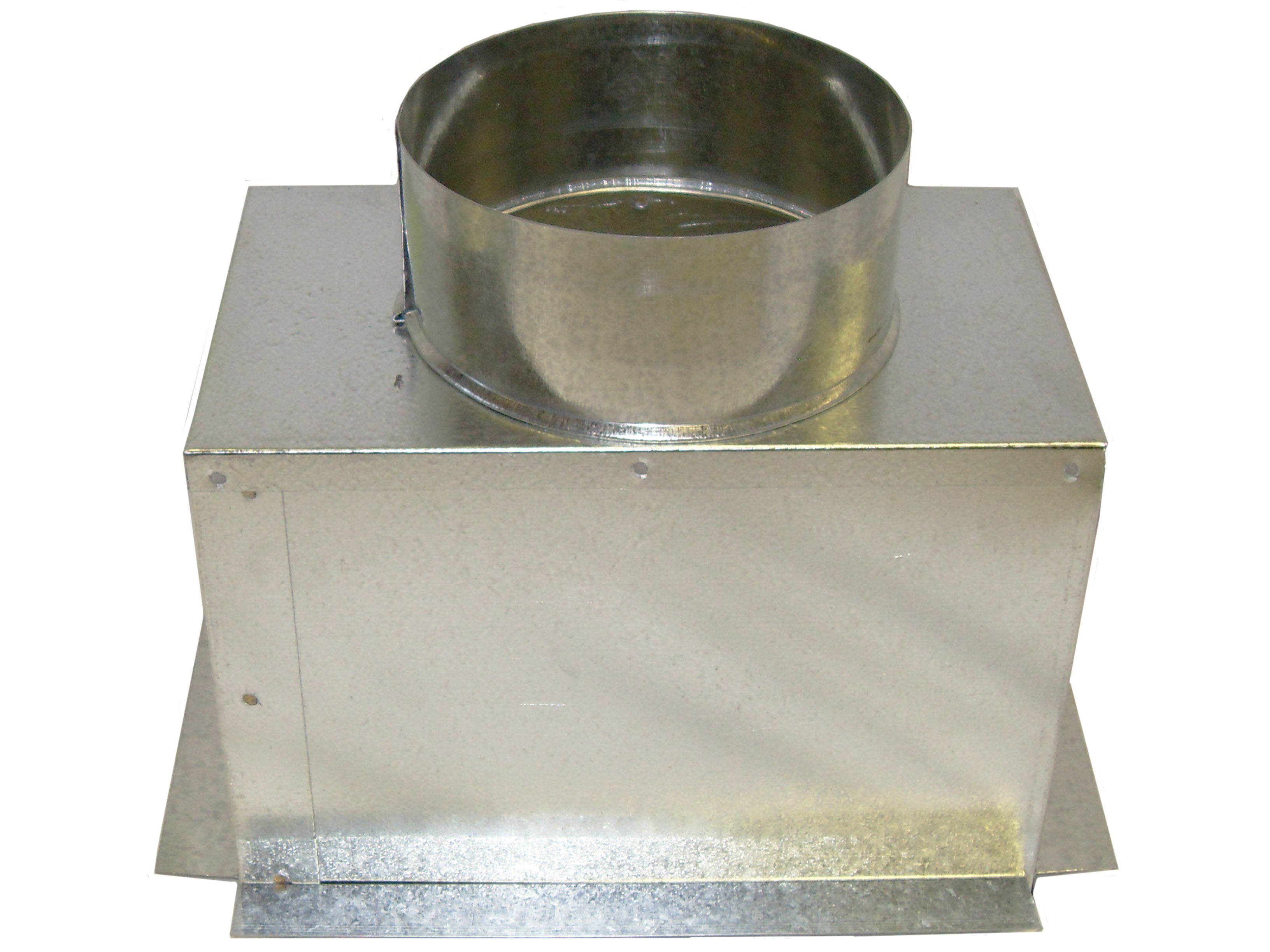

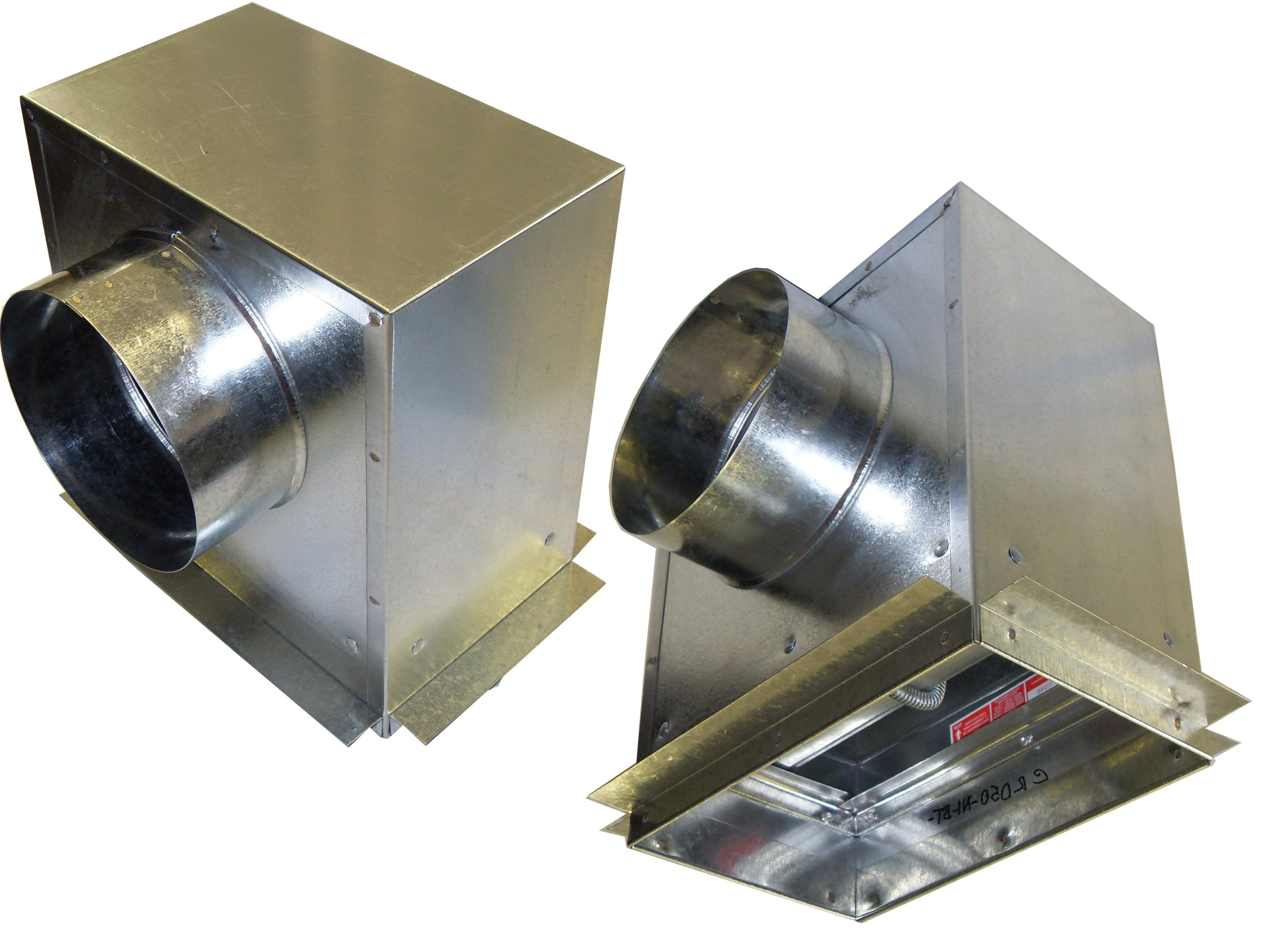

This damper is designed to provide fire resistance in various ceiling assemblies. It includes a rectangular damper, a non-insulated galvanized steel register box, and a side outlet with a round collar for easy integration into existing ventilation systems.

Product Information

Standard Information

• Brand: LLOYD INDUSTRIES
• MPN: CRD50-NI-BT-26GS-EA6X6X4

Technical Specifications

• Rating: UL listed ceiling radiation damper UL-555C
• Fusible Link: 165°F standard
• Blades: 22 Ga. galvanized steel with ceramic fiberglass cover
• Frame: Roll formed 22 Ga. galvanized steel
• Outer Box: 26 Ga. galvanized steel
• Collar: Roll formed 26 Ga. galvanized steel with roll formed 1/4 beading
• Insulation: None provided
