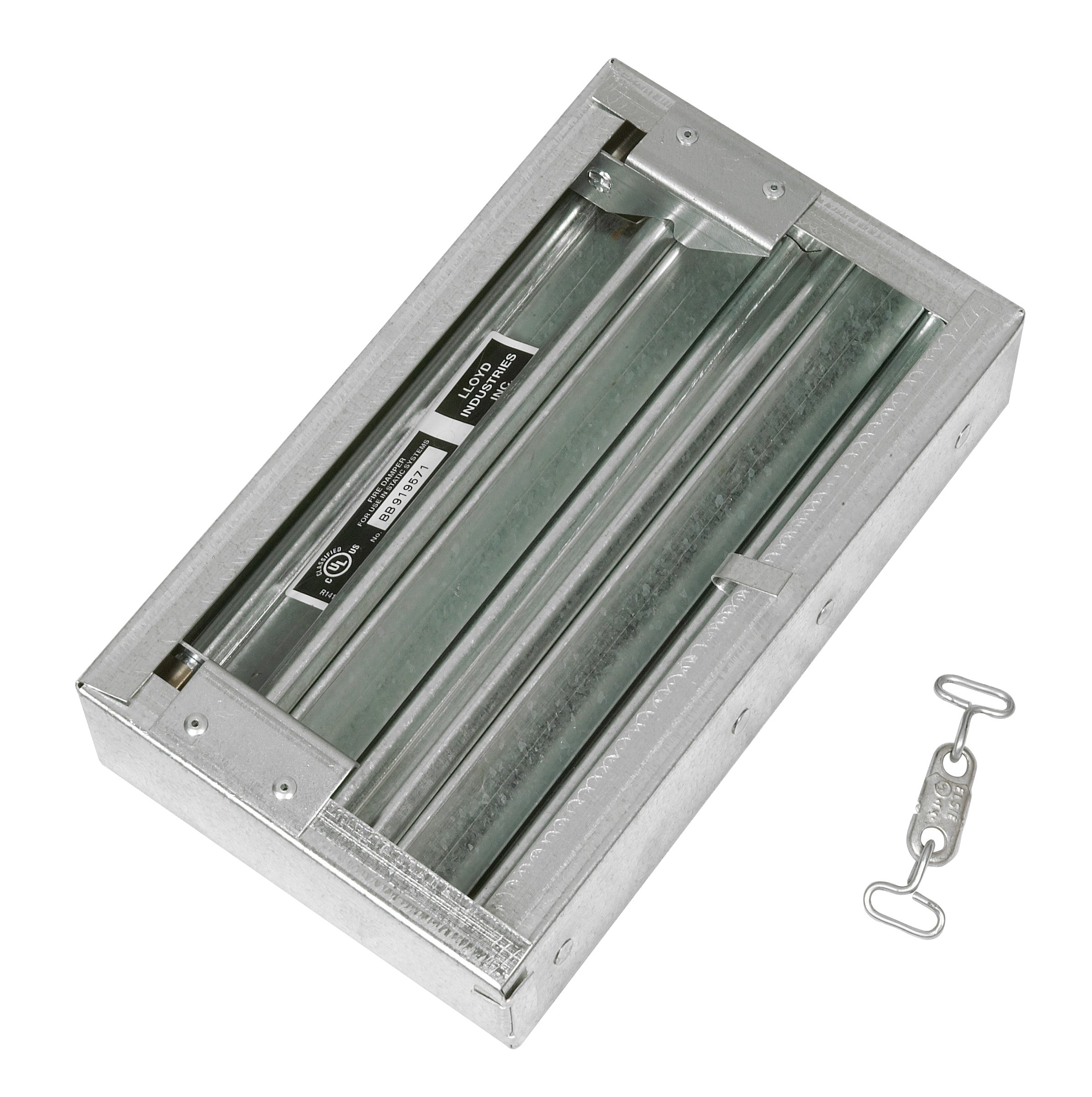

Lloyd Industries 75DH12X10 1-1/2 Hour Thin Fire Damper

Product Description

The Lloyd Industries 75DH12X10 is a reliable fire damper that provides one and a half hours of fire protection in HVAC systems. This product features a thin-line design with a two-inch profile. It is crafted with a frame and blade made from 22-gauge galvanized steel for durability. The closure mechanism employs a negator stainless steel spring and a fusible link that activates at one hundred sixty-five degrees Fahrenheit.

• Fire protection rating of 1-1/2 hours.
• Constructed from 22-gauge galvanized steel.
• Automatic closure with a fusible link at 165°F.

Product Highlights

This fire damper is designed for both horizontal and vertical mounting, making it versatile and functional for various applications in HVAC installations.

Product Information

Standard Information

• Brand: Lloyd Industries
• MPN: 75DH12X10

Technical Specifications

• Fire Rating: 1-1/2 Hours
• Frame Material: 22 Ga. Galvanized Steel
• Blade Material: 22 Ga. Galvanized Steel
• Closure Spring Material: Negator Stainless Steel
• Fusible Link Temperature: 165°F
• Mounting: Horizontal or Vertical
• Thin-line: 2 inches
