Lloyd Industries 75AH14X8 1 1/2 Hour Classic Horizontal Fire Damper

Product Description

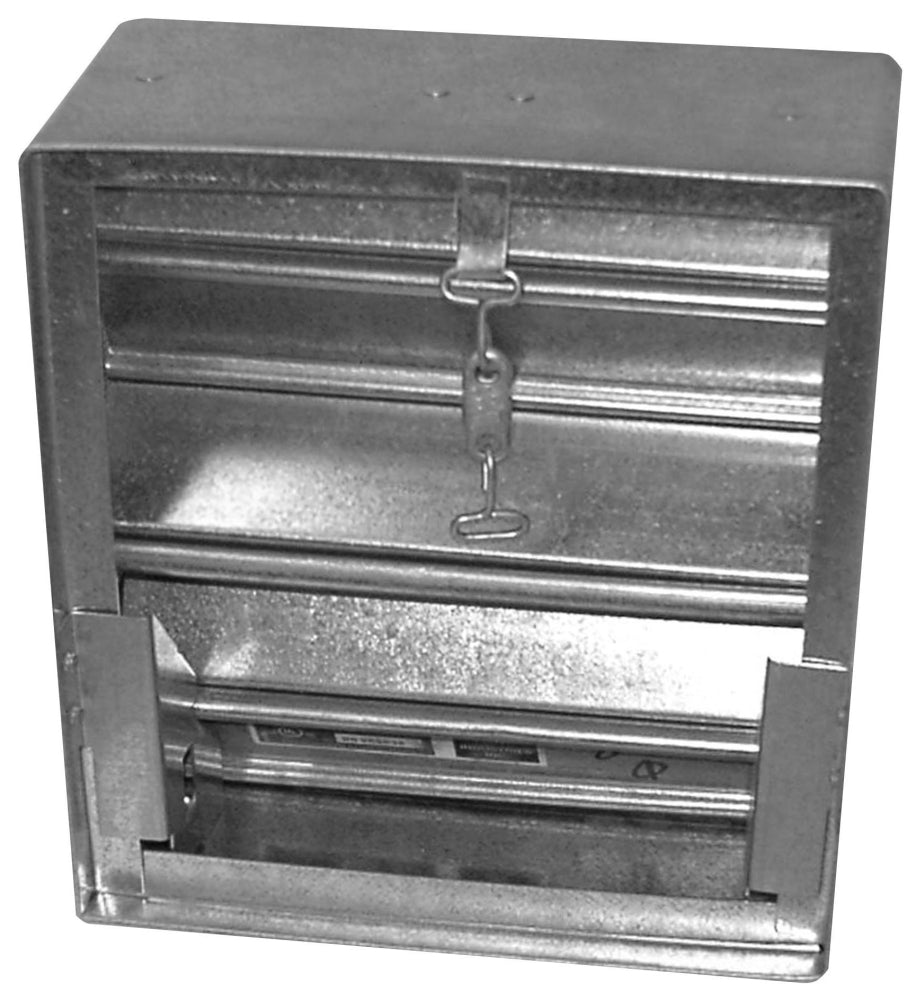

The Lloyd Industries 75AH14X8 is a 1-1/2-hour rated damper built for HVAC systems. This product is designed to stop fire from passing through ductwork. It uses sturdy interlocking steel blades and a robust steel frame for durability. The included UL-listed fusible link activates at one hundred sixty-five degrees Fahrenheit, ensuring the damper closes promptly during a fire. It is suitable for installation in walls, floors, and partitions that have fire resistance ratings below two hours.

• 1-1/2 hour fire rating.
• Constructed with twenty-two gauge interlocking steel blades.
• Includes UL listed fusible link rated at one hundred sixty-five degrees Fahrenheit.

Product Highlights

This fire damper is crucial for enhancing fire safety in buildings and ensuring compliance with fire regulations.

Product Information

Standard Information

• Fire Rating: 1-1/2 hours
• Mounting: Horizontal or Vertical

Technical Specifications

• Frame Material: 22 Ga. Galvanized Steel
• Blade Material: 22 Ga. Galvanized Steel
• Closure Spring: Negator Stainless Steel
• Fusible Link Temperature: 165 degrees Fahrenheit
• Application: Wall, Floor, or Partition
