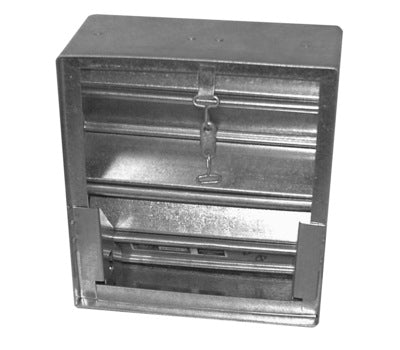

Lloyd Industries 75AH12X10 Fire Damper 12 x 10

Product Description

The Lloyd Industries 75AH12X10 is a fire damper designed for HVAC applications. This model has a size of 12 inches by 10 inches and is approved for horizontal mounting in walls, floors, and partitions. Constructed from 22-gauge galvanized steel, it provides durability and corrosion resistance.

• Features a stainless steel closure spring for reliable operation.
• Includes a fusible link that activates at one hundred sixty-five degrees Fahrenheit.
• Carries a one and a half hour UL fire damper label.

Product Highlights

The product is suitable for use in applications with fire-resistance ratings of less than two hours.

Product Information

Standard Information

• MPN: 75AH12X10
• Brand: Lloyd Industries

Technical Specifications

• Duct Size: 12 x 10 inches
• Fire Rating: 1-1/2 hours
• Frame Material: 22 gauge galvanized steel
• Blade Material: 22 gauge galvanized steel
• Closure Spring: Negator stainless steel
• Fusible Link: 165 degrees Fahrenheit
• Mounting Type: Horizontal or Vertical
