Lloyd Industries 50CRD-96-BT Damper Box 8 inches x 4 inches

Product Description

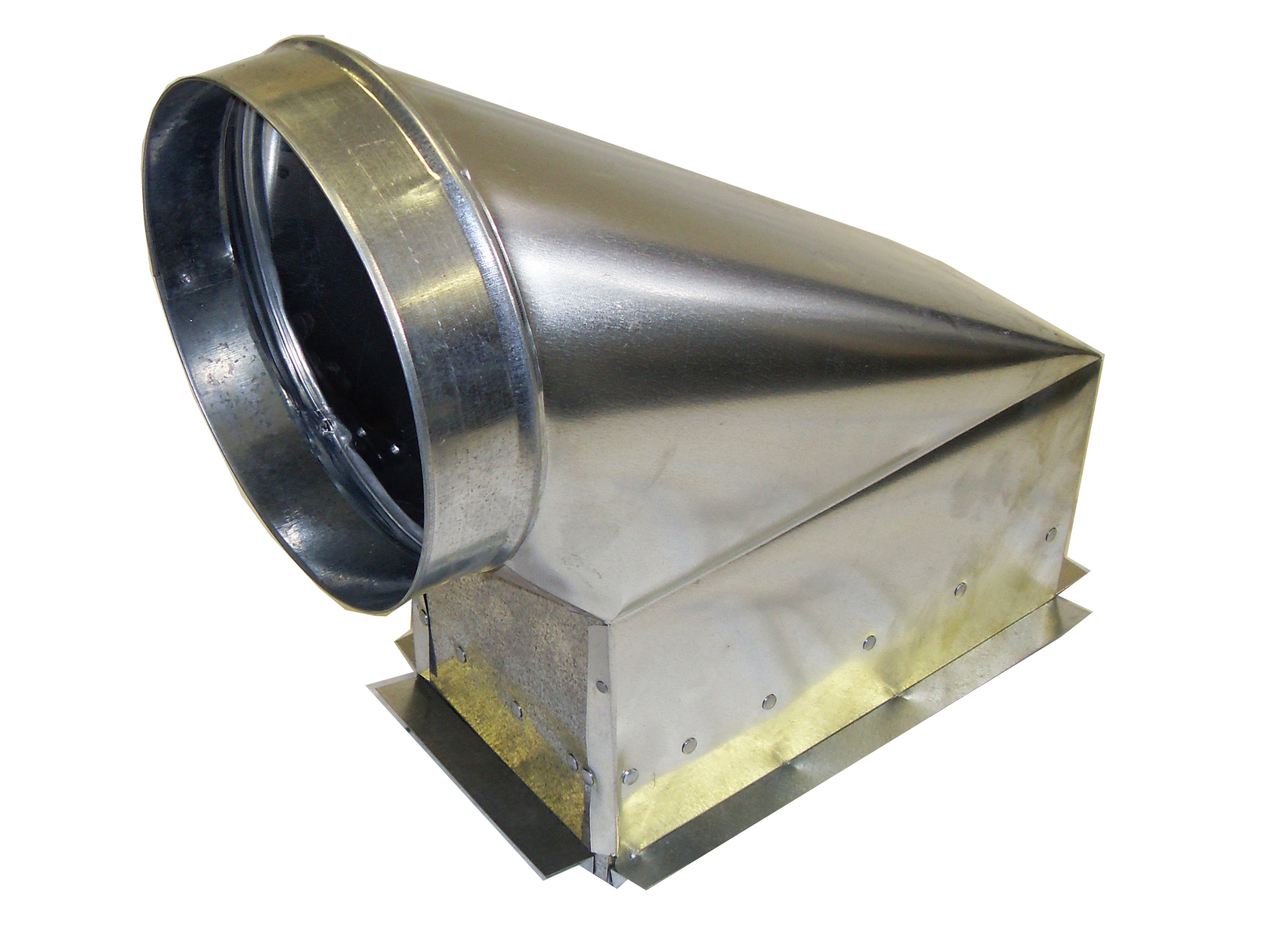

The Lloyd Industries 50CRD-96-BT is a ceiling radiation damper designed for installation in an end boot. This damper is rated for three hours and includes a round collar assembly suited for one-hour rated partitions. It utilizes a fusible link that activates at a standard temperature of one hundred sixty-five degrees Fahrenheit.

• 3-hour rated ceiling radiation damper
• Constructed with a fusible link for safety
• Designed for end boot application

Product Highlights

This damper effectively limits the spread of fire in ventilation systems, offering reliability in critical situations.

Product Information

Standard Information

• Width: 8 inches
• Height: 4 inches

Technical Specifications

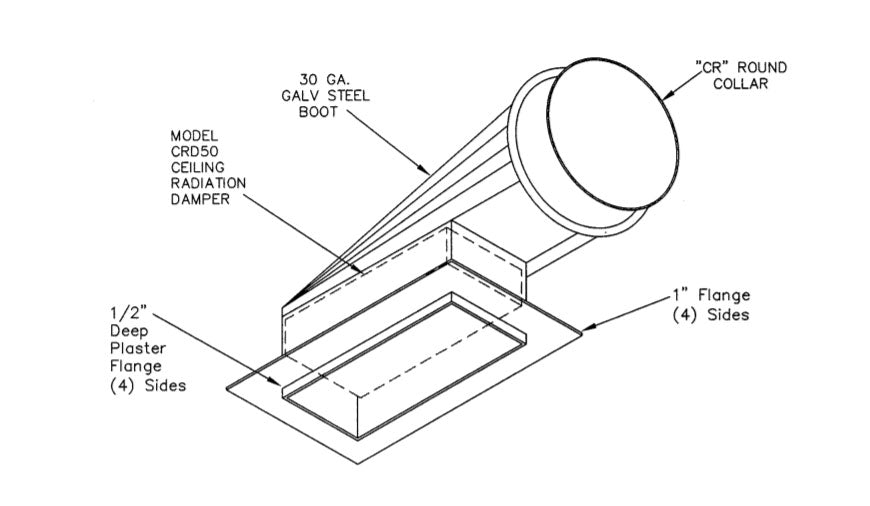

• Damper Type: CRD-96 end
• Fusible Link Temperature: 165 degrees Fahrenheit (optional temperatures available up to 212 degrees Fahrenheit)
• Damper Blades: 22 gauge galvanized steel
• Frame: 22 gauge galvanized steel
• Ceramic Fiber Insulation: Includes fiberglass cover for sizes over eighty square inches
• Boot/Register Box: 30 gauge galvanized steel
• Flanges: 1 inch wide on all four sides
• Round Collar Type: CR collar (nominal size)
• Fiberglass Insulation: Exterior wrapped foil faced fiberglass R-6, field installed
• UL 181 Aluminum Duct Tape: 1-1/2 inches wide
