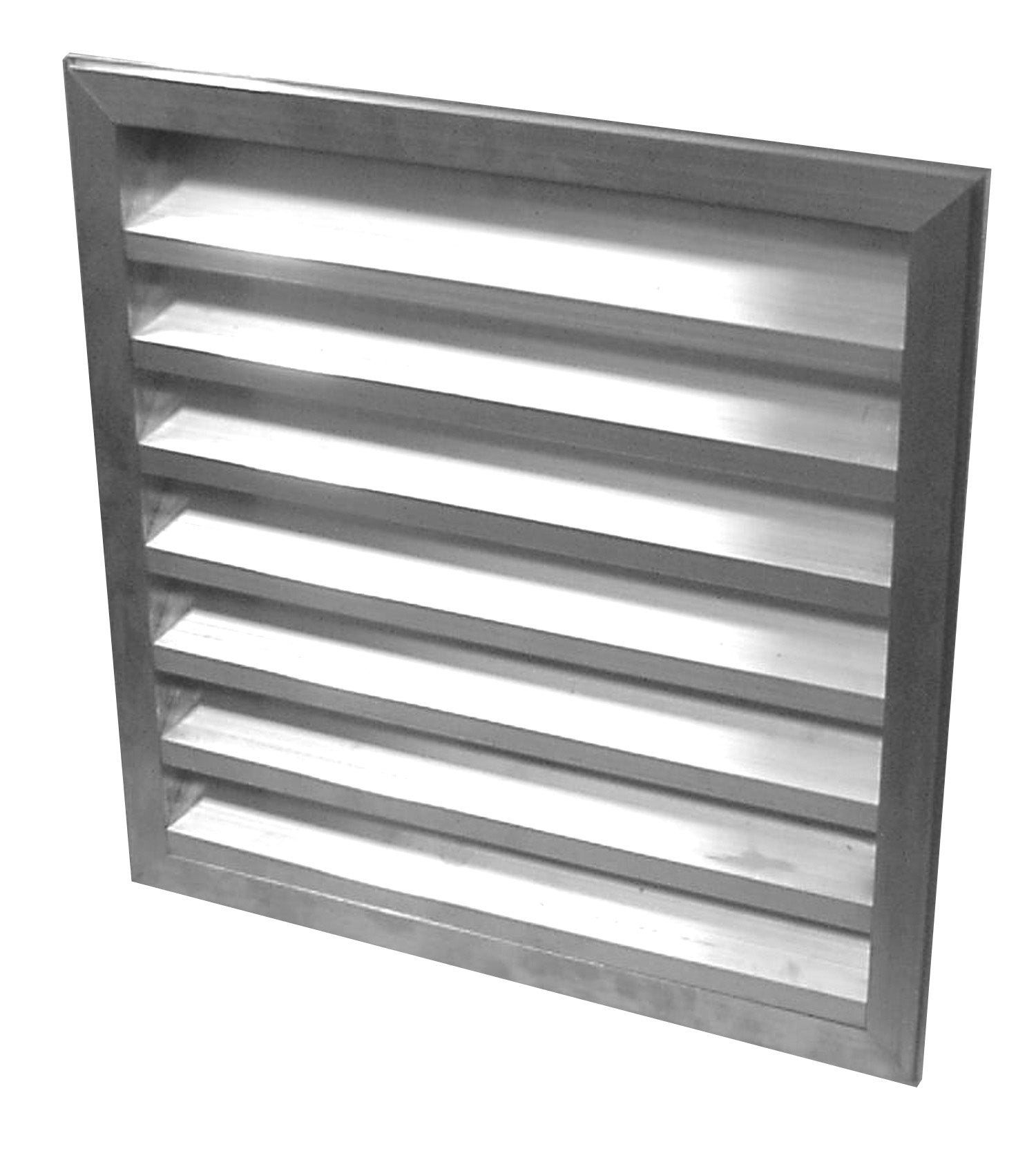

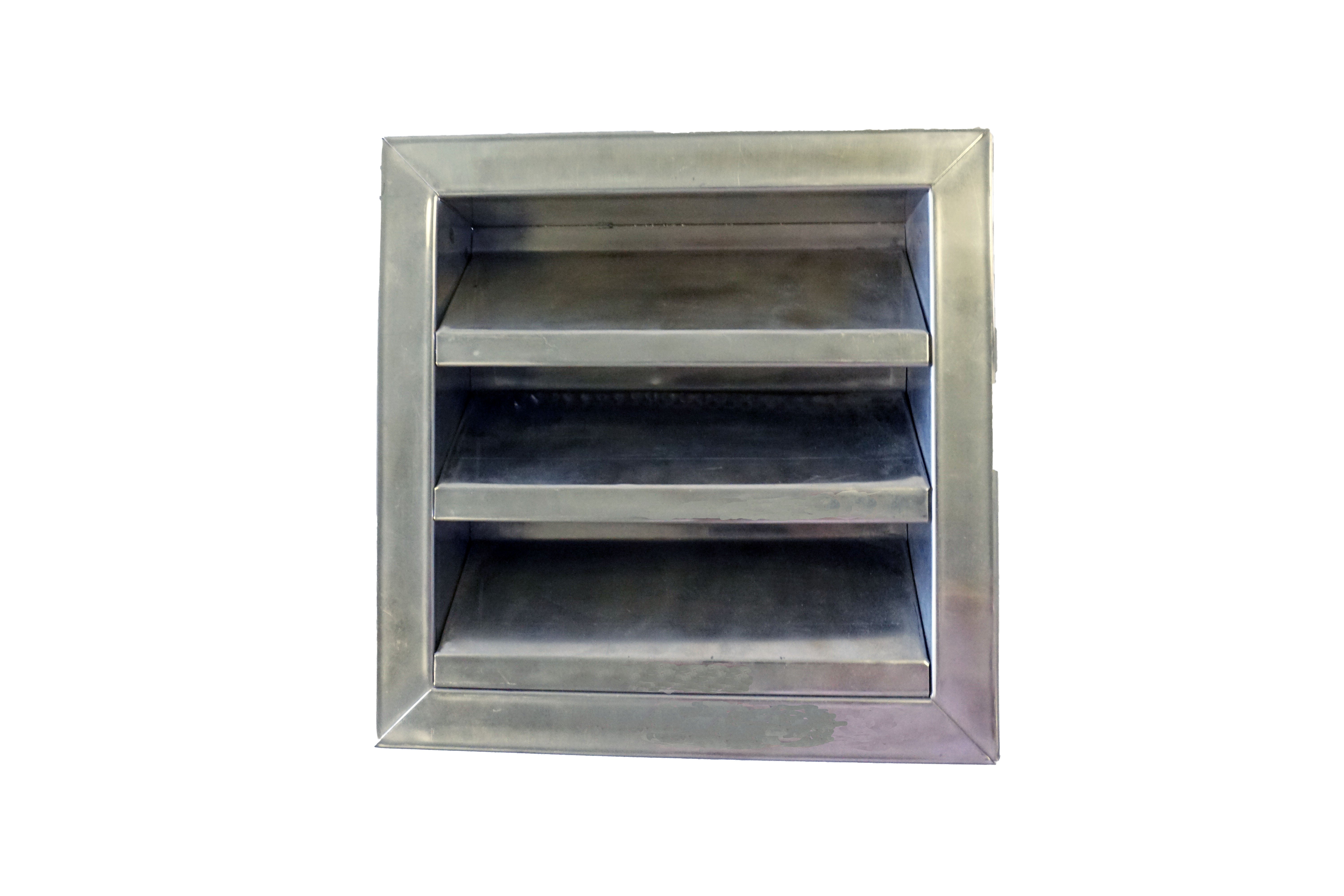

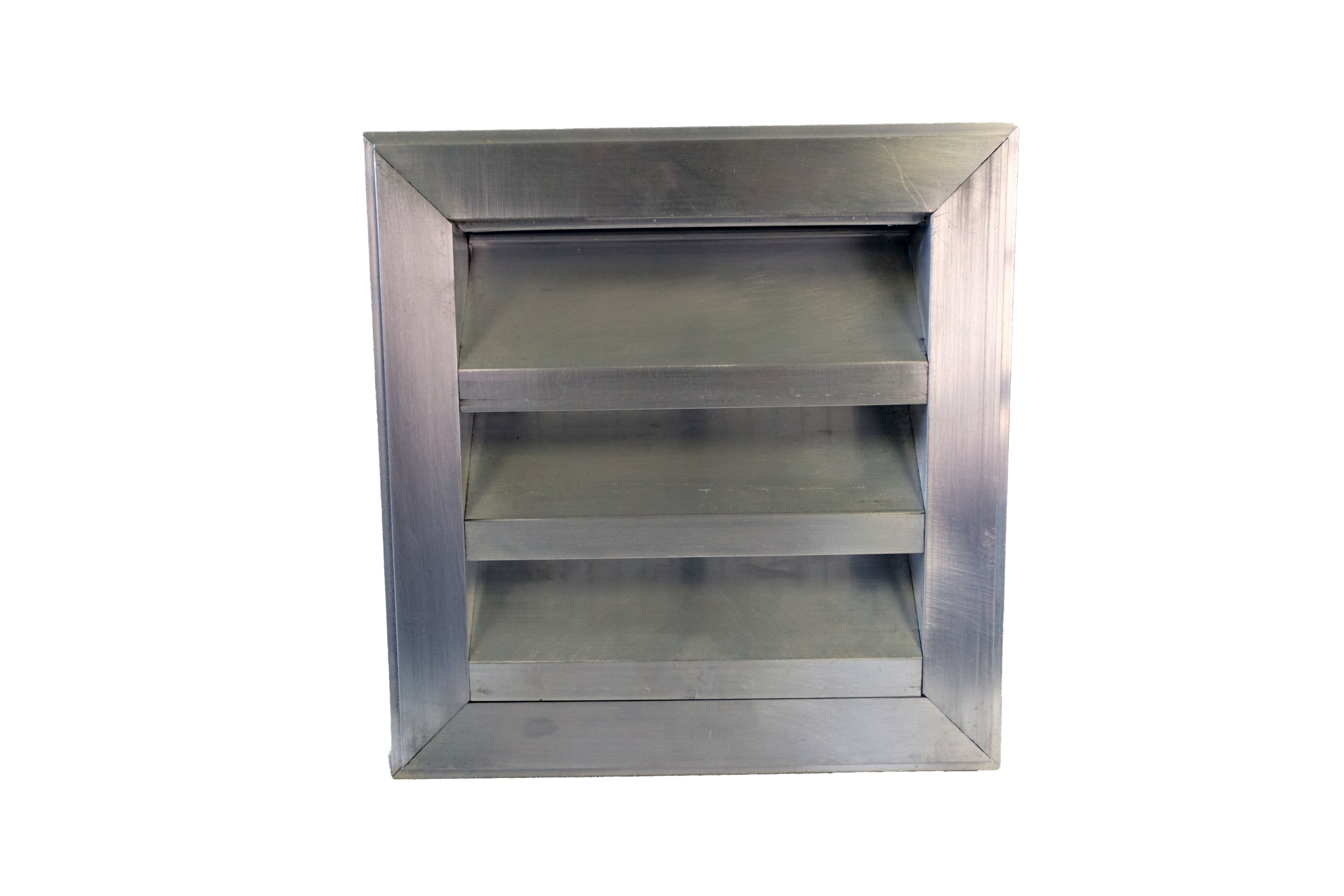

Lloyd Industries 2SRF1212 2 Flanged Frame Louver

Product Description

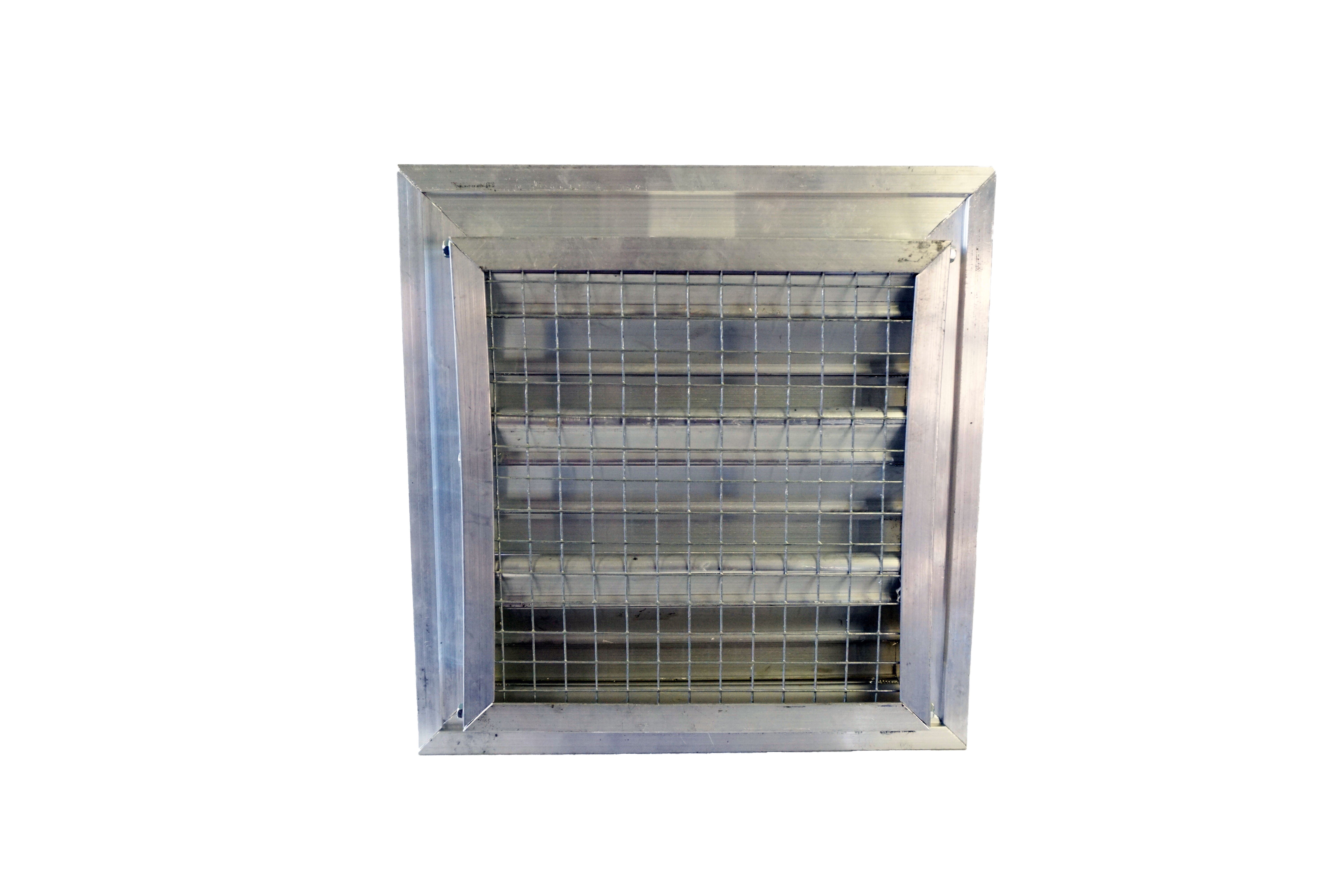

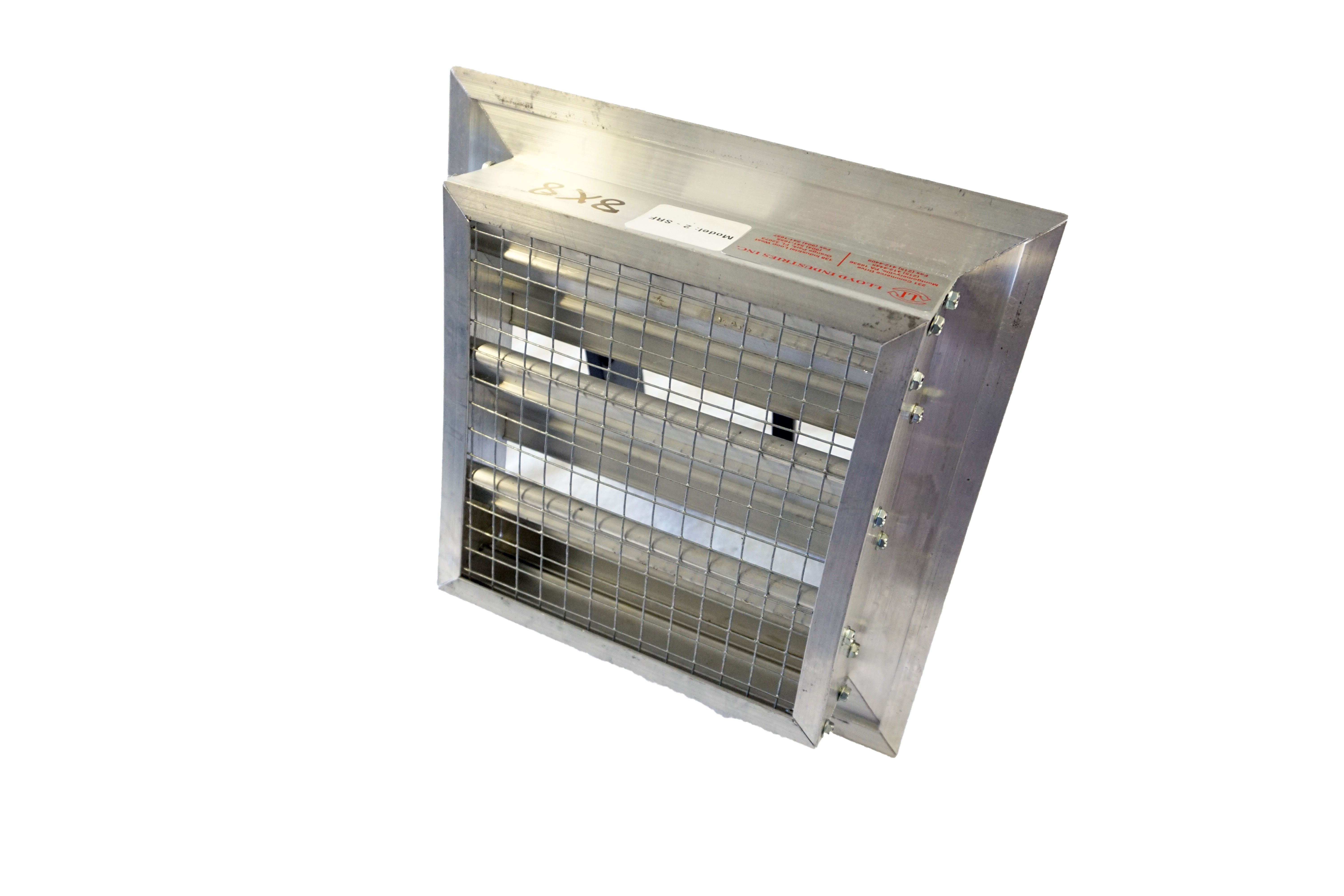

The Lloyd Industries 2SRF1212 is a 2 inch flanged frame louver meant for effective air ventilation systems. It has a frame and blades made from 0.062 inch thick extruded aluminum 6063-T5, featuring a mill finish. This louver is equipped with a bird screen composed of 1/2 x 1/2 galvanized steel to keep birds from entering the ventilation system.

• Constructed from 0.062 inch thick aluminum for durability.
• Includes a galvanized steel bird screen for protection.
• Blades set at a 45-degree angle for optimal airflow.

Product Highlights

Designed for high-performance ventilation, the Lloyd Industries 2SRF1212 provides reliable airflow while preventing debris and bird entry.

Product Information

Standard Information

• Brand: Lloyd Industries
• MPN: 2SRF1212

Technical Specifications

• Frame Material: 0.062 inch thick extruded aluminum 6063-T5, mill finish
• Blade Material: 0.062 inch thick extruded aluminum 6063-T5, mill finish
• Blade Spacing: Approximately 2-1/2 inches center to center
• Fasteners: # 6 x 3/4 inch tek screws
• Blade Angle: 45 degrees
• Screen: Bird screen 1/2 x 1/2 inch galvanized steel
• Flange: 1-1/4 inches
