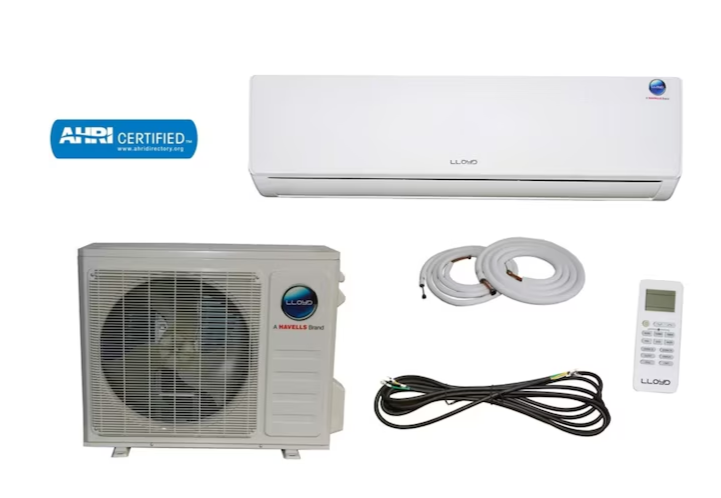

LLOYD GSSHAX7495/96 - Series 1 Single Zone 24000-BTU 20 SEER Ductless Mini Split Air Conditioner Heat Pump Included with 16-ft Line Set 230-Volt

Experience unparalleled comfort in your home with Lloyd North America's top-of-the-line single zone mini split AC units. Designed for ultimate efficiency and performance, our units ensure year-round comfort without breaking the bank. With a generous 7-year manufacturer warranty, you can purchase with peace of mind, knowing you're investing in quality and durability. Equipped with Wi-Fi connectivity, controlling your indoor climate is effortless and convenient. From sweltering summers to chilly winters, our SEER2 compatible units deliver premium efficiency and reliability.

LLOYD GSSHAX7495/96 - Series 1 Single Zone 24000-BTU 20 SEER Ductless Mini Split Air Conditioner Heat Pump Included with 16-ft Line Set 230-Volt

208-230V 24,000 BTU Indoor/Outdoor Mini Split

EFFICIENCY:

Non-Ducted

• SEER2 : 20

• EER2 : 10

• HSPF2 : 8.5

• COP2 : 3.21

PERFORMANCE:

Cooling (Btu/hr)

• Rated :24,000

• Operating Range : 60.8 – 87.8°F

Heating (Btu/hr)

• Rated: 24,400

• Operating Range: 60.8 – 87.8°F

PRODUCT SPECS:

• Compressor: Rotary

• Refrigerant: R-410A

• Factor Charge (lbs): 3.13

• Refrigerant Oil: PVE (FVC50K)

• Airflow Rate (cfm): Indoor 847 | Outdoor 1760

• Sound Pressure level (dBA): 58

PRODUCT DIMENSIONS:

• Outdoor Dims (HxWxD) Inches: 33.26x14.96x27.51

• Outdoor Weight (lbs): 95.9

• Indoor Dims (HxWxD) Inches: 46.69x13.38x10.23

• Outdoor Weight (lbs): 37.5

ELECTRICAL:

• Power Supply: 208-230/60/1

• Maximum Fuse Size: 30A

• Rated Input Consumption (C): 2520W

• Rated Input Consumption (H): 2390W

• Rated Current (C): 11.2A

• Rated Current (H): 10.6A

PIPING:

• Liquid (in): 1/4

• Gas (in): 1/2

• Max. Interunit Piping Length (ft): 115

• Max. Height Difference - IDU to ODU (ft): 49

• Chargeless (ft): 98.5
