Little Giant VCMA-20ULST-PRO-230V Condensate Removal Pump 230 Volt

Product Description

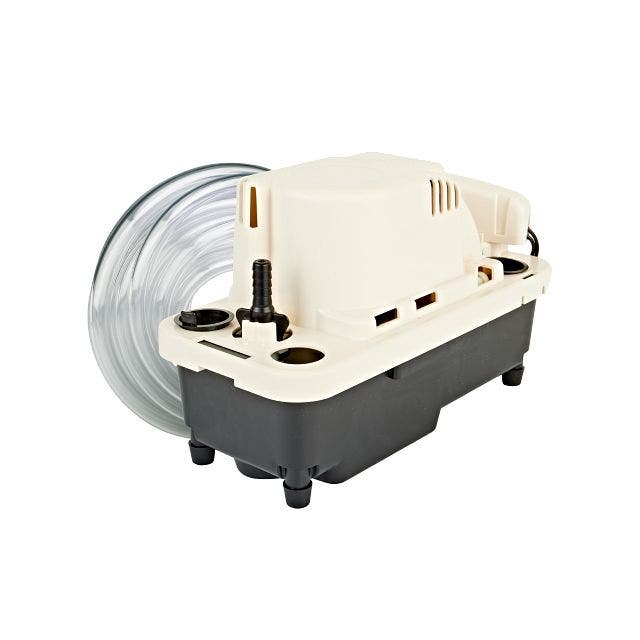

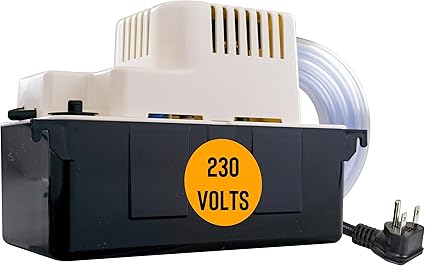

The Little Giant VCMA-20ULST-PRO-230V is a condensate removal pump designed for efficient collection and removal of condensate from air conditioning systems, dehumidifiers, and refrigeration equipment. This device is suitable for use with high-efficiency gas furnace condensate and condensing boilers. The pump features a compact 1/2-gallon tank and includes a barbed discharge adapter, which comes with a check valve for smooth operation. The included power cord is six feet long and fitted with a 230-volt three-prong plug.

• Vertical-type switch minimizes footprint and automates condensate removal.
• Thermally protected motor rated at 1/30 horsepower, ensuring safety and reliability.
• Overflow detection switch alerts when water rises, providing additional safety.

Product Highlights

This condensate pump efficiently removes water, making it ideal for HVAC applications. It allows for a maximum flow rate of 1.33 gallons per minute and can lift water up to seventeen feet high. Use the pump in various residential or light commercial settings where condensate removal is necessary.

Product Information

Standard Information

• Brand: Little Giant
• Material: Acrylonitrile Butadiene Styrene (ABS)

Technical Specifications

• Power source: Corded Electric
• Maximum flow rate: 1.33 Gallons Per Minute
• Maximum lifting height: 17 Feet
• Voltage: 230 Volts
• Motor: 1/30 hp thermally protected, fan-cooled
• Amperage: 0.5 running Amps
• Wattage: 75 Watts
• Discharge: 3/8inch O.D. barbed discharge with check valve
• Power cord: 6' with 3-prong 230-volt plug
• Switch: Vertical switch; on at 2.5inch; off at 1.1inch
• Overflow switch: Dual function Normally Open/Normally Closed
• Vinyl tubing included: Yes; 20' of 3/8inch I.D. vinyl tubing
