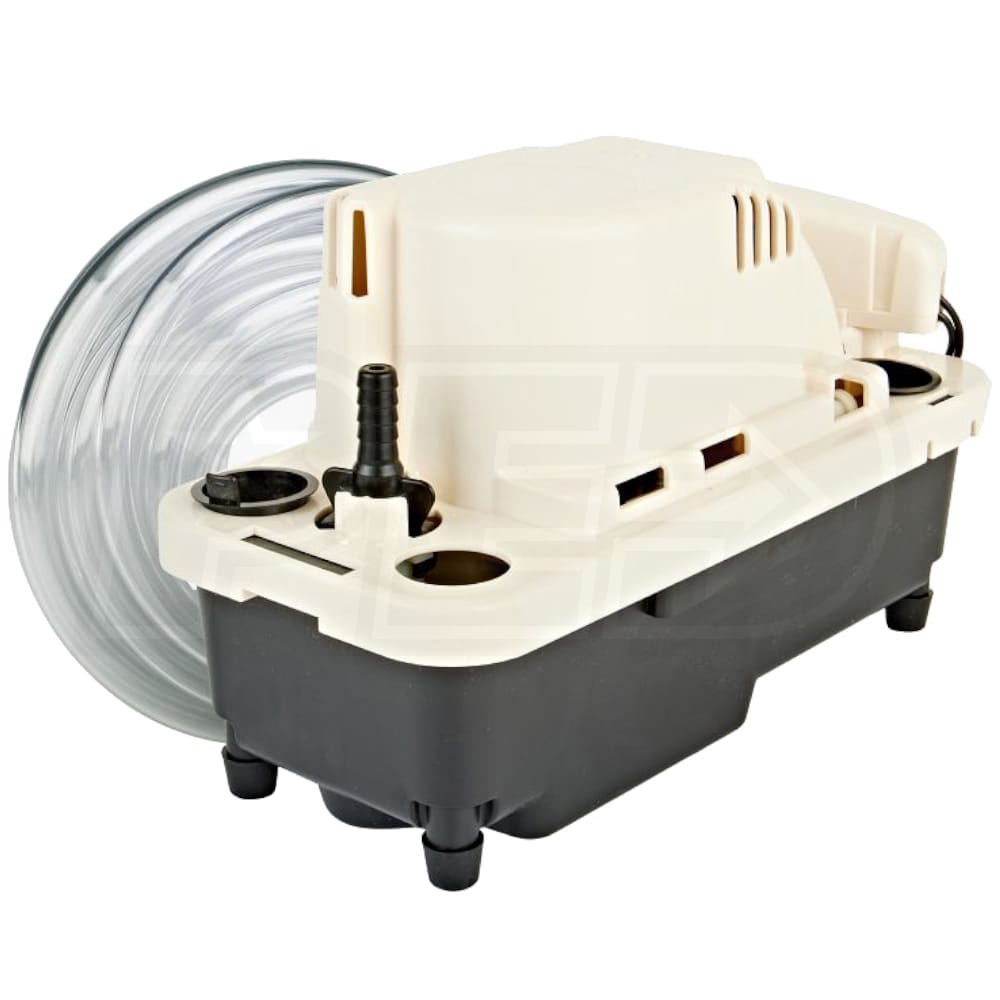

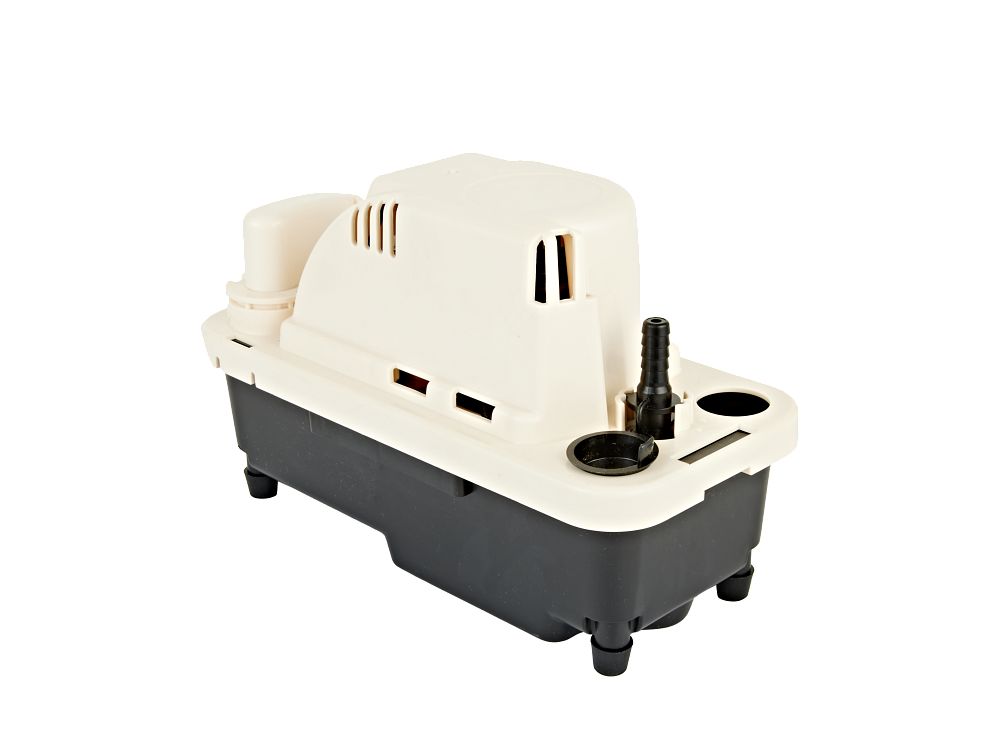

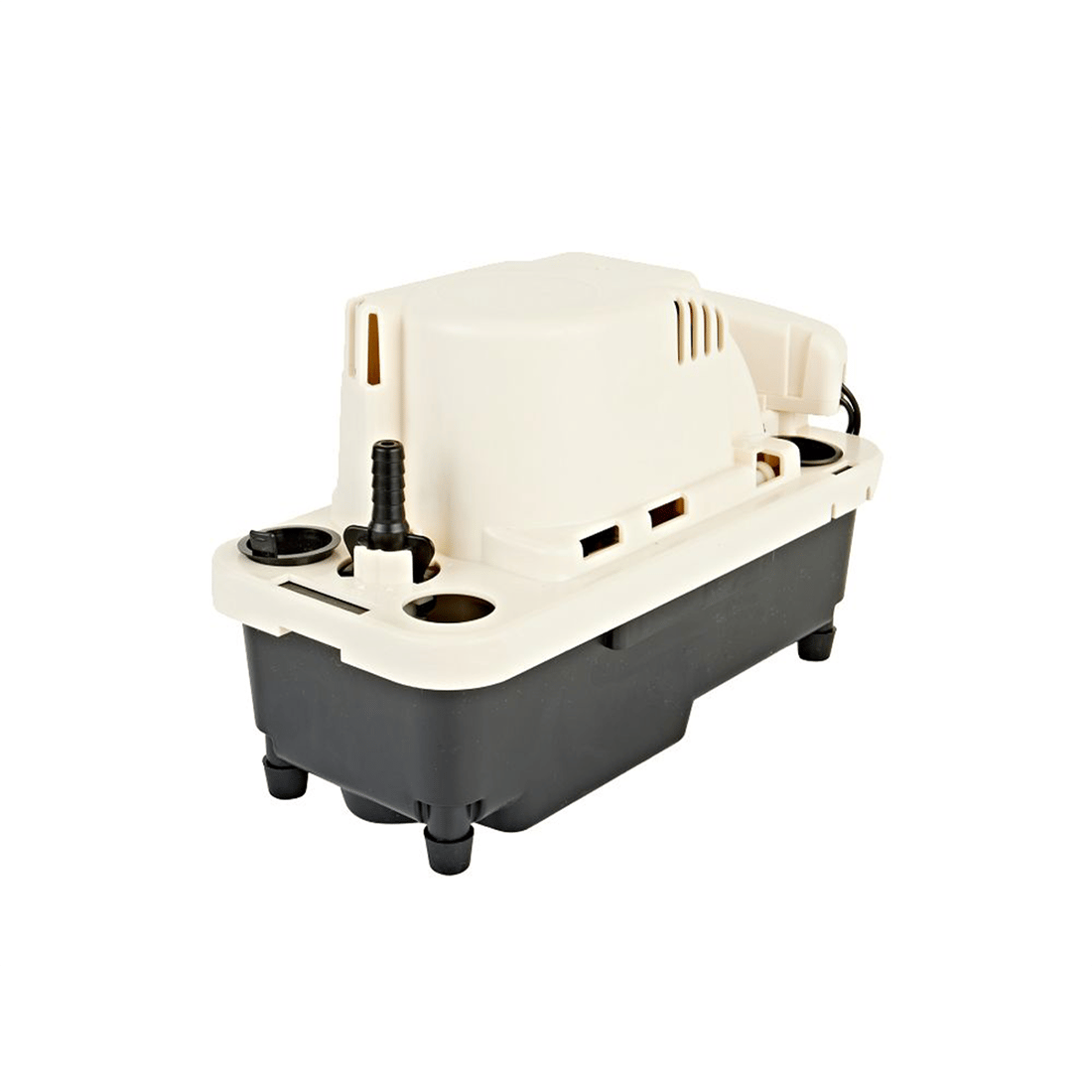

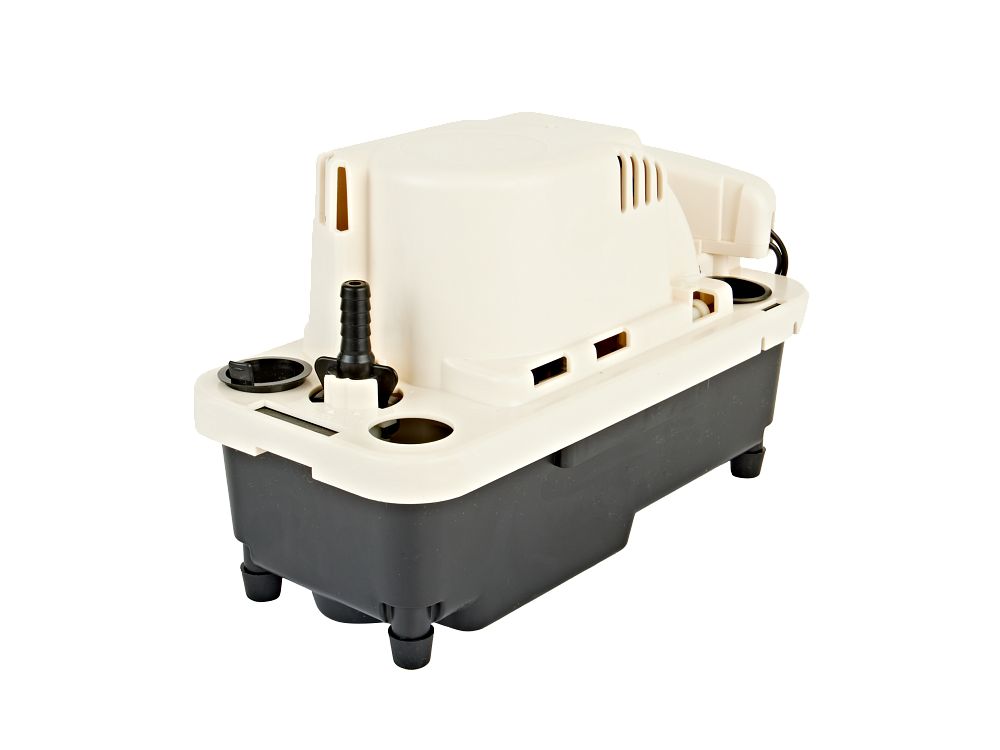

Little Giant VCMA-20ULSPRO Condensate Pump

Product Description

The Little Giant VCMA-20ULSPRO is a condensate pump designed for the automatic collection and removal of condensate from air conditioning, refrigeration, and dehumidification equipment where gravity drainage is not feasible. This product is ideal for use with high-efficiency oil and gas-fired condensing furnace and boiler equipment.

• Features a 1/30 hp high-performance motor.
• Includes a built-in safety overflow switch.
• Equipped with three 1-1/8 inch inlet openings for easy connection.

Product Highlights

The pump is vertical-type with a robust design that supports reliable operation.

Product Information

Standard Information

• Brand: Little Giant
• MPN: VCMA-20ULSPRO

Technical Specifications

• Maximum Flow Rate: 84 gph
• Shut-Off Head: 21 ft
• Input Voltage: 115 VAC
• Frequency: 60 Hz
• Power Consumption: 1.5 Amps
• Maximum Fluid Temperature: 140 °F
• Outlet Diameter: 3/8 inch
• Inlet Diameter: 1-1/8 inch
• Weight: 5 pounds
• Product Dimensions: 10.2 x 4.8 x 6.5 inches
