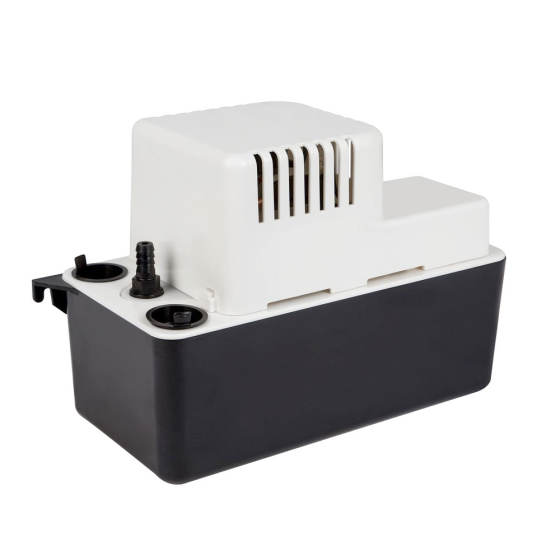

Little Giant VCMA-20ULS115V Condensate Pump 1/30 HP (20 feet Shutoff) VCMA-20ULS/115V

Product Description

The Little Giant VCMA-20ULS115V is a condensate pump with a 1/30 horsepower motor designed for automatic condensate removal in HVAC systems. It operates on 115 V/60 Hz, delivers up to 80 gph at 1', and includes a safety switch and check valve. The unit features an ABS tank (0.33 gal), glass-filled polypropylene semi-open impeller, 20 ft of 3/8" tubing, a 6 ft power cord, and a 20 ft vertical shutoff rated to 140 F (60 C).

• Performance: 80 GPH at 1'; 70 GPH at 5'; 55 GPH at 9'; 25 GPH at 15'; 20 ft shutoff.
• Electrical: 1/30 HP motor, 115 V, 60 Hz, 1.5 A full load, 93 W.
• Construction: ABS tank, glass-filled polypropylene semi-open impeller, 3/8" barbed discharge, includes 20 ft of 3/8" clear tubing and 6 ft power cord.

Product Highlights

Automatic 1/30 HP condensate pump with 80 GPH at 1', 20 ft shutoff, 0.33 gal tank.

Product Information

Standard Information

• Brand: LITTLE GIANT
• Manufacturer Part Number: VCMA-20ULS115V

Technical Specifications

• Brand: Little Giant
• MPN: VCMA-20ULS115V
• Model: VCMA-20ULS115V
• Product name: VCMA-20 Series Condensate Pump
• Input Voltage: 115 V
• Frequency: 60 Hz
• Horsepower: 1/30 HP
• Full load current: 1.5 A
• Power consumption: 93 W
• Capacity: 80 gph @ 1'
• Flow rate @ 1 ft: 80 GPH
• Flow rate @ 5 ft: 70 GPH
• Flow rate @ 9 ft: 55 GPH
• Flow rate @ 15 ft: 25 GPH
• Shut-off (vertical lift): 20 ft / 6.1 m
• Maximum suction lift: 6 m
• Max liquid temperature: 140 F (60 C)
• Tank capacity: 0.33 gal / 1.25 L
• Impeller material: Glass-filled polypropylene
• Impeller type: Semi-open
• Pump body material: Plastic / ABS
• Discharge size/type: 3/8" barbed (9.5 mm)
• Tubing included: 20 ft of 3/8" clear tubing
• Power cord length: 6 ft / 1.83 m
• Check valve: Yes
• Safety switch: Yes
• Continuous duty: No
• Max PSIG: 8.7 PSI
• Dimensions (L x W x H): 11.00 x 5.00 x 7.03 in
• Product weight: 4.39 lb / 1.99 kg
• Operating weight: 5.2 lb
• Certifications / Safety standards: California Prop 65
