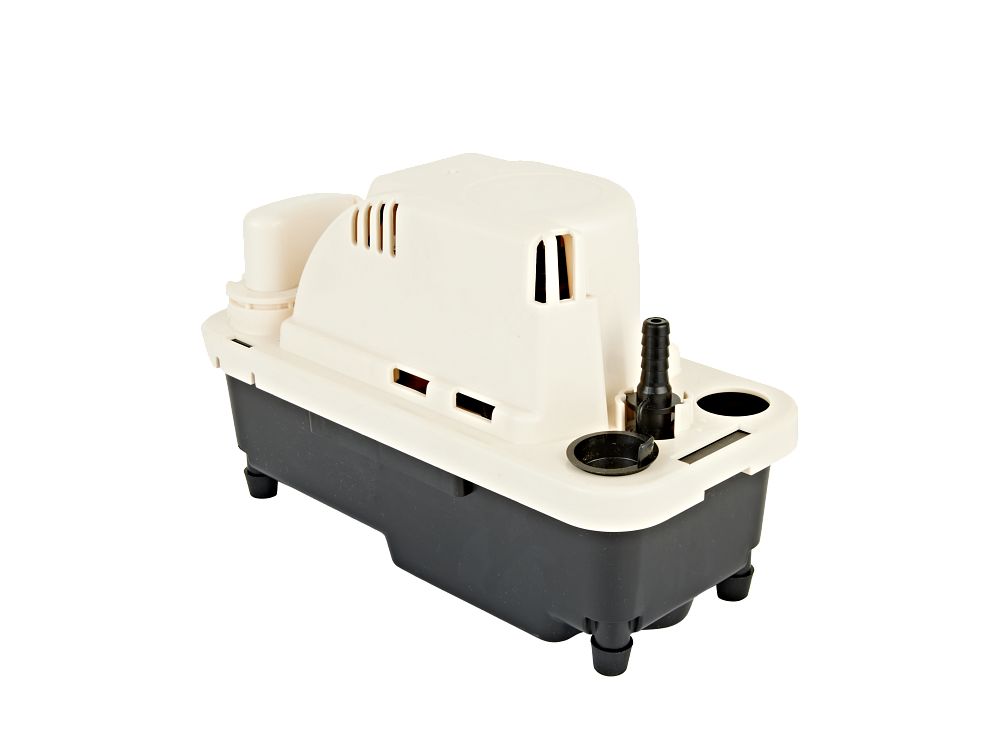

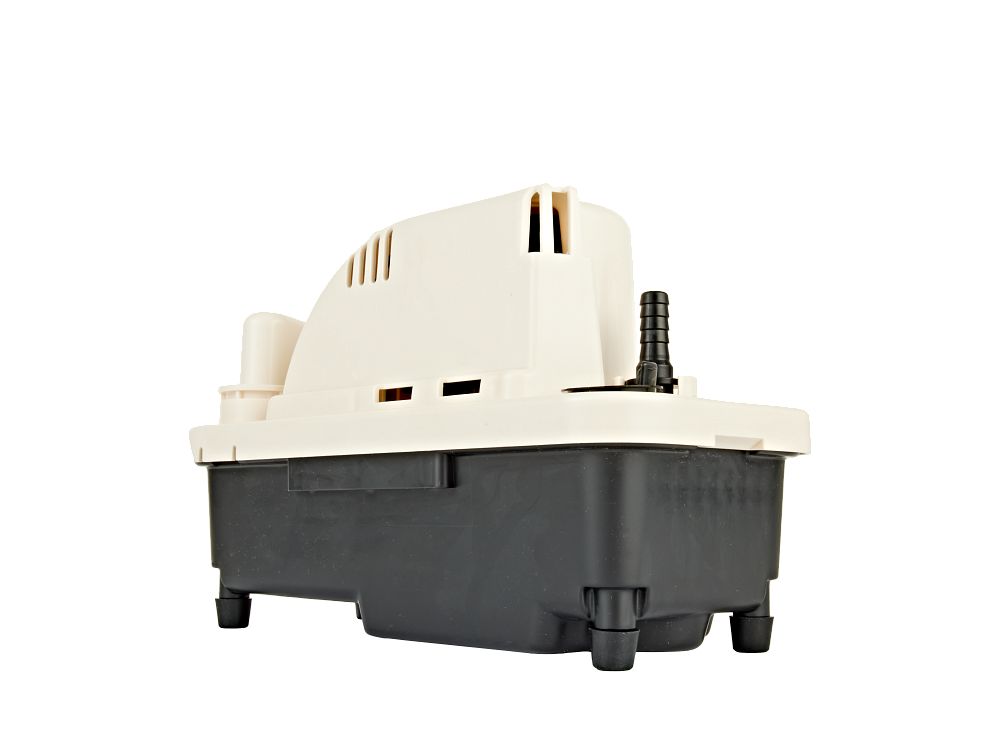

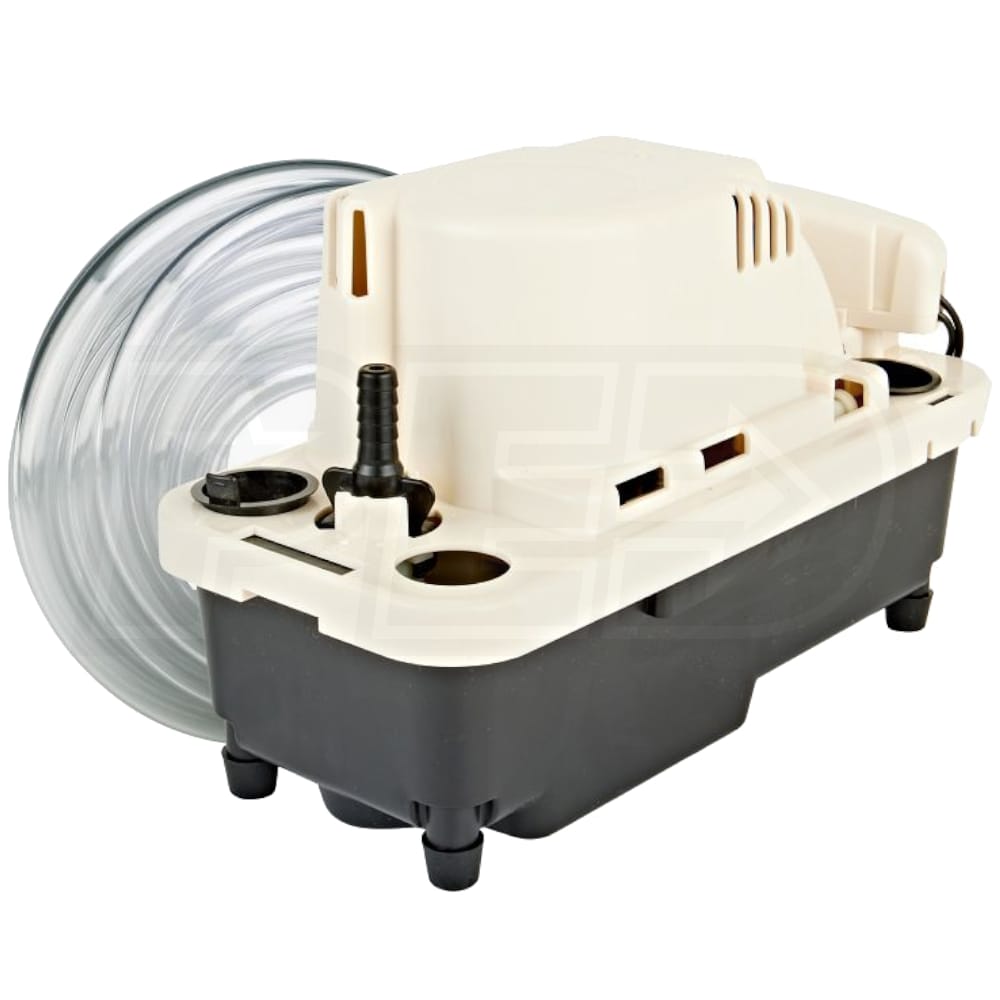

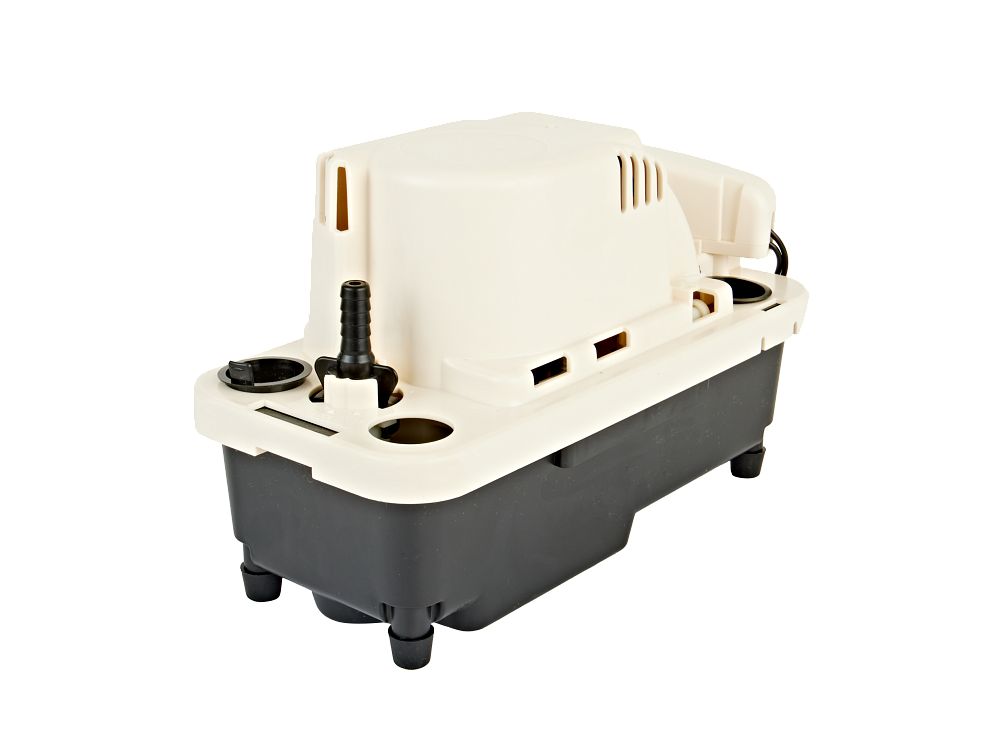

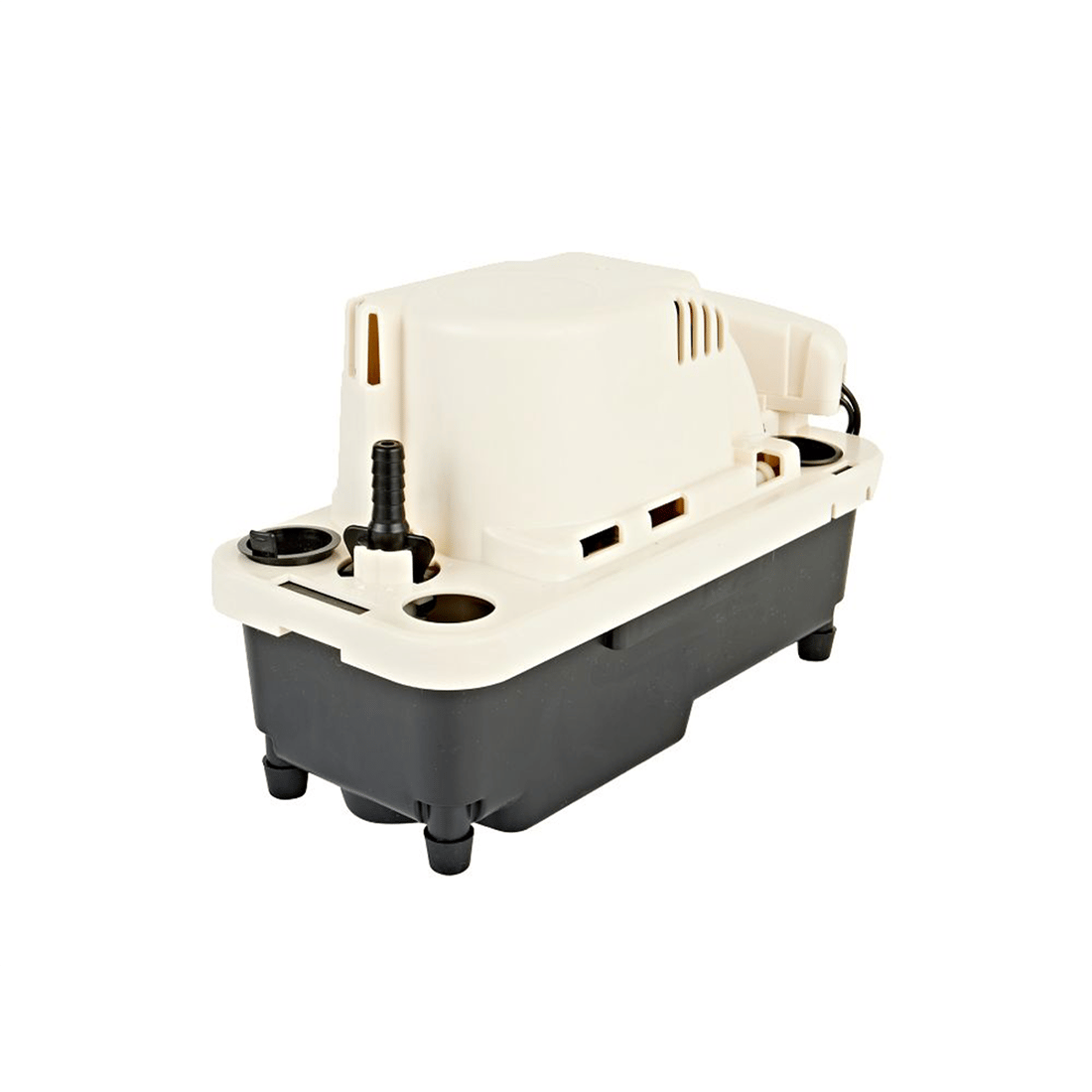

Little Giant VCMA-20ULPRO Condensate Pump

Product Description

The Little Giant VCMA-20ULPRO condensate pump is a reliable solution for removing condensate from air conditioning, refrigeration, and dehumidification systems. It is suitable for high-efficiency oil and gas condensing furnace and boiler setups. This vertical centrifugal pump is compact and designed for easy installation.

• Equipped with a high-performance motor and float switch for automatic operation.
• Includes multiple inlet openings for greater versatility.
• Constructed with durable materials for long-lasting performance.

Product Highlights

This condensate pump features an ABS tank and motor cover, ensuring reliability in various settings. The integrated check valve maintains optimal performance and prevents backflow.

Product Information

Standard Information

• Manufacturer Part Number: VCMA-20ULPRO
• UPC: 010121014428

Technical Specifications

• Maximum Flow Rate: 84 gph
• Shut-Off Head: 21 ft
• Maximum Liquid Temperature: 140 °F
• Voltage: 115 VAC
• Frequency: 60 Hz
• Power Consumption: 1.5 Amps
• Discharge Diameter: 3/8 Inch
• Inlet Diameter: 1-1/8 Inch
• Horsepower: 0.03 HP
• Weight: 5 Pounds
• Housing Material: Thermoplastic
• Impeller Material: Plastic
• Product Length: 10.2 Inches
• Product Width: 4.8 Inches
• Product Height: 6.5 Inches
