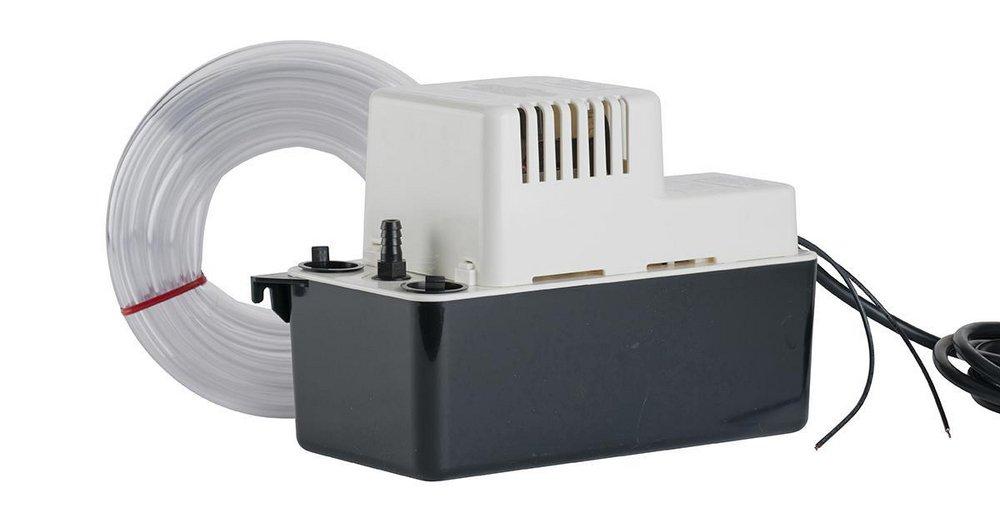

Little Giant 554461 VCMA-20 Series 75W 230V 0.5A 1/30 hp 80 gph ABS Condensate Pump

Product Description

The Little Giant condensate pump model number 554461 is designed for efficient condensate removal in HVAC systems. This pump operates on 230V power with a flow rate of 80 gallons per hour. It is built with an ABS tank to ensure durability, making it suitable for various applications including high-efficiency gas furnace condensation.

• Thermally protected, fan cooled motor
• Automatic operation with float switch
• Includes a safety switch to prevent overflow

Product Highlights

This condensate pump is ideal for use when gravity drainage is impractical. It can effectively remove condensate and wastewater from air conditioning systems and high-efficiency furnaces.

Product Information

Standard Information

• Power Rating: 75 W
• Voltage: 230 V

Technical Specifications

• Flow Rate: 80 gallons per hour
• Shutoff Head: 20 feet
• Tank Capacity: 1/2 gallons
• Dimensions: 10.3 inches L x 5 inches W x 7 inches H
• Material: ABS
• Electrical Rating: 0.5 amps, 0.06/0.05 A
• Safety Features: Comes with a built-in check valve
• Float Material: Solid Polymer
