Product Description

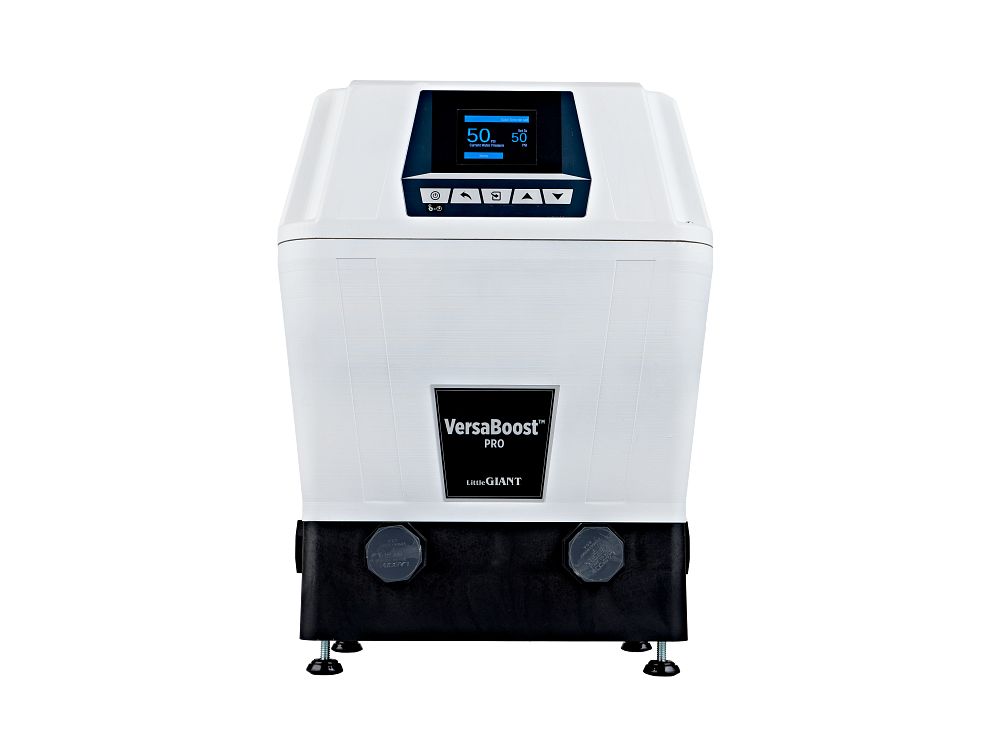

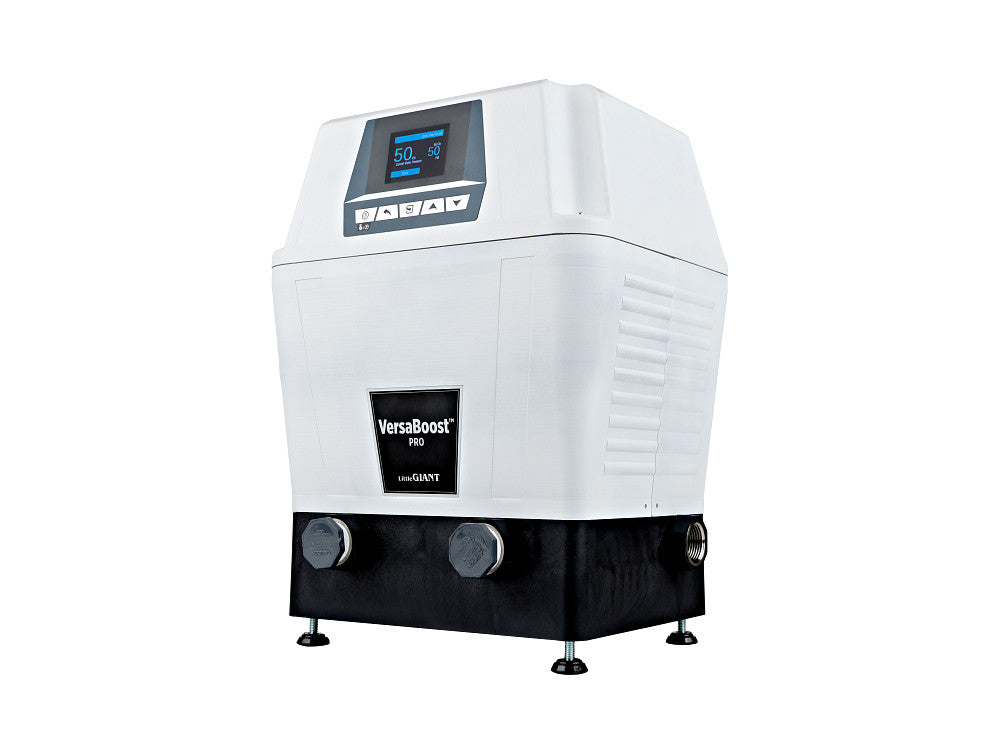

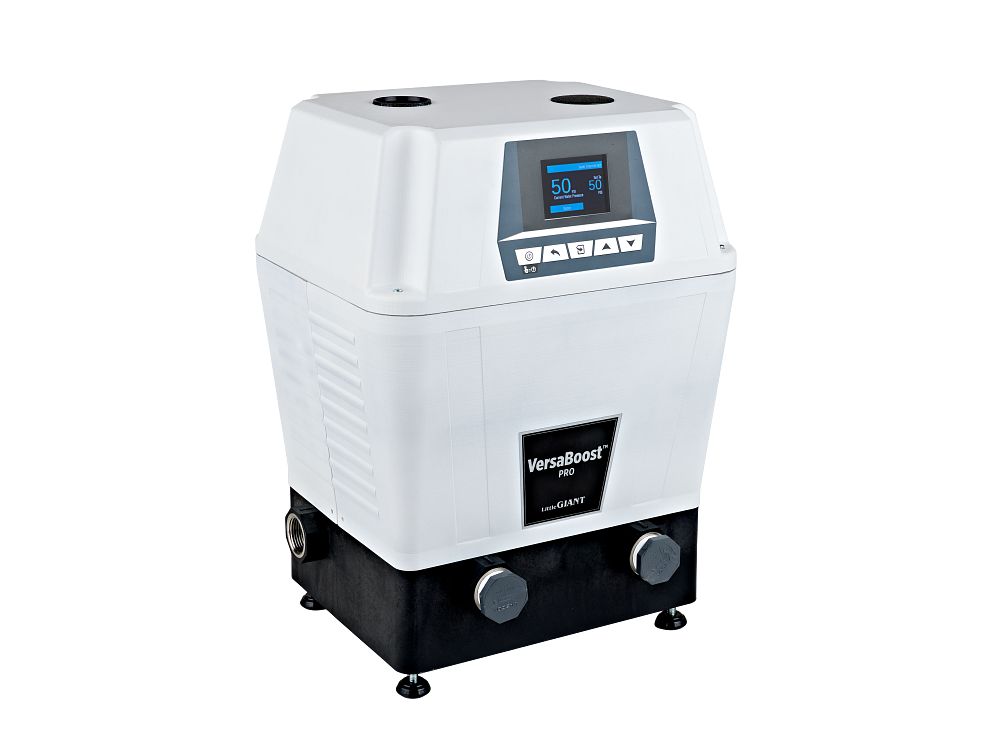

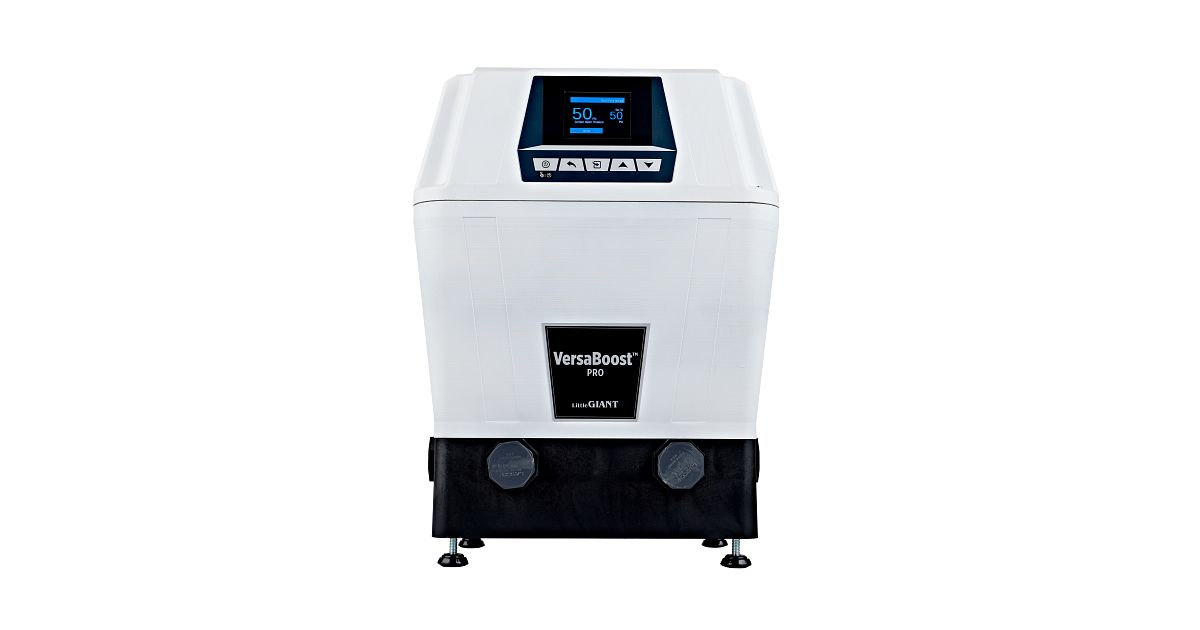

The Little Giant 93291101 is a VersaBoost Pro constant-pressure boosting system that uses a Franklin Electric encapsulated 4" submersible pump-motor and a Franklin-engineered variable frequency drive to maintain consistent water pressure. The LG-VBPRO-115 delivers up to 18 gpm (1080 gph) at 0.8 hp on 115 VAC, features a 3-stage pump, 1" FNPT suction and discharge, a 0.53 gallon expansion tank, and a NEMA 3R enclosure for indoor or outdoor installation.
- Variable frequency drive with protections for underload, overload, overpressure, overheating, anti-cycling, and freeze conditions
- Performance: 0.8 hp, up to 18 gpm (1080 gph), 3-stage pump, 1" FNPT inlet and outlet, shut-off 185 ft
- Construction and connectivity: stainless steel pump body and discharge, plastic closed impeller and check valve, integrated 0.53 gal tank, FE Connect Bluetooth/Wi Fi compatibility and wireless multi-pump up to 4 units
Product Highlights
Constant-pressure booster with 0.8 hp VFD-driven pump, 18 gpm capacity, 1" FNPT connections, NEMA 3R enclosure, NSF/ANSI and UL/CSA listings
Product Information
Standard Information
-
Brand: LITTLE GIANT
-
Manufacturer Part Number: 93291101
Technical Specifications
-
Brand: Little Giant
-
Manufacturer Part Number: 93291101
-
Model: LG-VBPRO-115
-
Name: VersaBoost Pro
-
Input Voltage: 115 VAC
-
Horsepower: 0.8 hp
-
Frequency: 60 Hz
-
Phase: Single-Phase
-
Cord Length: 6 ft
-
Motor Type: Franklin Electric encapsulated 4" submersible pump-motor assembly
-
Continuous Duty: Yes
-
Pump Stages: 3
-
Max Flow Rate: 18 gpm (1080 gph)
-
Rated Flow Rate: 18 gpm (1080 gph)
-
Minimum Flow Rate: 0 gpm
-
Shut-Off Head: 185 ft
-
Minimum Head: 32 ft
-
Maximum Suction Lift: 25 ft (7.6 m)
-
Maximum System Pressure: 100 psi (6.9 bar)
-
Pressure Range: 14 to 80 psi
-
Maximum Fluid Temperature: 104 F (40 C)
-
Operating Temperature Range: 33 F to 122 F (0.5 C to 50 C)
-
Enclosure Rating: NEMA 3R
-
Noise Level: As low as 45 dB
-
Inlet/Outlet: 1" FNPT
-
Pump Body Material: Stainless steel
-
Discharge Material: Stainless steel
-
Impeller Type: Closed
-
Impeller Material: Plastic
-
Impeller Diameter: 4"
-
Check Valve: Yes (plastic)
-
Tank Capacity: 0.53 gal
-
Motor Cooling: Water
-
Dimensions (L x W x H): 10.84 in x 13.3 in x 18 in
-
Weight: 39 lb (product), 44 lb (with pack)
-
Certifications: NSF/ANSI/CAN 61 and 372; UL and CSA listed
-
Protections: Underload, overload, overpressure, overheating, anti-cycling, freeze protection (VFD)
-

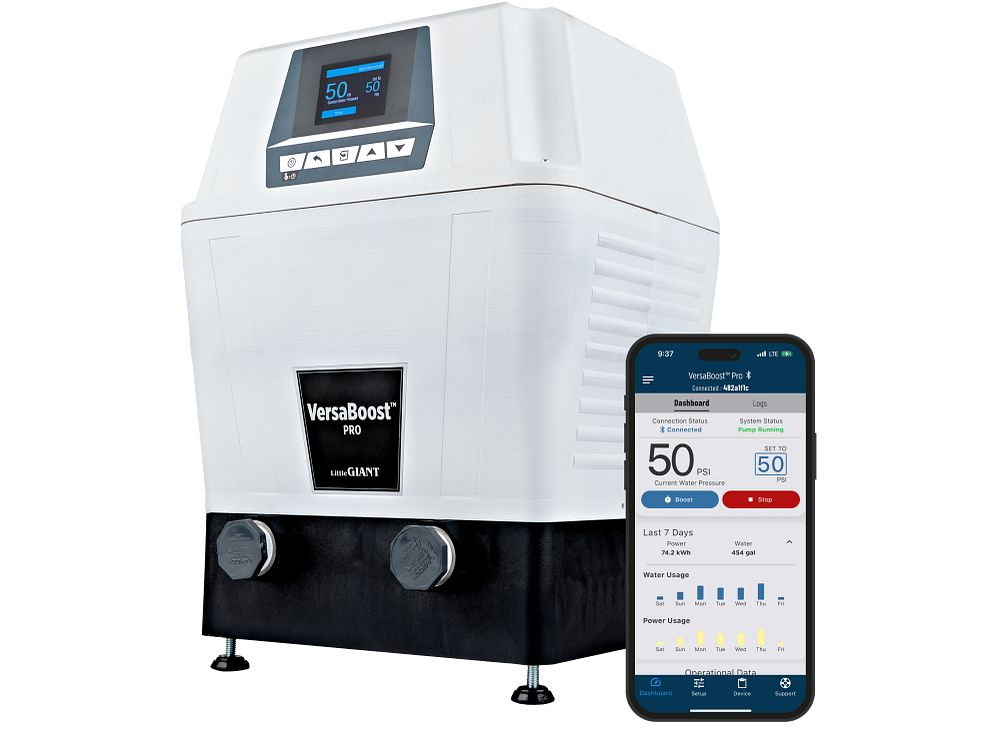

Connectivity: FE Connect Bluetooth and Wi Fi compatibility
-
Scalability: Wireless multi-pumping up to 4 units in parallel
-
Accessories Included: (2) 1" couplings, (2) short 1" pipe nipples, allen wrench, sealing tape
