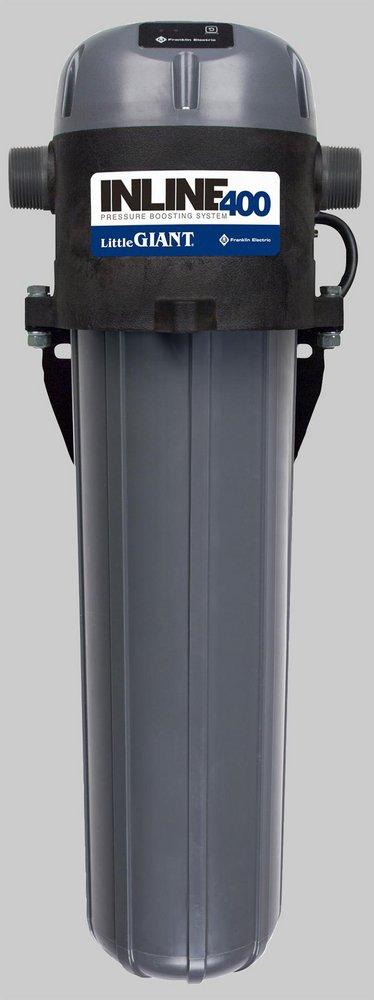

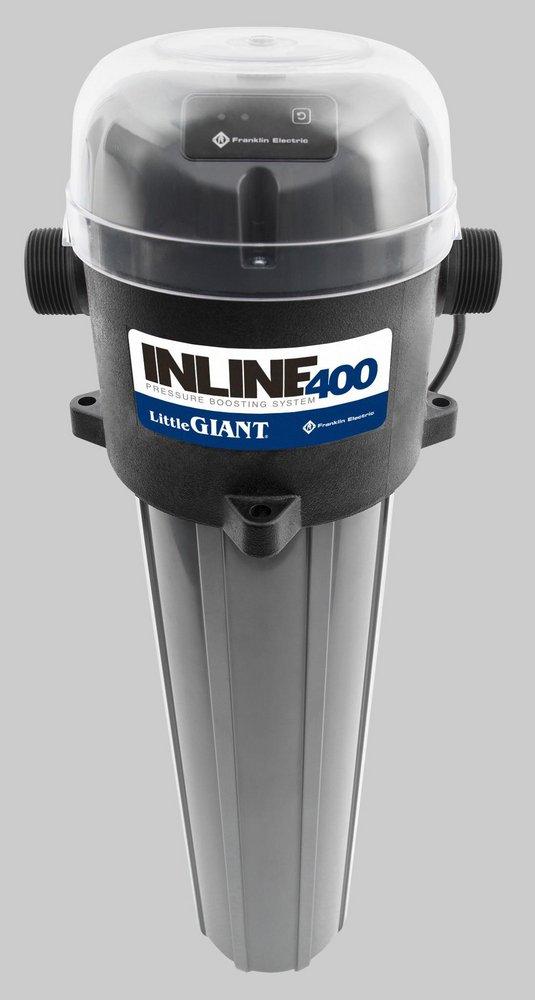

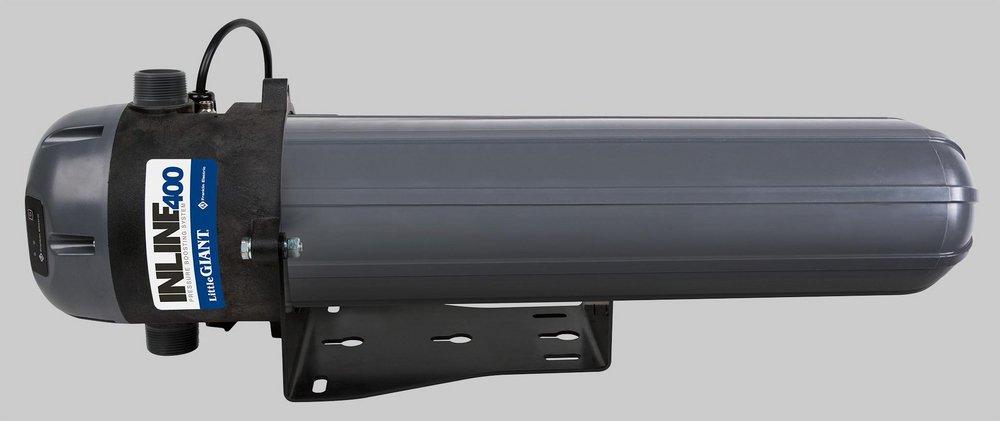

Little Giant 92061503 Inline 400 1/3 HP 115V 1-Phase Pressure Booster System

Product Description

The Little Giant Inline 400 is a pressure boosting system with MPN 92061503. It is designed for enhancing water pressure across various installations, making it suitable for residential and commercial applications.

• Delivers a flow rate of twenty gallons per minute
• Operates at 115 volts with a power rating of one third horsepower
• Includes protective features such as over/under voltage protection and dry run safety

Product Highlights

Ideal for applications such as city water pressure boosting, irrigation systems, and more.

Product Information

Standard Information

• Product Type: Pressure Booster System
• Usage: Water supply and irrigation

Technical Specifications

• Amperage Rating: 6.6 A
• Dimensions: 8.86 inches L x 29.61 inches H x 8.5 inches W
• Flow Rate: 20 gpm
• Frequency Rating: 60 Hz
• Inlet/Outlet Size: 1-1/4 inches NPT
• Maximum Head: 125 ft
• Maximum Pressure: 95 psi
• Voltage Rating: 115 VAC
• Wattage Rating: 250 W
• Material: Thermoplastic
• Phase: 1 PH
