Product Description

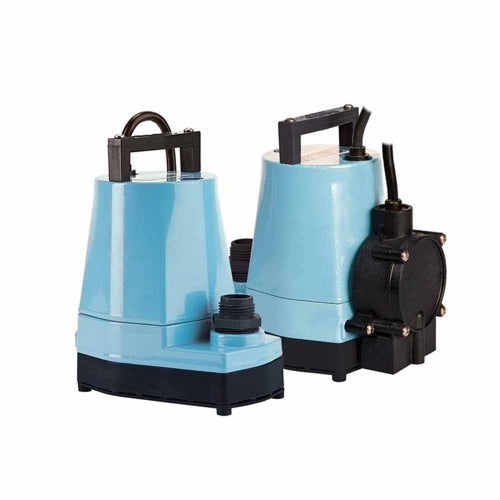

The Little Giant Pump Company 5MSP10 is a submersible utility pump with a horsepower rating of one sixth. It operates on one phase and a voltage of one hundred fifteen. It is designed for manual operation with an epoxy coated cast aluminum housing. With a cord length of ten feet, it also features a one inch discharge pipe size.
- Shaded pole motor with overload protection
- Continuous duty operation
- Removable inlet screen for cleaning
Product Highlights
This pump is suitable for various applications including commercial and industrial use, where water must be transferred or recirculated. The unit is UL Listed and CSA Certified, ensuring compliance with safety standards.
Product Information
Standard Information
-
Horsepower Rating: 1/6 HP
-
Operation Mode: Manual
Technical Specifications
-
Housing Material: Epoxy Coated Cast Aluminum
-
Voltage Rating: 115V
-
Cord Length: 10 ft
-
Outlet Pipe Size: 1 inch
-
Current Rating: 5A
-
Number of Phases: 1
-
Height: 7-13/16 inch
-
Width: 4-5/16 inch
-
Maximum Operating Temperature: 120 deg F
-
Maximum Working Pressure: 11.4 psi
-
Model No: 5-MSP
-
Length: 6-1/8 inch
-
Frequency: 60 Hz
-
Wattage: 380W
-
Discharge Connection Type: FNPT
-
Applications: For Commercial, Industrial and Home uses where Water must be Transferred or Recirculated
-
Standards/Approvals: UL Listed, CSA Certified
