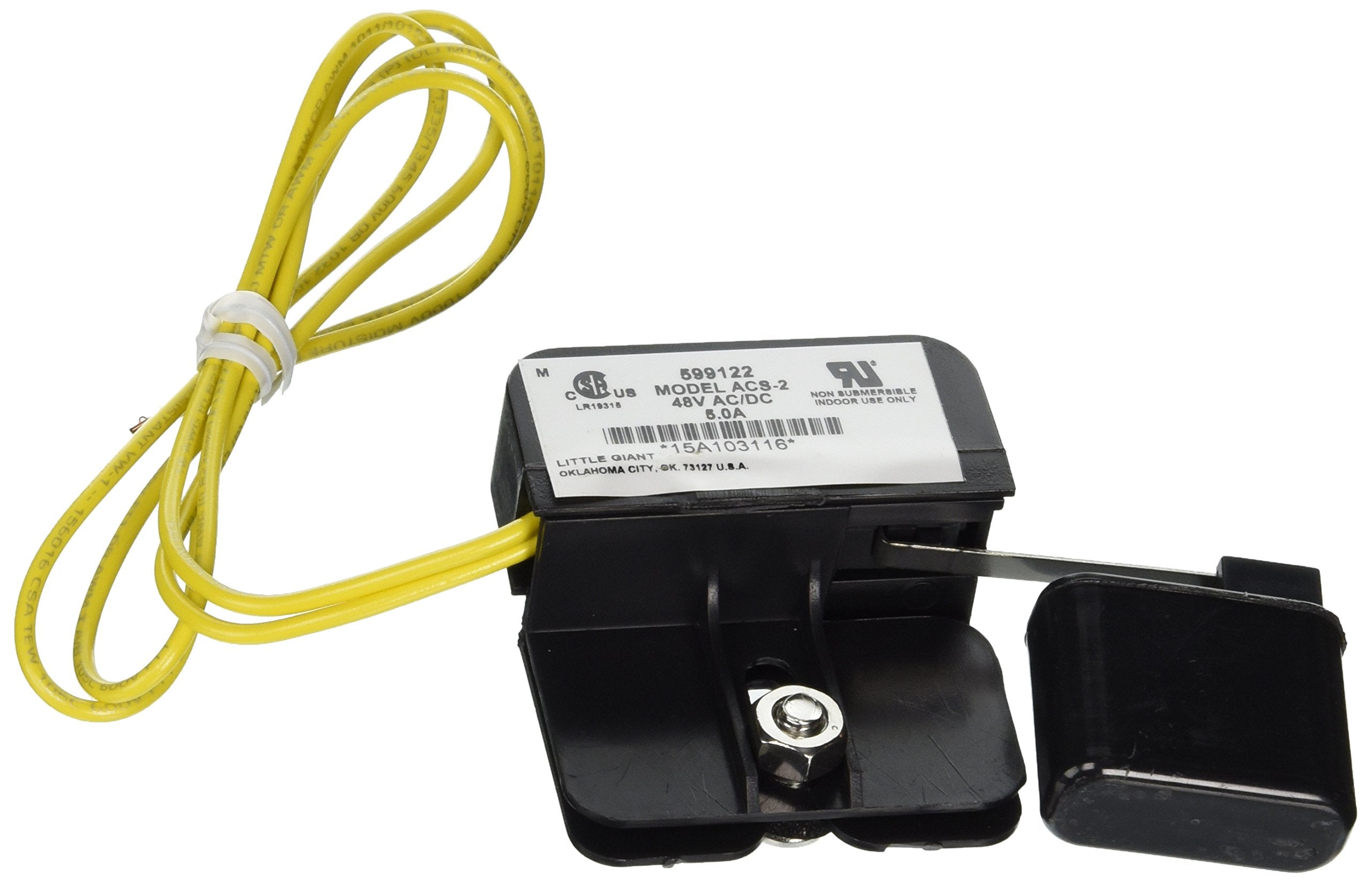

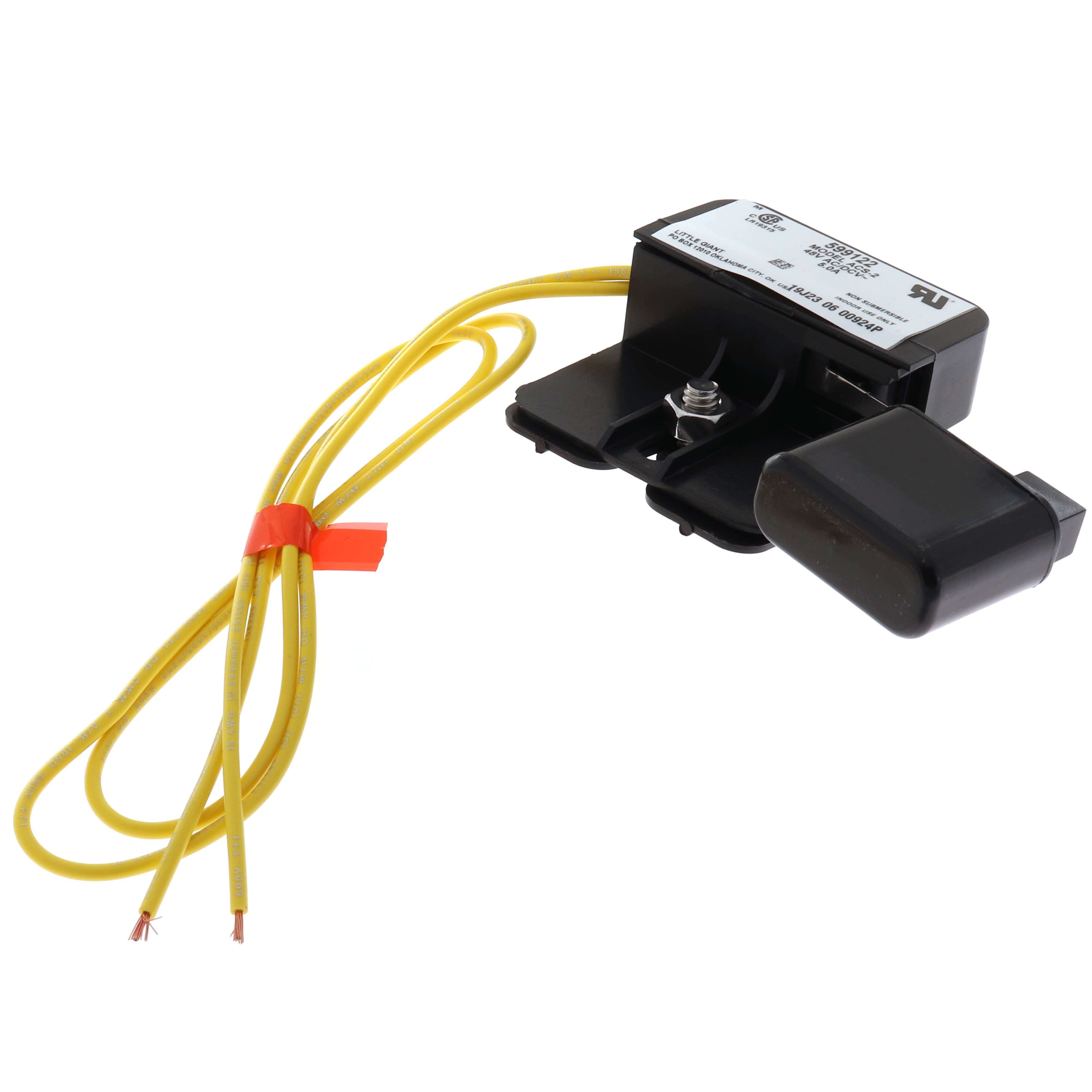

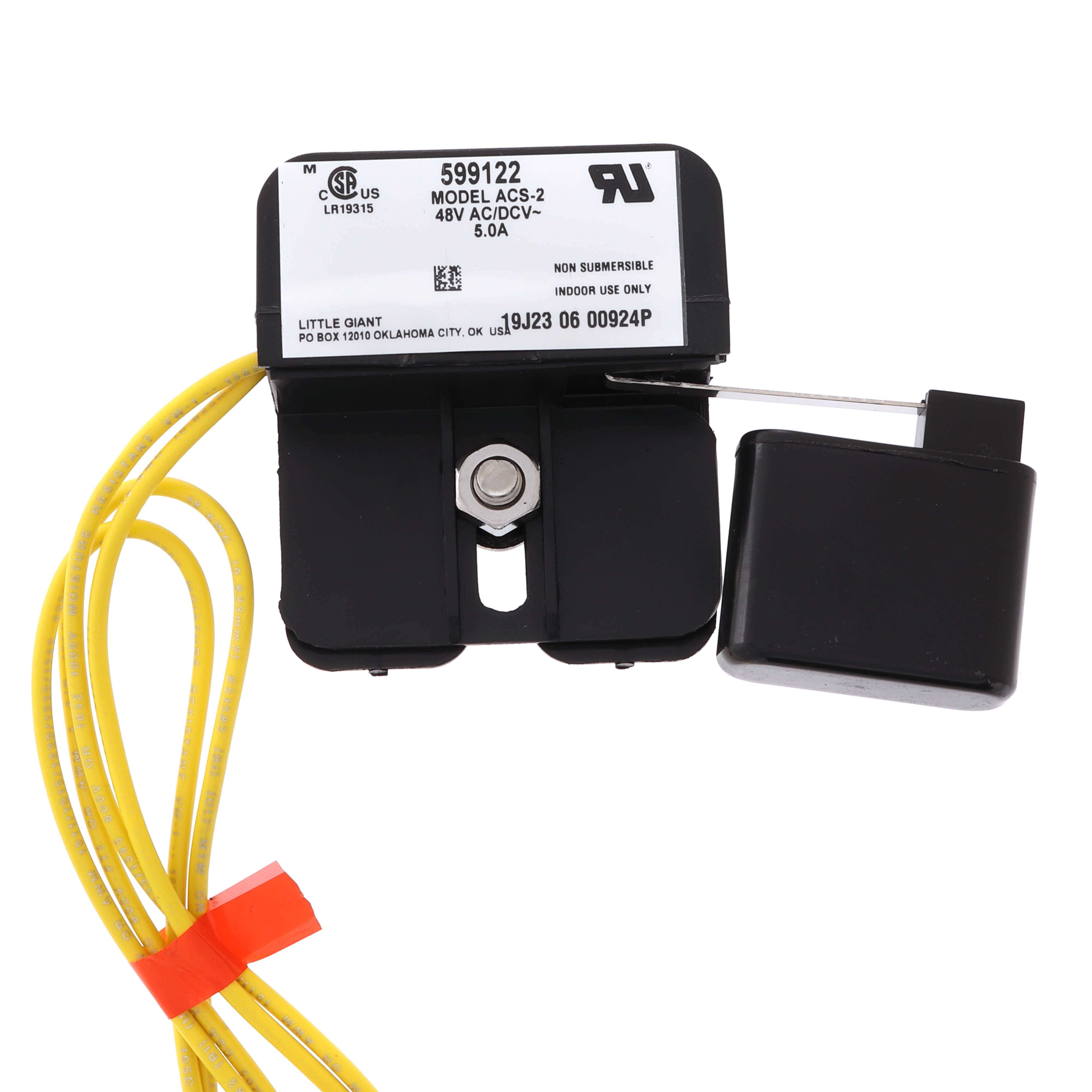

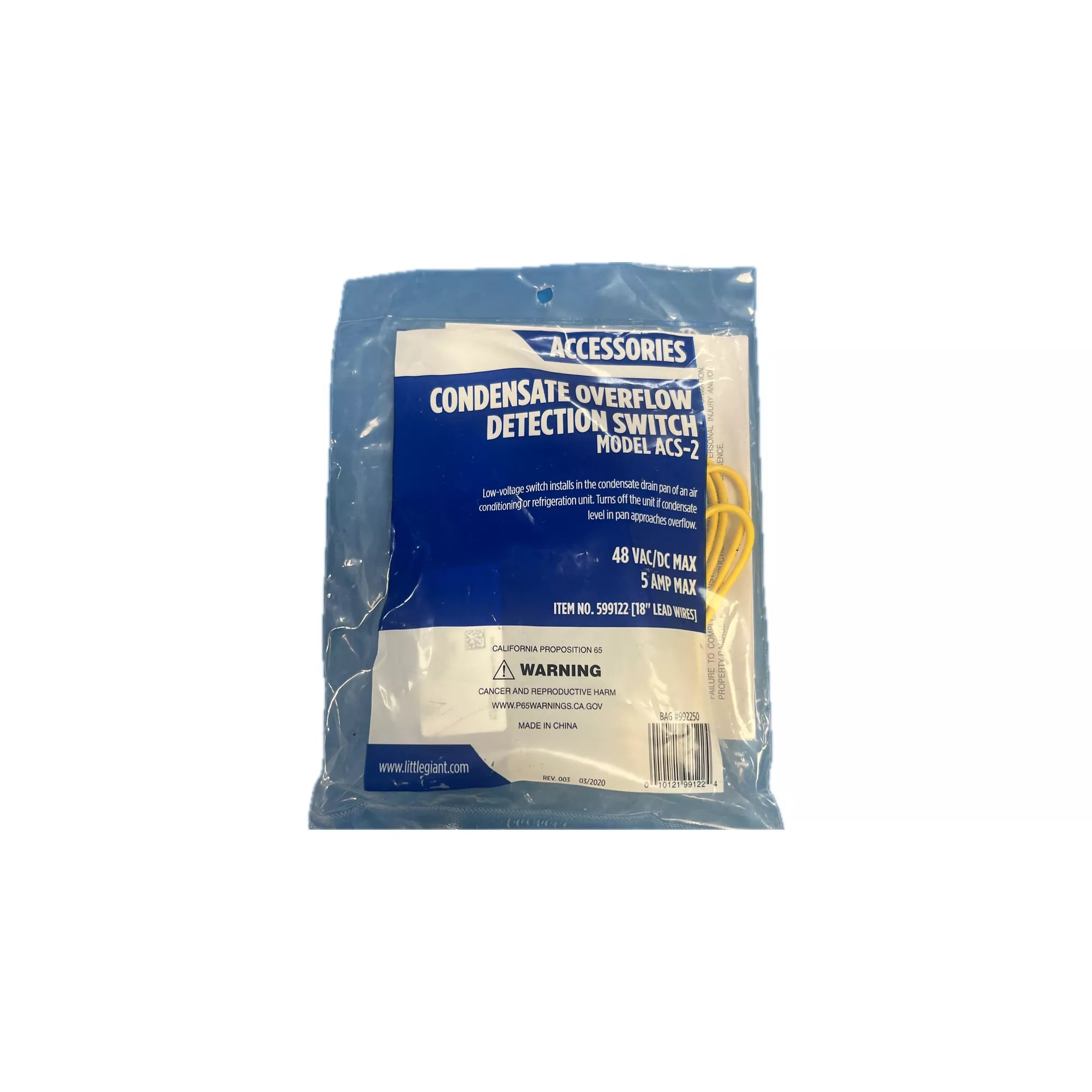

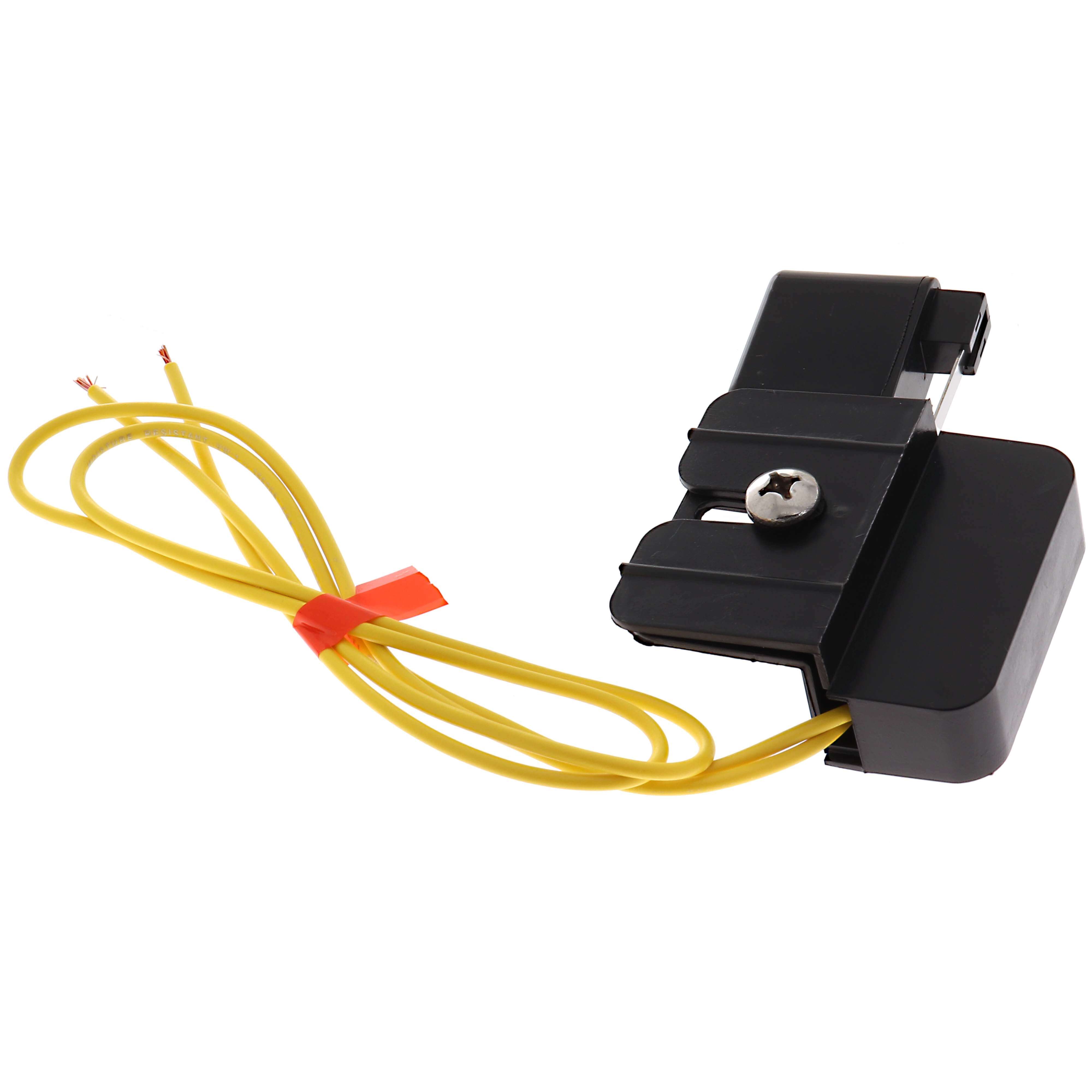

Little Giant 599122 Acs-2 Switch Low-Voltage Condensate Overflow Safety Switch

Product Description

The LITTLE GIANT 599122 Acs-2 Switch is a low-voltage condensate overflow safety switch. It installs in the condensate drain pan of an air conditioning or refrigeration unit and turns off the unit if the drain pan approaches overflow. It has a maximum current rating of 5 amps and quick connect connector type.

• Installs in condensate drain pan
• Turns off unit if drain pan approaches overflow
• Can be installed to activate audible and/or visual alarm

Product Highlights

This low-voltage condensate overflow safety switch is designed for easy installation and maintenance. It detects high condensate levels and shuts off the system to prevent damage.

Product Information

Standard Information

• Brand: LITTLE GIANT
• Manufacturer Part Number: 599122
• Country of Origin: USA

Technical Specifications

• Material: Metal
• Connector Type: Quick Connect
• Current Rating: 5 Amps
• Operation Mode: ON-OFF
• Voltage: 48 VAC/VDC
• Leads: 72"
• Brand: Little Giant
• Composition: Plastic
• Connection Size: 3/4"
• Cord Length: 18"
• For Use With: Condensate drain pan
• Functions: Float operated switch
• Maximum Amps Running: 5
• Mounts: Clamp
• Plenum Rated: false
• Prop 65: true
• Switch Type: Snap Action
• Type: In-Pan Condensate Switch
• Wire Gauge: 18 AWG
• Height: 1.3
• Length: 7.5
• Width: 5.8
• Country of Origin: USA
• Trigger: 3/4"
• Application: Plumbing
• Housing Material: ABS Plastic
• Phase: 1
• Amperage: 5 A
• Max Temperature: 120 °F
• Lead Wire Length: 18 in
• Manufacturers Part Number: 599122
• Certifications: UR / C-CSA
• Frequency: 60 Hz
• Amps - Full Load: 5 A
• Volts: 48 VAC
• Continuous Duty: No
• Housing: ABS
• Float: Polyethylene
• Electrical Agency Approvals: CSA
