Product Description

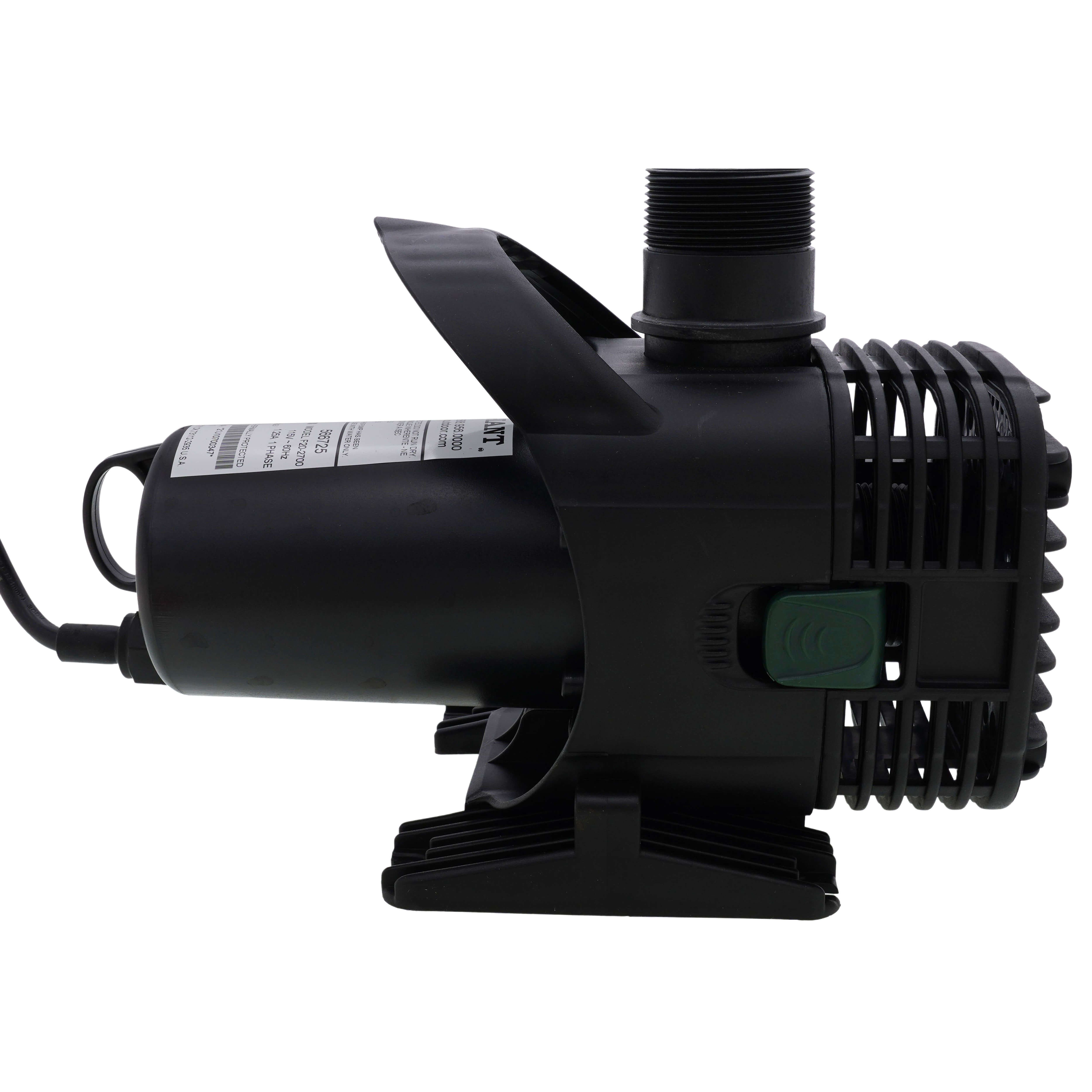

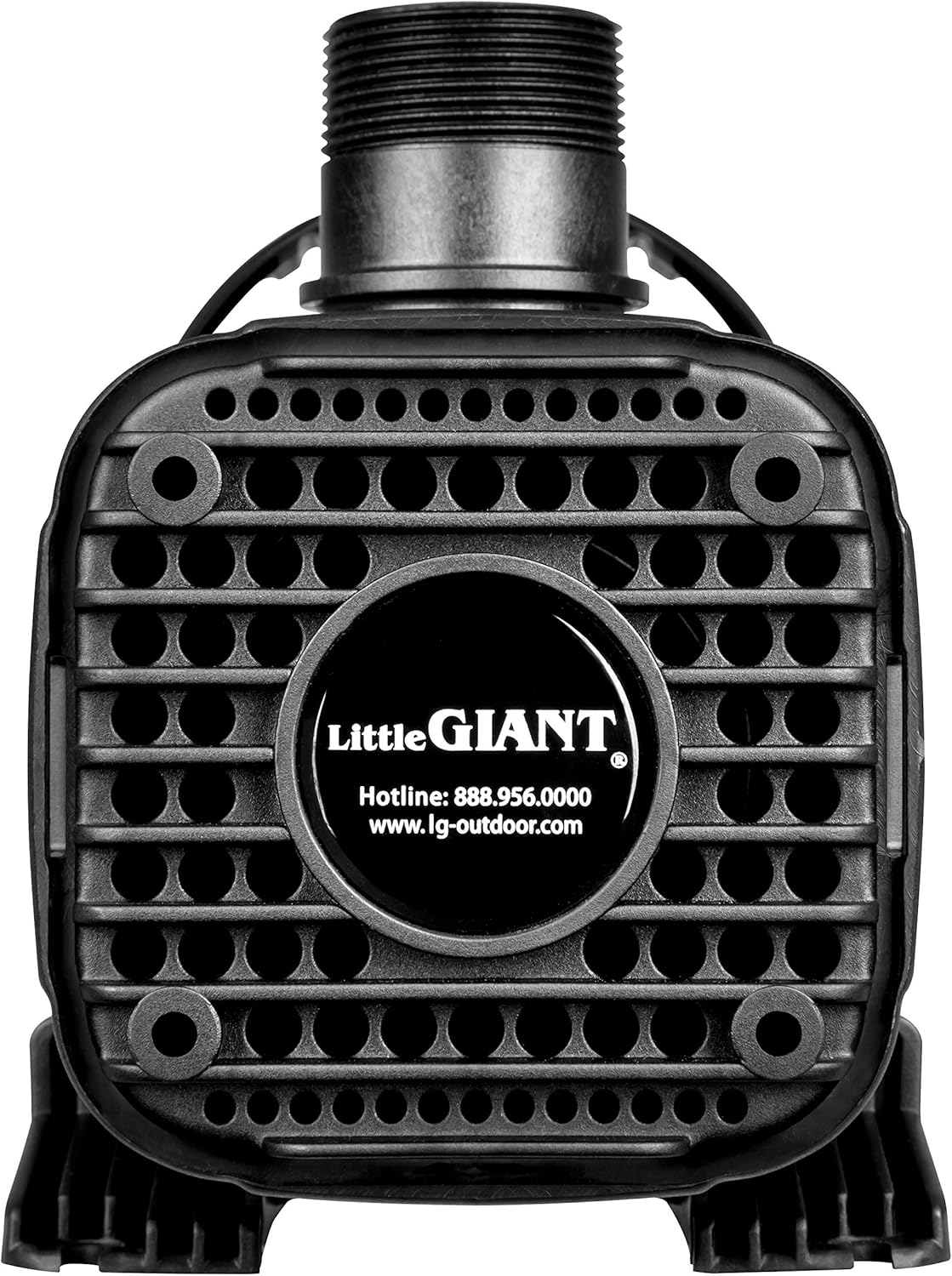

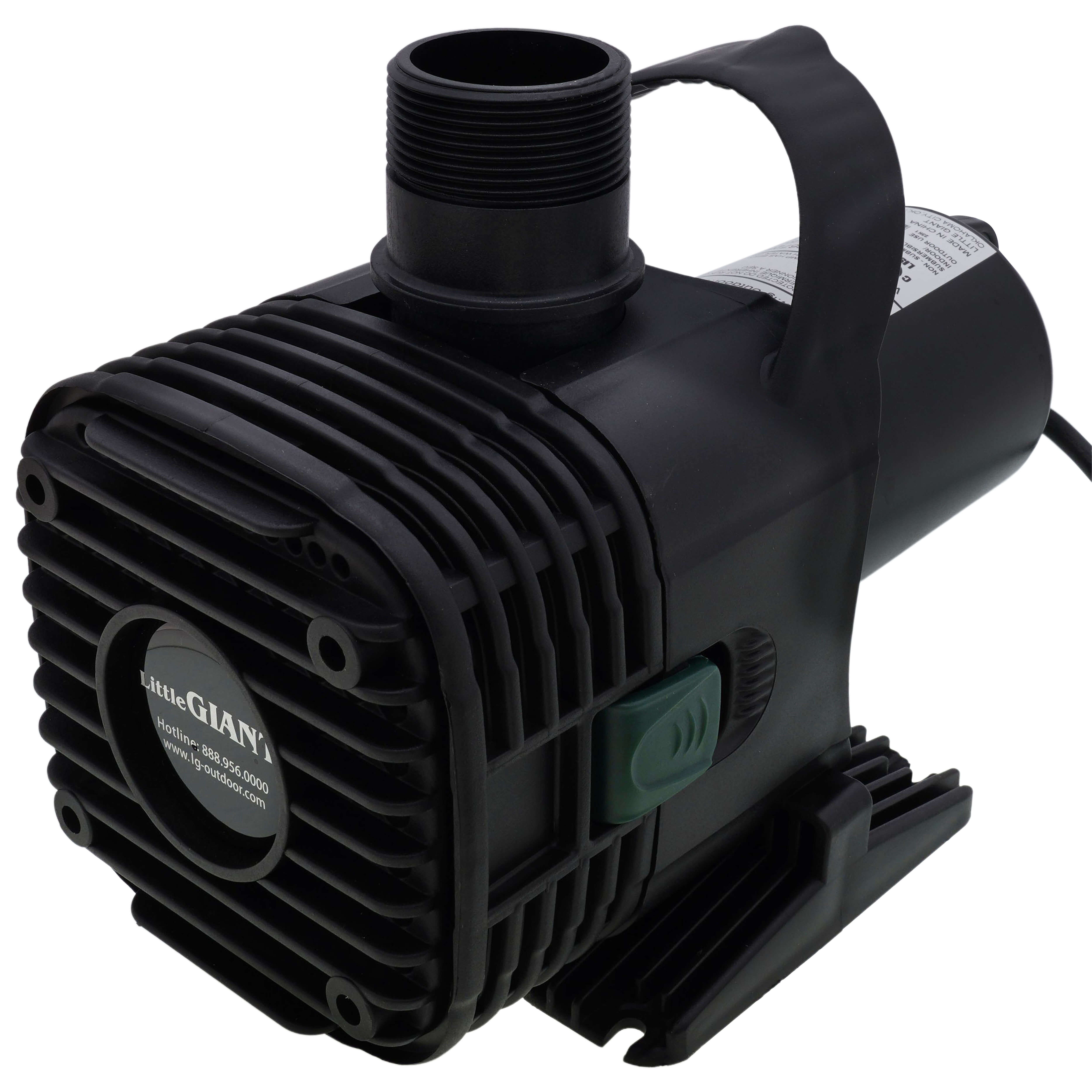

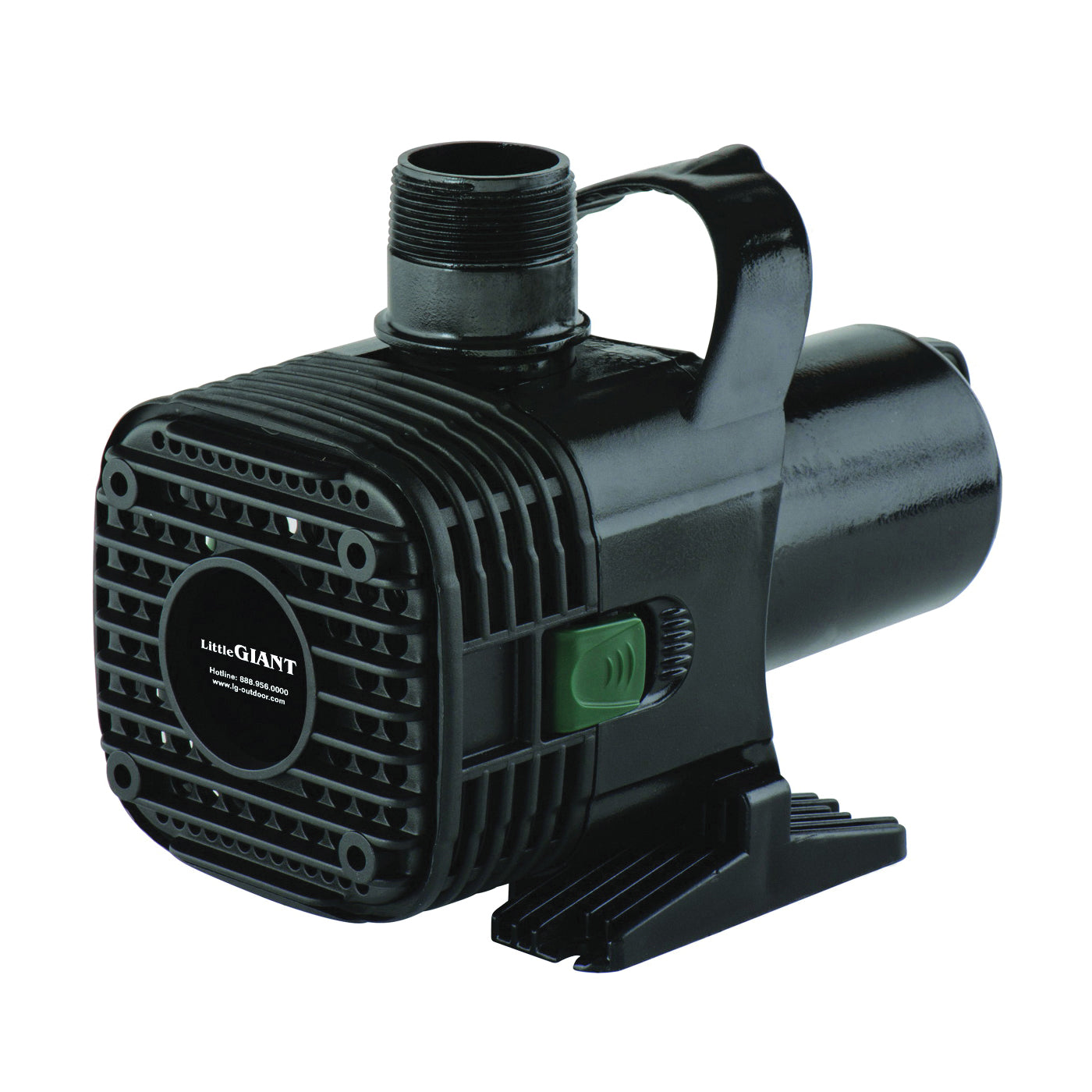

The LITTLE GIANT 566725 F20-2700 wet rotor pump is designed for ponds up to 2700 gallons. It can be positioned vertically or horizontally, submerged, or in-line. Features an oil-free design, a rope/cable loop, and a pre-filter. It accepts 1.5-inch threaded fittings or 1.5-inch rubber couplings.
- Ideal for ponds up to 2700 gallons with 1.5-inch MNPT and SPIG discharge
- Features a removable fastener to hold the screen in place
- Can be positioned vertically or horizontally, submerged or in-line
Product Highlights
The LITTLE GIANT wet rotor pump is designed for flexibility and durability in any decorative water application.
Product Information
Standard Information
-
Brand: LITTLE GIANT
-
Manufacturer Part Number: 566725
Technical Specifications
-
Color: Black
-
Style: 2700 GPH
-
Voltage: 115 Volts
-
Material: Acrylonitrile Butadiene Styrene
-
Power Source: Corded Electric
-
Maximum Flow Rate: 46 Gallons Per Minute
-
Maximum Lifting Height: 28.5 Feet
-
Amps: 1.25
-
Watts: 147
-

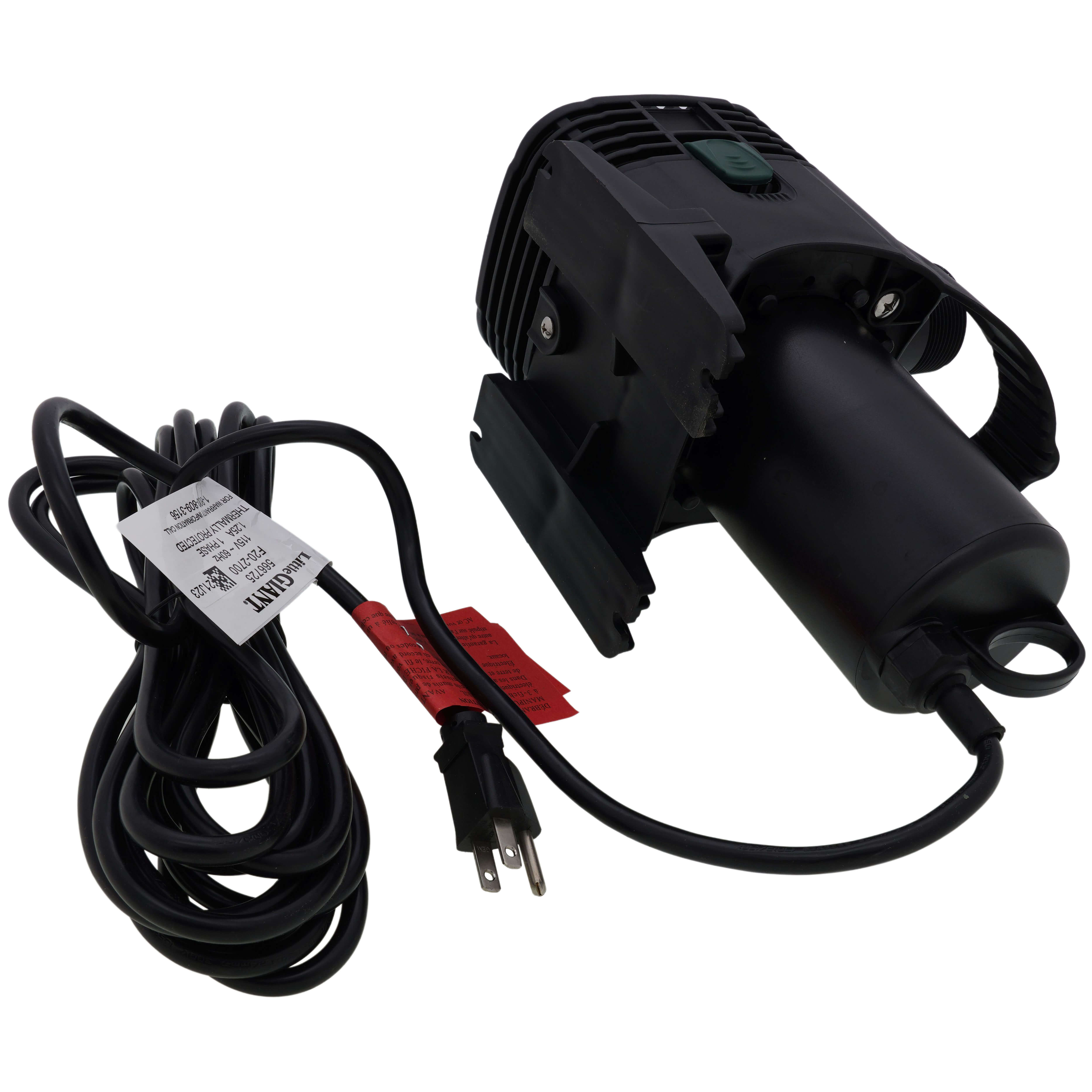

Cord Length: 20-ft
-
Discharge: 1.5-inch MNPT and SPIG
-
Maximum GPH: 2770 at 0'
-
Shut-off: 14.9-ft
-
Pond Size: Up to 2700 Gallons
-
Flow at 0 FT Head: 2772 GPH
-
Shutoff Head (ft.): 14.9'
-
GPH @ 1': 2705
-
GPH @ 5': 2095
-
GPH @ 10': 960
-
Amperage/Wattage: 1.25 running Amps; 147 Watts
-
Intake and Discharge Size: 1-1/2" MNPT; accepts threaded fittings and rubber couplings (not included)
-
Performance at 0' lift: 2,770 gph (10,486 lph)
-
Performance at 1' lift: 2,705 gph (10,240 lph)
-
Performance at 5' lift: 2,095 gph (7,930 lph)
-
Performance at 10' lift: 960 gph (3,634 lph)
-
Typical pond size: 10' long x 9' wide x 2' deep (3.05 m x 2.74 m x 0.61 m)
-
Maximum fountain height: 9' 11" (3.02 m)
-
Typical waterfall size: Suitable for a waterfall 18" (0.46 m) wide with a gentle water flow
-
Voltage Rating: 115
-
Current Rating: 1.25
-
Frequency Rating: 60
-
Connection Type: MNPT x SPIG
-
Flow Rate: 2772
-
Overload Protection: Thermal
-
Mounting Type: Horizontal, Vertical
