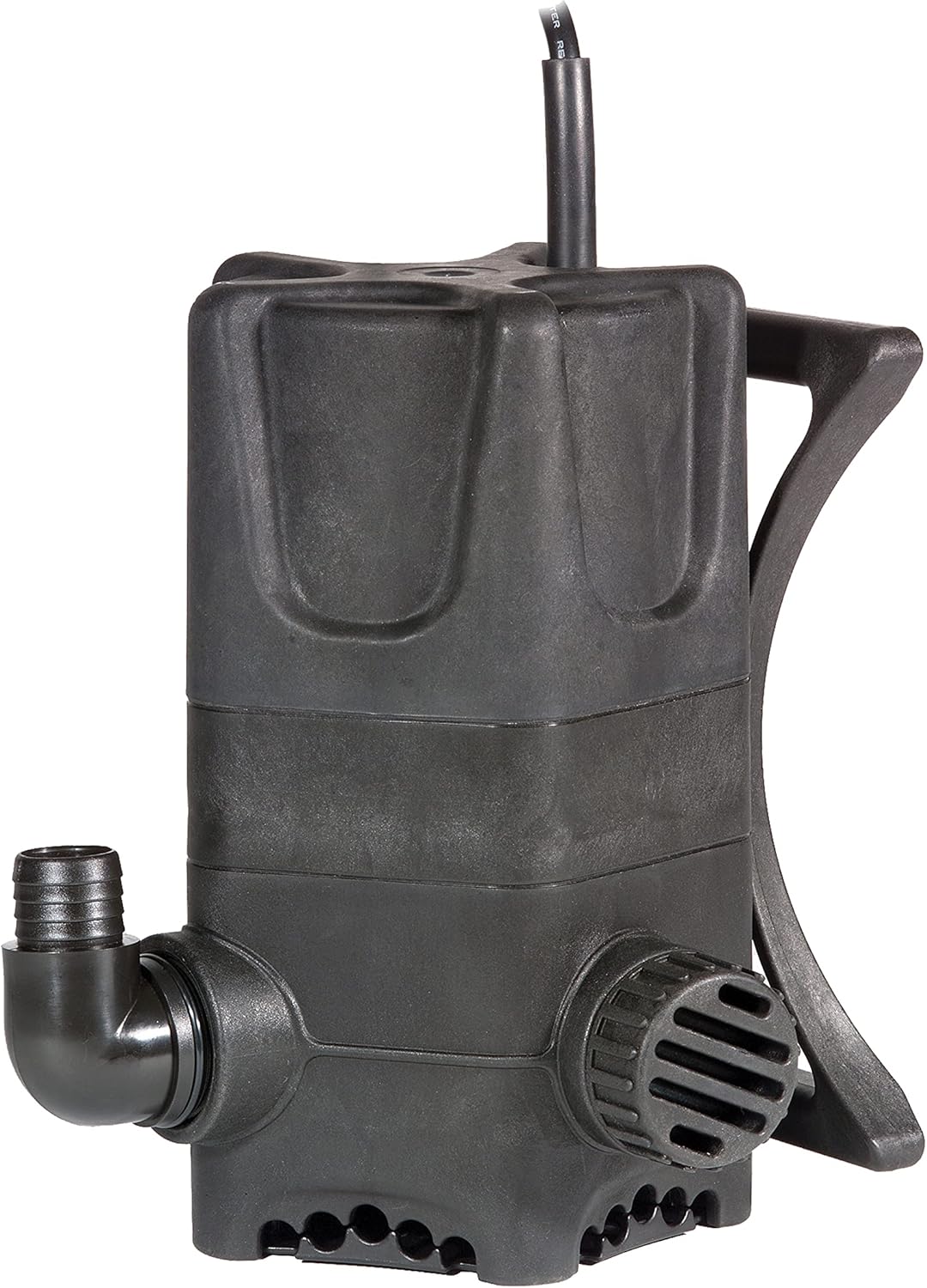

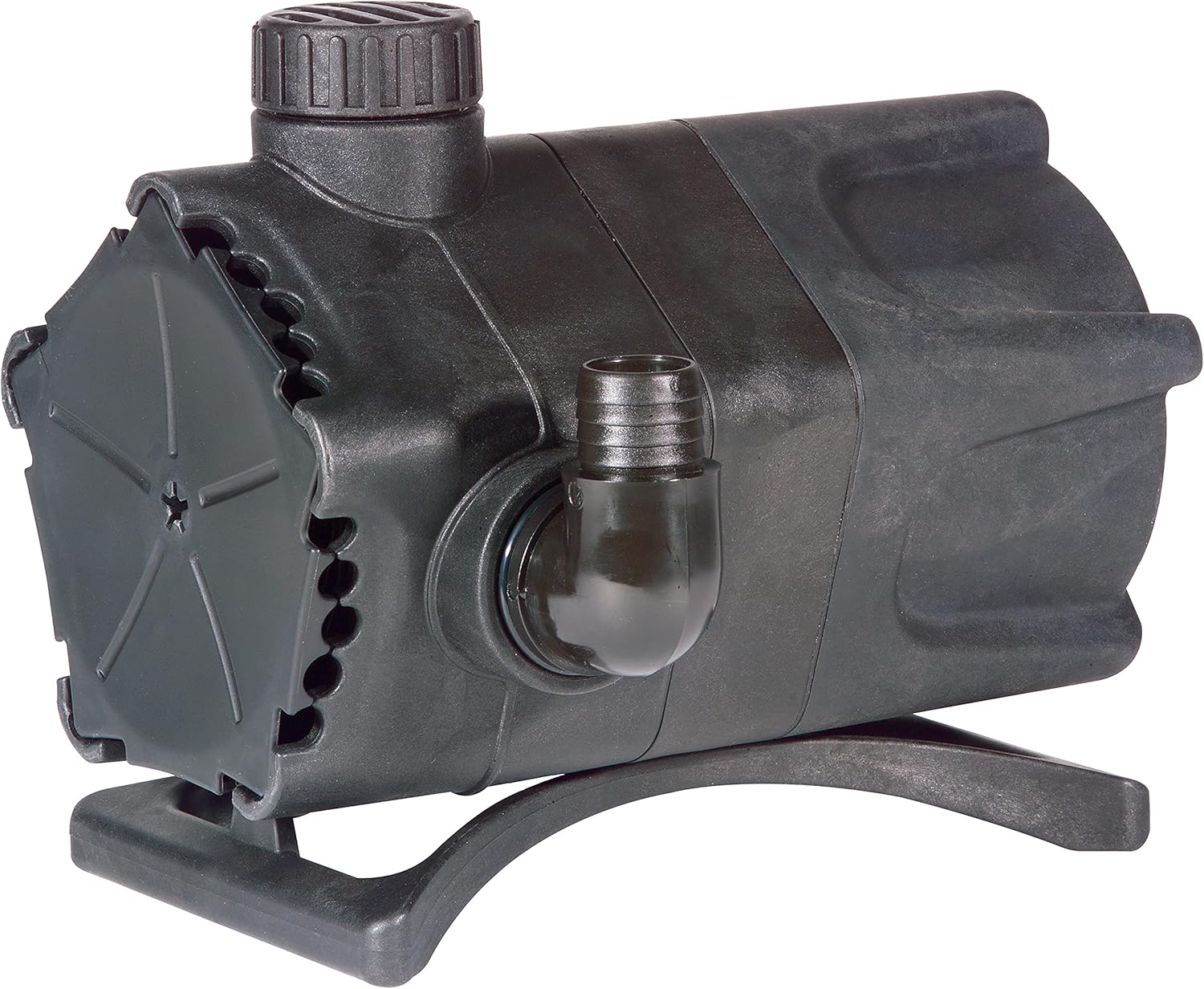

Little Giant 566417 WGP-80-PW Dual Discharge Waterfall and Stream Pump 673 watts 3500 GPH

Product Description

The LITTLE GIANT 566417 WGP-80-PW is a dual discharge waterfall and stream pump. This efficient, oil-less, direct-drive pump produces greater pressure, allowing it to serve two water features simultaneously. The corrosion-resistant submersible body is designed for non-potable, continuous operation and can be installed vertically or horizontally.

• Can be used vertically or horizontally
• Removable pre-filter for cleaning
• Ideal for filtration, waterfall and streams

Product Highlights

This direct-drive pump features a unique dual discharge design for operation of two water features simultaneously. It is ideal for pond filtration, waterfalls, streams, fountains and water features.

Product Information

Standard Information

• Brand: LITTLE GIANT
• Manufacturer Part Number: 566417
• Country of Origin: China

Technical Specifications

• Color: Black
• Style: 3500 GPH; 670 Watts
• Material: Polypropylene
• Model Name: WGP-80-PW
• Country of Origin: China
• Hertz: 60
• Voltage: 115V
• Wattage: 675
• Amperage: 6.3
• Discharge: 1.25 "
• Cord Length: 16 ft
• Horse Power: 5/6
• Flow at 1 FT Head: 3400 GPH
• Shutoff Head (ft.): 29.5'
• Power Source: Corded Electric
• Maximum Flow Rate: 58 Gallons Per Minute
• Connection Size: 1-1/4 in
• Connection Type: FNPT
• Frequency Rating: 60 Hz
• Housing Material: Plastic
• Maximum Head: 1 ft
• Mounting Type: Horizontal Vertical
• Overload Protection: Thermal
• Temperature Rating: 0 to 35 deg C
• Type: Direct Drive Dual Discharge
• HP 60Hz: .6 hp
• Phase: Single-Phase
• Full Load Watts: 700 W
• Volts: 115 VAC
• Continuous Duty: Yes
• Maximum Flow Rate - 60Hz: 50 gpm / 3000 gph
• Pump Base Material: Plastic
• Pump Body Material: Plastic
• Discharge Type: Threaded - FNPT
• Suction Type: Screened
• Product Length: 11 "
• Product Width: 6.35 "
• Product Height: 8.1 "
• Pump Length: 11 "
• Product Weight: 13.1 lb
