Little Giant 554700 vcma-20-nptc neutralizing condensate pump 80 GPH (500,000 btu/hr)

Product Description

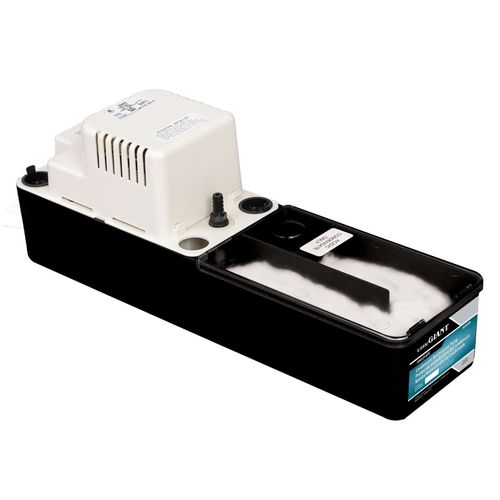

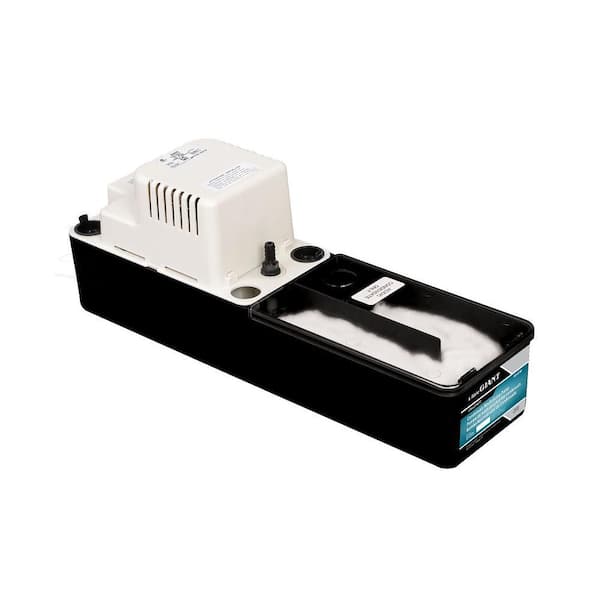

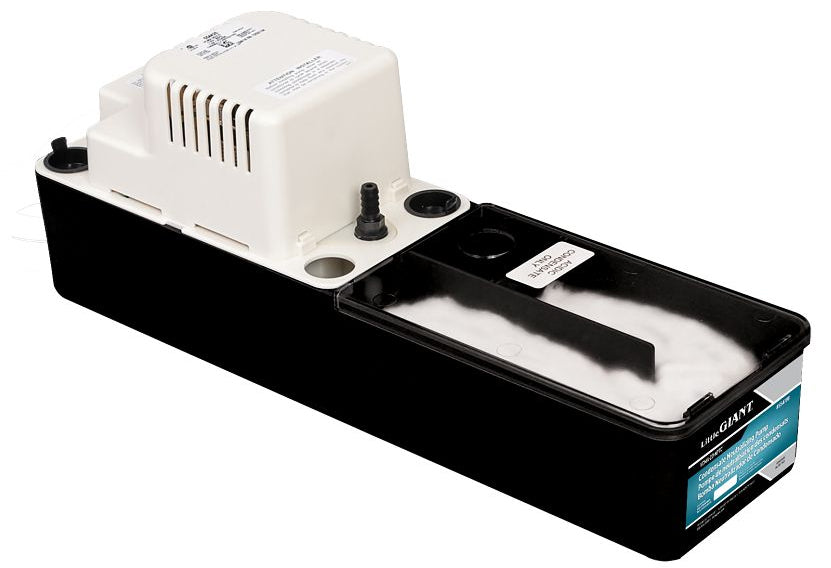

The LITTLE GIANT 554700 VCMA-20-NPTC is an all-in-one condensate pump and neutralizer designed to protect plumbing systems from acidic condensate. This unit combines the pumping power of the Little Giant VCMA-20ULS with an integrated condensate neutralizer, treating acidic condensate before it enters residential or commercial plumbing systems. It accommodates up to 500,000 BTUs of appliance input.

• Features a 1/30 hp high-performance pump.
• Includes a neutralizing chamber with a clear cover for easy inspection.
• Offers automatic start and stop operation.

Product Highlights

This condensate pump is designed to collect and remove condensation from air conditioning, refrigeration, and dehumidification equipment, as well as oil and gas-fired condensing furnaces and boilers.

Product Information

Standard Information

• Brand: LITTLE GIANT
• Manufacturer Part Number: 554700 VCMA-20-NPTC

Technical Specifications

• Max Flow (GPM): 1.33
• Max Flow (GPH): 80
• Amperage: 1.5
• Capacity (BTU): 500000
• Horse Power: 1/30
• Max Head (Ft): 20
• Voltage: 115V
• Cord Length: 6'
• Dimensions: H 7 in, W 5 in, D 19 in
• Product Type: Pump
